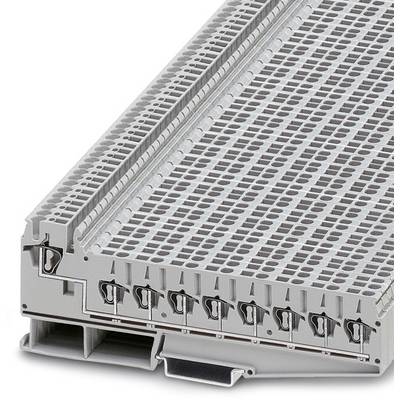

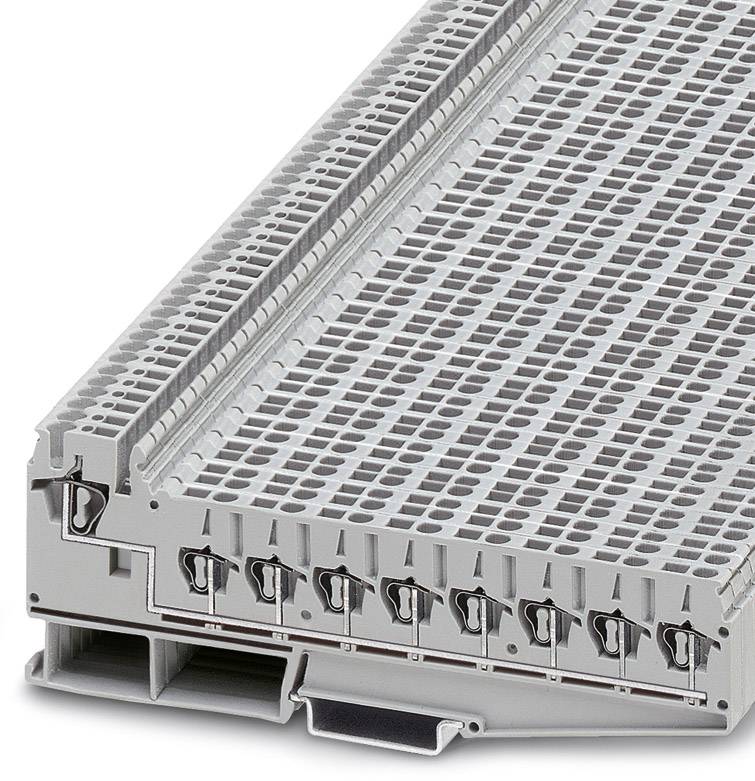

Potential distributors ZPV 1,5/2,5 (8/1) 3031047 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Potential distributor
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 13.26 / piece)
€ 663.03
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Potential distributor
- Connection
Pull spring
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3031047
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ZPV 1,5/2,5 (8/1)
- Dim
(L x W x H) 141 x 5.2 x 51 mm
- Width
5.2 mm
- Height
51 mm
- Length
141 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565363 Potential distributors ZPV 1,5/2,5 (8/1) 3031047 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565363 Potential distributors ZPV 1,5/2,5 (8/1) 3031047 Phoenix Contact
Description
Potential distributors, Nom. voltage: 500 V, Nominal current: 24 A, Cross section: 0.2 mm² - 4 mm², AWG: 12 - 24, Connection type: Spring-cage connection, Width: 5.2 mm, Length: 141 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
