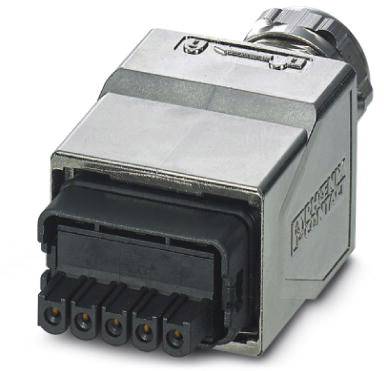

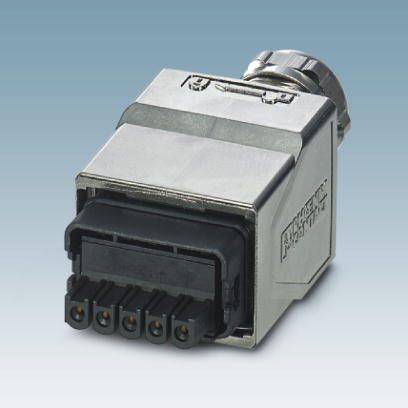

Power connector 1421783 CUC-PPC-C2ZNI-SX/24FKP5 Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Power connector
Connector type
Push-pull latch
AWG
13
Connection
Jack connector
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -40 °C ... 85 °C
- Pollution level 3
- Rated voltage (II/2) 630 V.
- Rated surge voltage (II/2) 4 kV
- Rated current 16 A
- Flammability class according to UL 94: V0
- Material contact surface: Gold over nickel
- Packaging type
Piece
- Product type
Power connector
- Connector type
Push-pull latch
13
- Connection
Jack connector
- Connector cross section
2.5 mm²
- Rated voltage
24 V
- Test current
16 A
- Case material
Diecast zinc

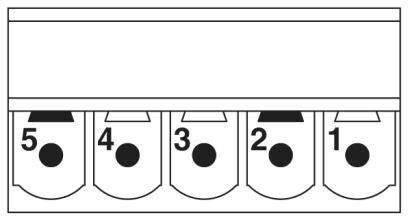

- Total no. of pins
5
- Manufacturer part #
1421783
- Content
1 pc(s)
- Contact material
Copper alloy

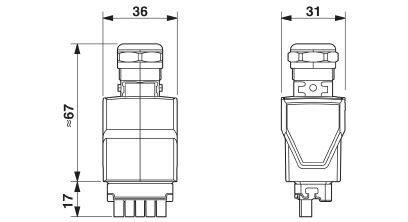

- Dimensions
31 mm. 36 mm. 67 mm mm
- Number of pins
5
- RoHS-compliant
Yes
IP65/67
- Type
CUC-PPC-C2ZNI-SX/24FKP5
- Seal
Push-pull
- Leading contact (PE)
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137387 Power connector 1421783 CUC-PPC-C2ZNI-SX/24FKP5 Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2137387 Power connector 1421783 CUC-PPC-C2ZNI-SX/24FKP5 Phoenix Contact Content: 1 pc(s)
Description
One-piece housing.
