Power meter 0292070 Monacor CAT-1TEST Networks
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

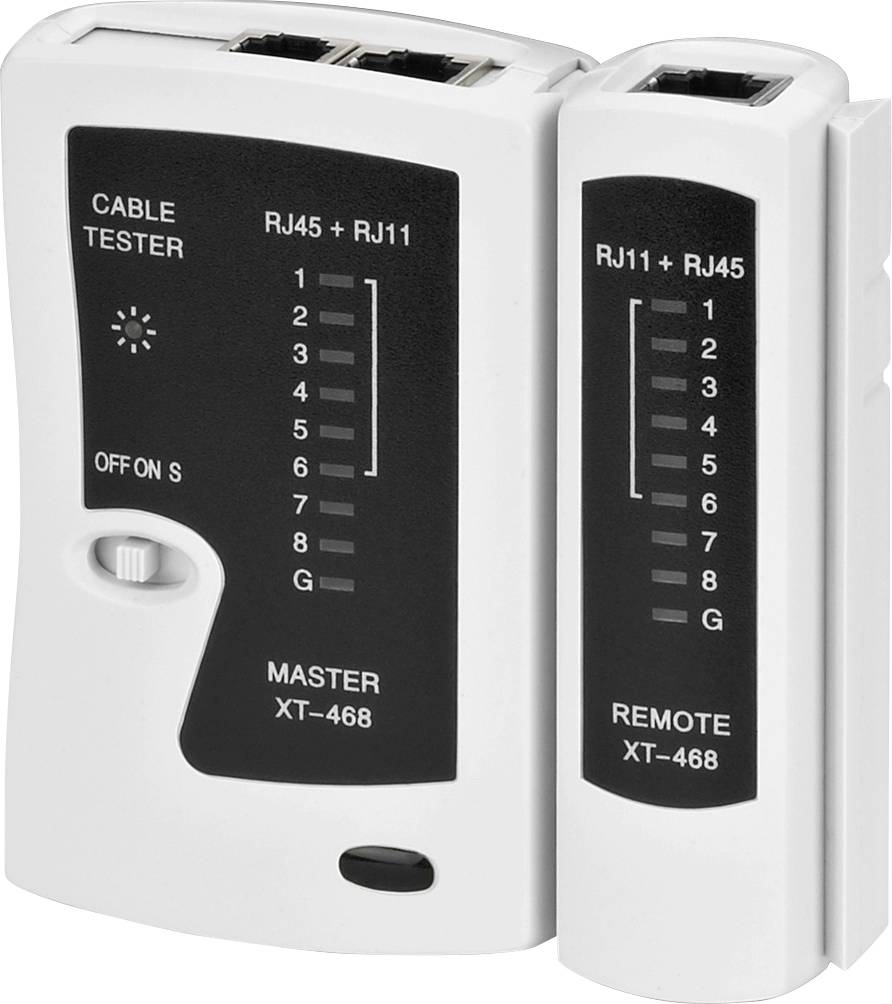

CAT-1TEST cable tester
Technical specifications
- Net weight: 0.132 kg
- Ass. Operating temperature 0-40 °C
- Weight: 132 g
- Gross weight: 0.166 kg
- Power supply 9 V block battery
- RJ45, RJ11 connections
- Type: Cable testers
- Suitable for CAT-5, CAT 6 and ISDN network cables
- Type: Continuity test of network cables
- Product type
Power meter
- Function
Continuity
- Display
LED
- Optical display
Yes
- Test sockets
RJ45
- Weight
132 g
- Range
Networks
- Type
CAT-1TEST
Documents & Downloads
Datasheet
Datasheet 3340644 Power meter 0292070 Monacor CAT-1TEST Networks
User & Safety Instructions
User & Safety Instructions 3340644 Power meter 0292070 Monacor CAT-1TEST Networks
Description
Cable checker
For continuity testing of CAT-5, CAT-6 and ISDN network cables
Connection test with LED display for 8 individual wires and shielding Detection of continuity, incorrect configuration, open circuit, short circuit, crossover cable and earthing connection Compatible with the following modular plugs: RJ45 (8P8C), RJ12 (6P6C), RJ11 (6P4C, 6P2C) Supported network standards: Token ring, 10Base-T, 10Base-T2, 285A, TIA568A/568B Separate receiver for especially long and complex laid cable main unit and separate receiver can be fastened together via a side guide rail Power supply via 9 V battery pack (not included)Delivery with protective bag
This text is machine translated.
For continuity testing of CAT-5, CAT-6 and ISDN network cables
Connection test with LED display for 8 individual wires and shielding Detection of continuity, incorrect configuration, open circuit, short circuit, crossover cable and earthing connection Compatible with the following modular plugs: RJ45 (8P8C), RJ12 (6P6C), RJ11 (6P4C, 6P2C) Supported network standards: Token ring, 10Base-T, 10Base-T2, 285A, TIA568A/568B Separate receiver for especially long and complex laid cable main unit and separate receiver can be fastened together via a side guide rail Power supply via 9 V battery pack (not included)Delivery with protective bag
This text is machine translated.
Features
- Type: Cable testers
- Type: Continuity test of network cables
- Suitable for CAT-5-
- CAT 6 and ISDN network cables
- Power supply 9 V block battery
- Ass. Operating temperature 0-40 °C
- Weight: 132 g
- RJ45 connections
- RJ11
- Packing: 1
- Packaging dimensions (W x H x L) 0.11 x 0.185 x 0.035 m
- Gross weight: 0.166 kg
- Net weight: 0.132 kg
