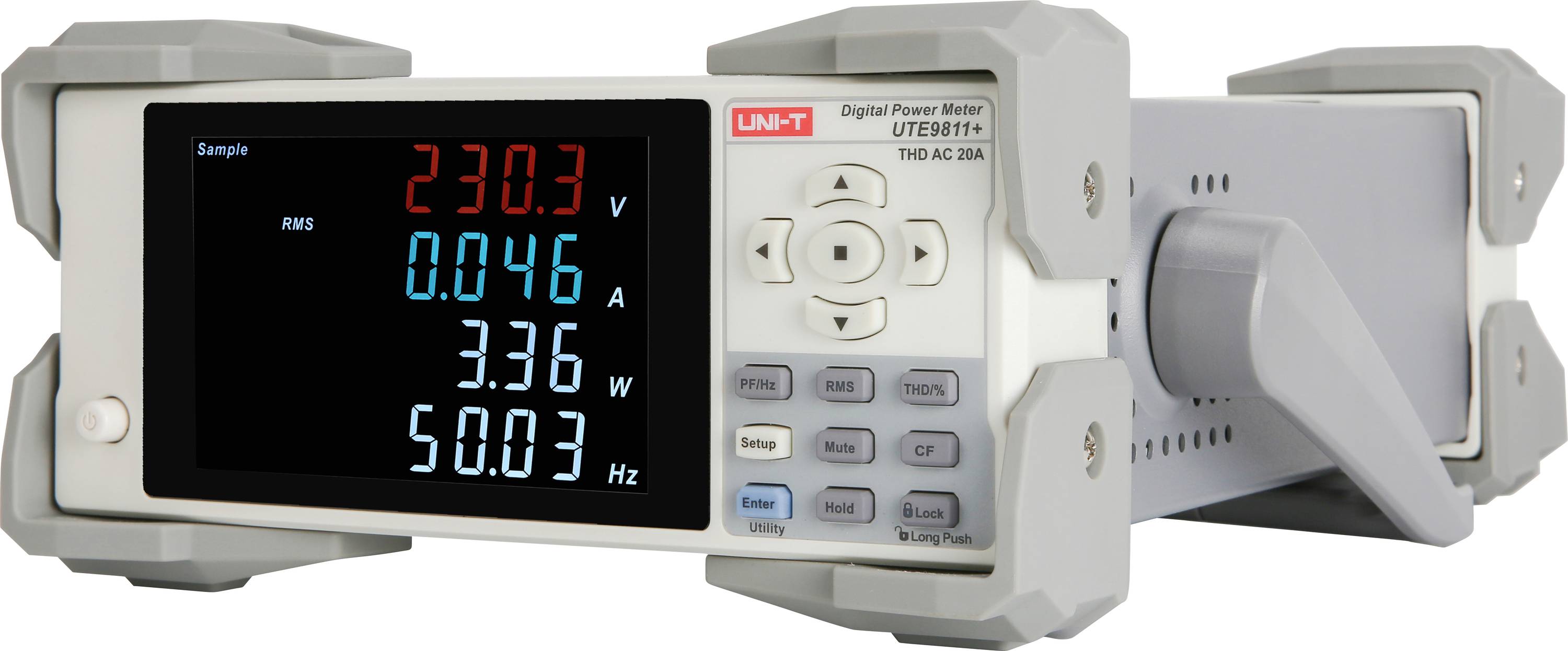

Power meter 182700700012X Uni-T UTE9811+
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T UTE9811+ 3.0V~600V，5mA~20.0A，40Hz~70Hz，1~50times harmonic，Four-way display
Technical specifications
- Product type
Power meter
- Acoustic signal
Yes
- Display
LCD
- Optical display
Yes
- Test sockets
RS232
- Dim
(L x W x H) 214 x 340 x 88 mm
- Weight
3500 g
- Width
340 mm
- Height
88 mm
- Length
214 mm
- Type
UTE9811+
Documents & Downloads
Datasheet
Datasheet 3415561 Power meter 182700700012X Uni-T UTE9811+
User & Safety Instructions
User & Safety Instructions 3415561 Power meter 182700700012X Uni-T UTE9811+
User & Safety Instructions 3415561 Power meter 182700700012X Uni-T UTE9811+
Description
The UTE9811+ is an intelligent and versatile electrical measuring device, which enables a precise analysis of voltage, current, power, power factor and frequency. Its high accuracy, reliable measurement results and easy operation make it Ideal for production, quality assurance, measurement and research. With RS-232/RS-485 interfaces it can be easily integrated into existing systems, while the clear VA-LCD ensures a comfortable reading. With its compact design and stable power, the UTE9811+ offers an efficient solution for demanding electrical measurements.
This text is machine translated.
This text is machine translated.
Features
- - Four-window display: More readings are displayed simultaneously on the screen, eliminating the need for frequent switching.
- - 5-digit display: Higher display accuracy for more accurate measurement results.
- - Harmonious analysis: The UTE9811+ uses the PLL synchronization method (phase-locked loop) and allows harmonious analysis up to 50. Order.
- - True RMS measurement: The UTE9802+ supports true RMS measurements and can measure AC, DC and AC+DC.
- - Remote control: Equipped with RS232 and RS485 interfaces for connection with PC or PLC to remote control. Supports Modbus and SCPI protocols for reliable automation in a variety of applications.
- - Average value function: Provides for more stable measurement values and is particularly suitable for loads or power sources with large fluctuations.
- - Adjustable data display update rate: Can be adapted to specific test requirements to improve the efficiency of series tests.
- - Easy integration: Optional test leads enable quick and easy setup of the measurement environment.
- - Upper and lower limit alarm: Adjustable current and power alarm parameters with audible and visual alarm indicators and an adjustable alarm delay.
Scope of delivery
- - UTE9811+ Digital Power Meter
- - Mains cable
- - RS232 serial cable (male-to-female)
- - Calibration certificate
- - Multilingual safety instructions
- - Brief instructions
