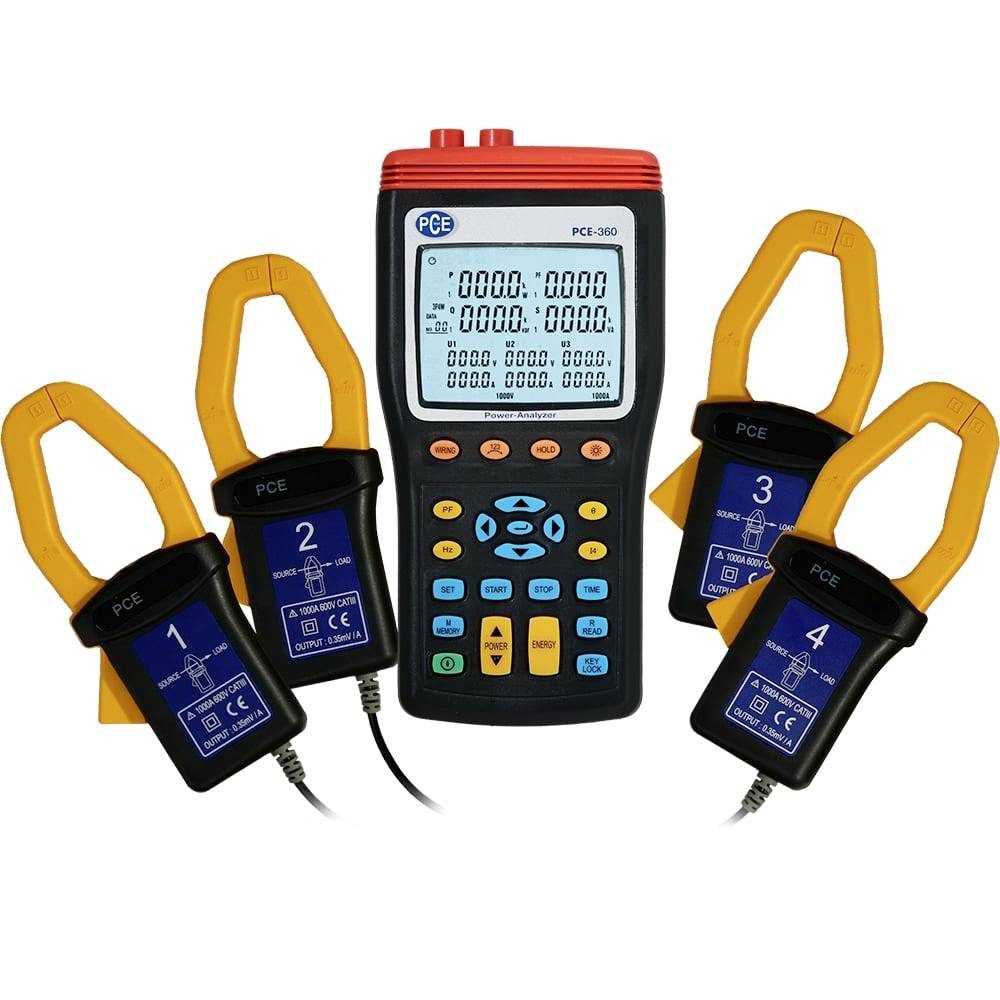

PCE-360 power analyzer with four clamp sensors, showing a handheld meter and numbered current clamps for measuring electrical circuits.

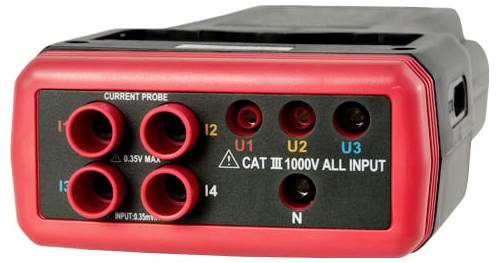

Front panel of a CAT III 1000V electrical test device with labeled input ports for current probe, I1, I2, I4, U1, U2, U3, and N.

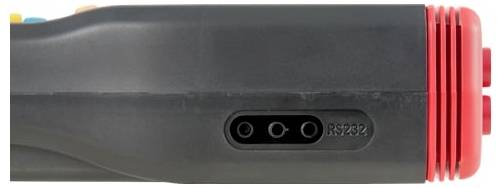

Close-up of a black handheld device with a red ribbed end and a labeled RS232 port connection panel.

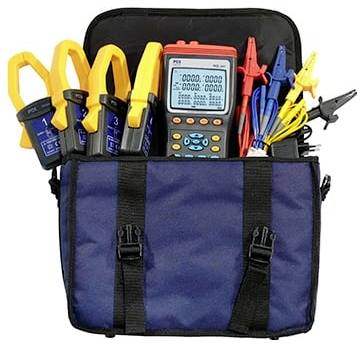

Open tool bag with electrical test equipment, including clamp meters, a digital multimeter, and colored test leads.<br>

1/4

Datasheet (PDF)

Unavailable

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Power meter PCE-360

Technical specifications

Voltage measurement 50 ... 600.0 V true RMS Accuracy ±1.5 % of the measured value Resolution +10 digits / 0.1 V Current measurement 3 ... 999.9 A real effective value Accuracy ±1.5 % of the measured value Resolution +15 digit / 0.1 A Active power P 150 W... 999.9 kW Accuracy ±1.5 % of the measured value Resolution +20 digit / 0.1 KW Apparent power S 150 VA... 999.9 kVA Accuracy ±1.5 % of the measured value Resolution +20 digit / 0.1 KVA Reactive power Q 150 VAR... 999.9 kVar Accuracy ±1.5 % of the measured value Resolution +20 digit / 0.1 kVAr Power factor PF 0 ... 1 Accuracy ± 0.06 Resolution 0.001 Phase angle -90° .... +90° Accuracy ± 3° Resolution 0.1 Frequency measurement (U > 50V) 40 ... 100 Hz Accuracy ±1 % of the measured value +2 digits Resolution 0.1 Hz Rotating field detection (UL > 50V) yes Work in effect 0 ... 9999 MWh Accuracy ±1.5 % of the measured value Resolution +20 digits Apparent work 0 ... 9999 MVAh Accuracy ±1.5 % of the measured value Resolution +20 digits Reactive power 0 ... 9999 MVarh Accuracy ±1.5 % of the measured value Resolution +20 digits max. Clamp-on ammeter opening 40 mm Data storage 50 records for manual storage 4 GB SD card for data logging (99 storage places á 350,000 data records) Serial interface via USB cable Display Illuminated LC-display Supply 8 x 1.5 V type AA (mignon) Dimensions 235 x 117 x 54 mm Weight 730 g. Ambient conditions Max. 85 % relative humidity / 0 ... +40 °C). Protection class / standardization IP 30 / IEC 61 010, 600 V / CAT cat III.

Product type: Power meter

Display: LCD

Optical display: Yes

Test sockets: RS232

Dim: (L x W x H) 235 x 117 x 54 mm

: Manufacturer's standards (no certificate)

Weight: 730 g

Features: Data export mode

Width: 117 mm

Height: 54 mm

Length: 235 mm

Depth: 54 mm

Type: PCE-360

Interfaces: EU socket
RS232

Measurement type: 3-phase

Features: Data logger
Clamp meter
Power testing
Graphic display

Documents & Downloads

Datasheet

Datasheet 2452258 Power meter PCE-360 PCE Instruments PCE-360

User & Safety Instructions

User & Safety Instructions 2452258 Power meter PCE-360 PCE Instruments PCE-360

Description

Power meter PCE-360 for power and energy meter (real-time) / data memory / PC interface / software the three-phase - ammeter (power analyzer) PCE-360 is used for one- or three-phase power measurement. The large display of the ammeter shows up to 10 values simultaneously. 4 clamp-on ammeters can be adapted at the same time. In manual mode, the power meter can store 99 measured values directly. In the data logger mode up to 20000 measured values can be stored. This 3-phase power meter is therefore ideal for long-term analysis. The measured values collected in the device can be transferred to a PC and evaluated at will. Everything was included in the delivery, which you need for measurement and evaluation (also software and data cable). The power meter is supplied factory calibrated, but can also be optionally laboratory calibrated and certified according to ISO (for initial orders or also for recalibration, e.g. annually).
