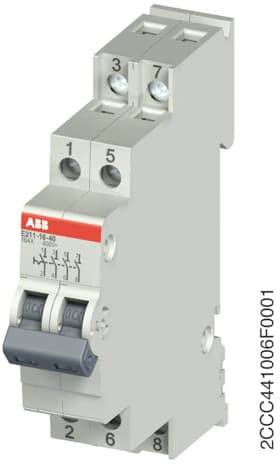

Power off Grey 3-pin 16 A 3 makers ABB 2CCA703010R0001
EAN:
Part number:
Item no:
Product type
Power off
Number of pins
3
Nominal current - rounded value
16 A
Contact type
3 makers
Operating voltage
24
Datasheet (PDF)
Technical specifications
- Color of the dome: Gray
- Lamp base: -
- Voltage type: AC
- Max. Lamp power: -
- Number of contacts as changer: 0
- Width in division units: 1
- Installation depth 68
- Rated current 16
- Rated breaking capacity: -
- Min Rated voltage 24
- Forced separation (according to DIN VDE 0113): Yes
- Protection class (IP): IP20
- Number of poles: 3
- Light bulb: -
- With signal lamp: No.
- Short circuit resistance (ICW): 3
- Switching function: Off switch
- Number of contacts as NC contact: 0
- Number of contacts as NO contact: 3
- Rated voltage 400
- Product type
Power off
- Contact type
3 makers
- Operating voltage
24
- Factory colour
Grey
- Number of pins
3
- Nominal current
16 A
- Nominal current - rounded value
16 A
- No. of partitions
1
- Depth
68 mm
AC
FALSE
68 mm
16 A
415 V
3
1
IP20
0
3
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2331555 Power off Grey 3-pin 16 A 3 makers ABB 2CCA703010R0001
User & Safety Instructions
User & Safety Instructions 2331555 Power off Grey 3-pin 16 A 3 makers ABB 2CCA703010R0001
Description
These devices are specially designed for switching loads and signaling electrical conditions in a low-voltage switchgear. Depending on the contact layout, they are available as half or complete modules. Devices with indicator lights have an LED that ensures optimum light intensity with very low consumption. For example, such devices are used to switch indicators or other electrical components (such as fans, air conditioning systems).
