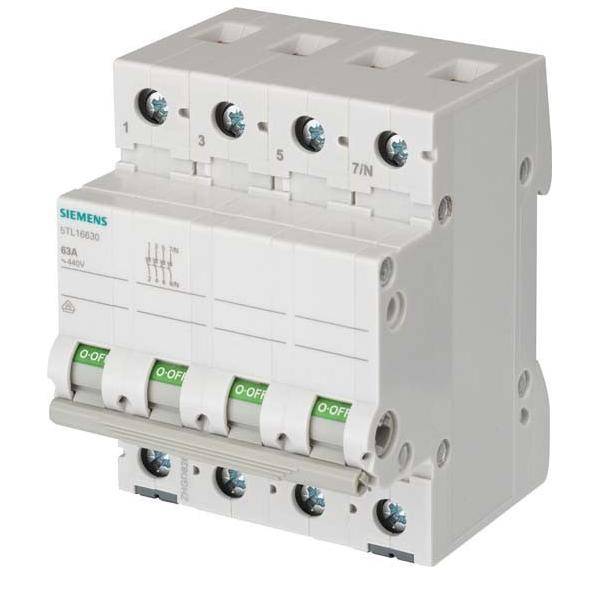

Image similar

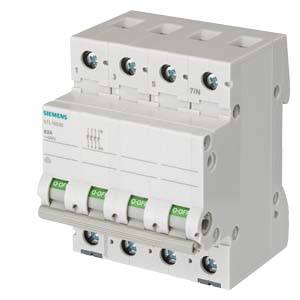

Image similar
Power off Grey 80 A 3 makers Conductor type = N Siemens 5TL16800
EAN:
Part number:
Item no:
Product type
Power off
Number of pins
3
Nominal current - rounded value
80 A
Contact type
3 makers
Operating voltage
440 V
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- Cutout depth: 70 mm
- Net weight: 440 g
- Product type
Power off
- Contact type
3 makers
- Operating voltage
440 V
- Factory colour
Grey
- Number of pins
3
- Dim
(L x W x H) 70 x 72 x 89.8 mm
- Nominal current
80 A
- Nominal current - rounded value
80 A
- No. of partitions
4
- Conductor type
N
- Width
72 mm
- Height
89.8 mm
- Length
70 mm
- Depth
74.5 mm
AC
Other
FALSE
70 mm
80 A
440 V
3
Other
10 kA
0.24 A
4
Other
Other
Other
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1753993 Power off Grey 80 A 3 makers Conductor type = N Siemens 5TL16800
User & Safety Instructions
User & Safety Instructions 1753993 Power off Grey 80 A 3 makers Conductor type = N Siemens 5TL16800
Description
SITOP PSU8200 24 V/10 A Stabilized power supply input: 120/230 V AC, output: DC 24 V/10 A The SITOP modular single-phase power supplies are technology power supplies for demanding solutions and provide maximum functionality for use in complex systems and machines. The wide-range input enables connection to any power network in the world and ensures high reliability even in the case of large voltage fluctuations. The Power Boost function supplies up to three times the nominal current over short durations. If overload occurs, there is a choice between constant current or latching disconnection. The very high degree of efficiency minimizes energy consumption and heat generation in the control cabinet, and the compact metal enclosure also saves space. To further increase 24 V availability, the SITOP modular power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
