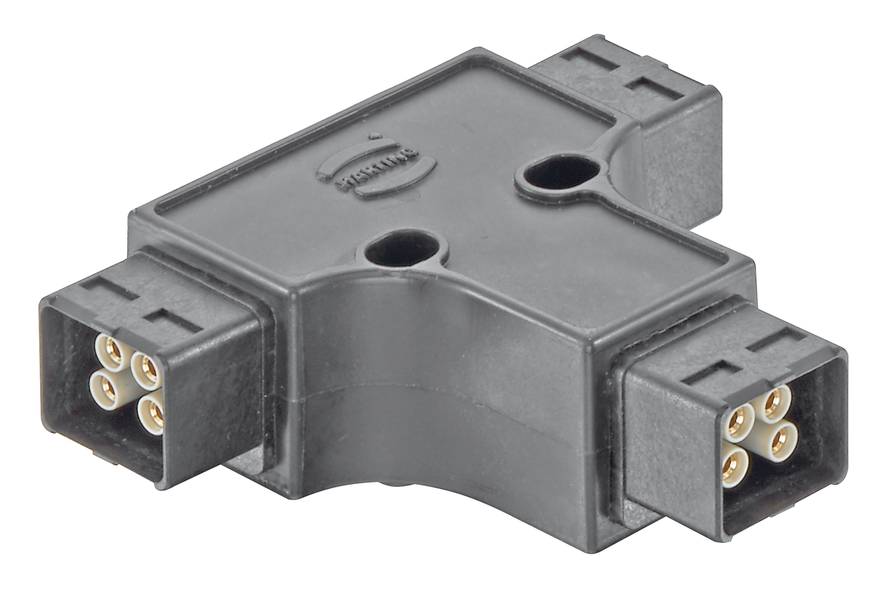

Power splitter 09120084770 HARTING Content: 1 pc(s) Power splitter
EAN:
Part number:
Item no:
Product type
Power splitter
Number of pins
4
Type
09 12 008 4770
Manufacturer part #
09120084770
Total no. of pins
4
Datasheet (PDF)
Technical specifications
- Component: Power distributor
- Number of contacts: 4
- Rated current 12 A
- Insulation resistance >108 Ω
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 750
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 28.5 g
- Rated voltage: 48 V
- Dimensioning surge voltage: 1.5 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Description: With 3x Harting PushPull (V4) Power;Add-on housing
- Protection class according to IEC 60529:IP65;IP67
- Housing series: HAN-Power® T.
- Material housing: Polyamide (PA)
- Colour of housing: RAL 9005 (jet black)
- Type
09 12 008 4770
- Product type
Power splitter
- Manufacturer part #
09120084770
- Number of pins
4
- Total no. of pins
4
- Content
1 pc(s)
Black
FALSE
Plastic
IP65
Documents & Downloads
Datasheet
Datasheet 3008058 Power splitter 09120084770 HARTING Content: 1 pc(s) Power splitter
Datasheet 3008058 Power splitter 09120084770 HARTING Content: 1 pc(s) Power splitter
User & Safety Instructions
User & Safety Instructions 3008058 Power splitter 09120084770 HARTING Content: 1 pc(s) Power splitter
Description
Power distributor with 3x Harting PushPull (V4) Power, attachment housing, contacts: 4, material housing: Polyamide (PA), RAL 9005 (deep black)
