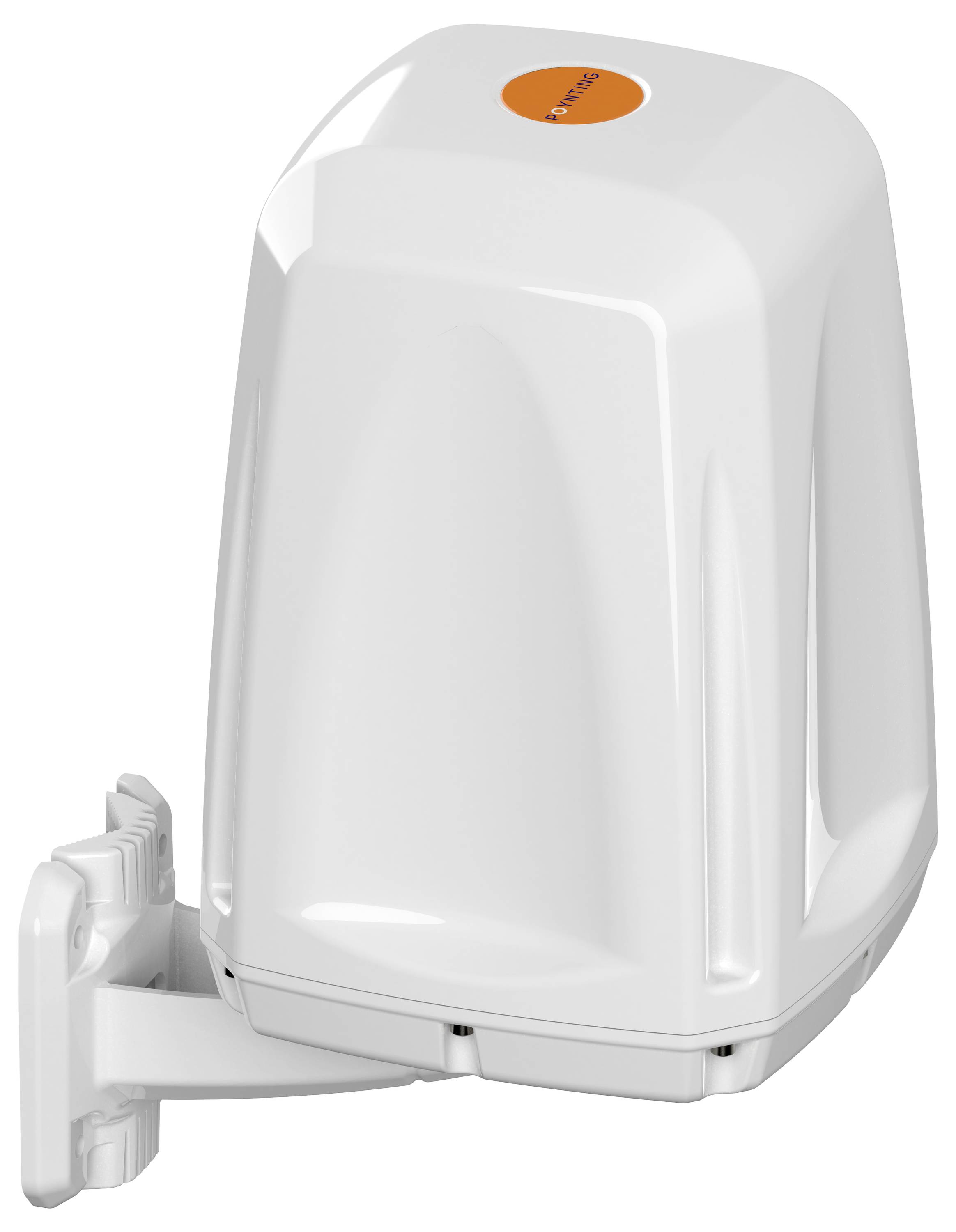

Poynting EPNT-4 network antenna Omni-directional antenna SMA 21 dBi

Highlights & Details

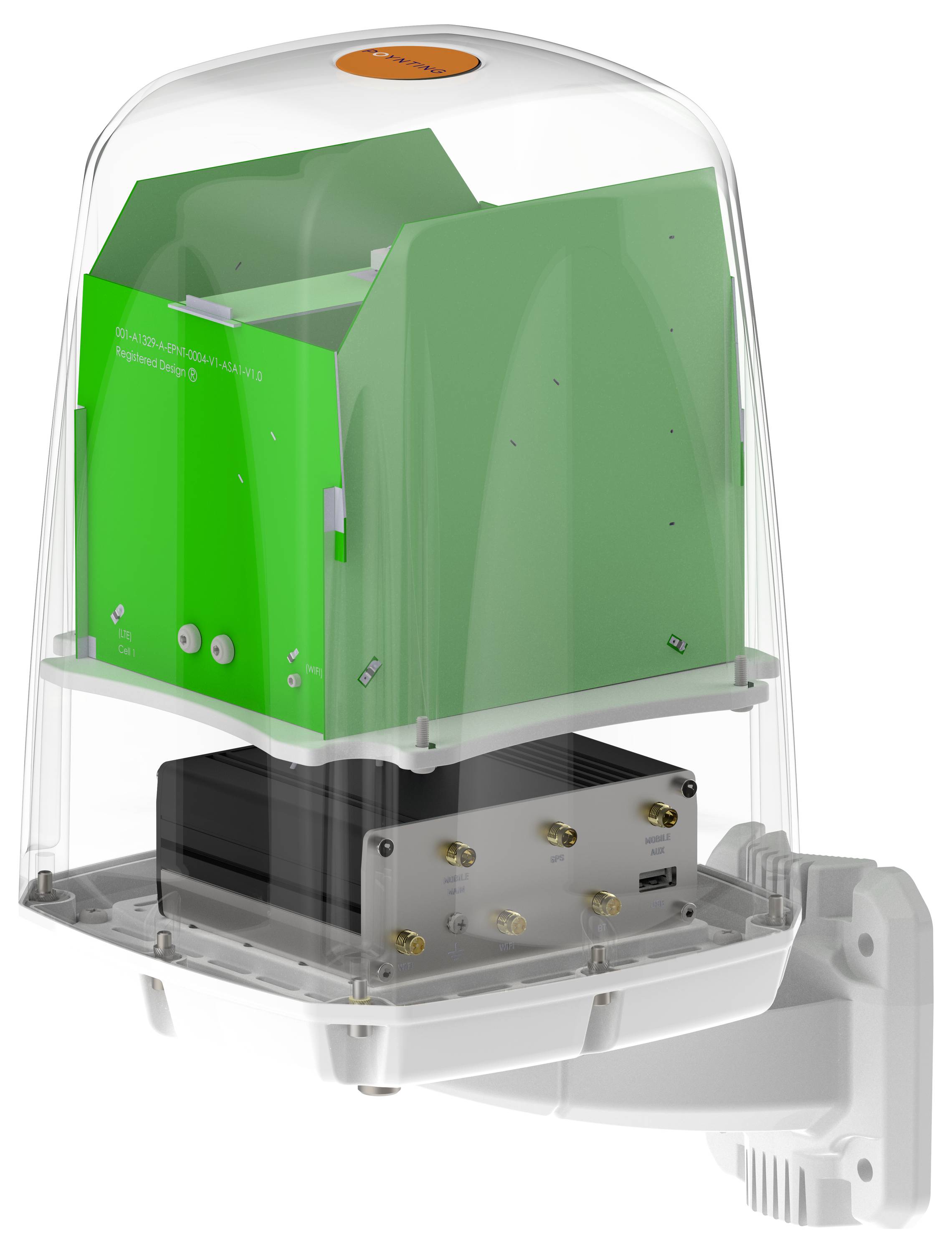

A complete solution that integrates high-performance antennas with your router in a single, rugged exterior housing to simplify installation
Minimal RF cable loss, since no lengthy RF cables to connect to your router, which improves the total power of the antenna
Broadband 5G/LTE antennas up to 4x4 MIMO
Backwards compatible with 2G/3G/4G technologies
2x2 or 4x4 MIMO WLAN-antennas for 2.4 GHz and 5 to 7.2 GHz
Available cutter size up to 140 x 120 x 50 mm³

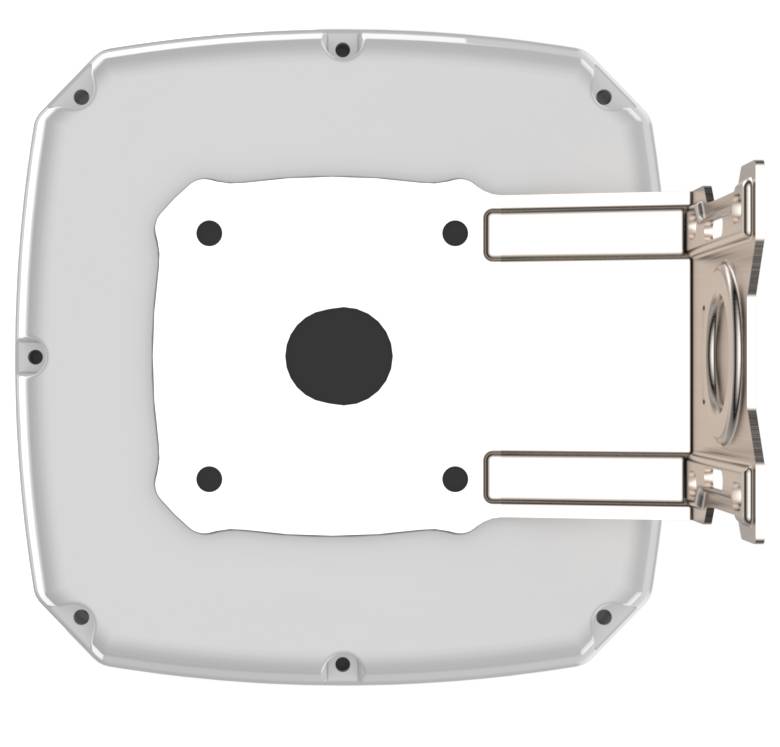

Holder made of stainless steel 316 for ship's applications included
Weather, dust and vandal-proof housing (IP67)

Technical specifications

0,617 - 4.2 GHz
Cable type RTK-031

Product type: LTE antenna

Gain: 21 dBi

Antenna socket: RP-SMA socket
SMA socket

Weight: 1.19 kg

Width: 238 mm

Height: 351 mm

Cable length: 0.15 m

Version: Cable

Factory colour: White

Depth: 182 mm

Impedance: 50 Ω

: IP67

Input voltage: 2.7 - 3.3 V

UKCA: yes

Operating temperature (T-T): -40 - 80 °C

Storage relative humidity (H-H): 5 - 95 %

Ultraviolet (UV) resistant: yes

Quantity per pack: 1 Stück(e)

Maximum cable loss with connectors: 0.71 dB

Survival wind speed: 220 km/h

Power handling: 10 W

Storage temperature (T-T): -40 - 80 °C

Package weight: 2.21 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3790027 Poynting EPNT-4 A-EPNT-0004-V1-17 LTE antenna 21 dBi

Description

X-polarized, omnidirectional, 5G/LTE and Wi-Fi CPE
POYNTING introduces the EPNT-4, an advanced omni-directional Customer Premises Equipment (CPE) solution that integrates multiple high-performance antennas in a single chassis. Designed for versatility, the EPNT-4 improves 5G/4G and WLAN performance, making it Ideal for reliable communications in demanding environments.

A comprehensive multi-antenna system: Features 4×4 5G/4G MIMO, 4×4 Wi-Fi MIMO and an additional GPS antenna for improved connectivity.
Wireless broadband coverage: Supports 617–4200 MHz, providing excellent amplification in key 5G/4G bands for superior multi-carrier aggregation (CA).
High performance WLAN antennas: Dual band operation at 2.4 GHz and 5–7.2 GHz with 2.2 dBi peak amplification for 4×4 MIMO connectivity.
Cross-polarized antenna elements: Improves signal reception and increases overall performance and data throughput.
Optimized for harsh environments: Completely saltwater-proof and resistant to corrosive chemicals thanks to UV-stable ASA radom material.
Robust and weatherproof design: Designed to withstand extreme conditions with the IP67 and IK10 protection classes to ensure longevity and vandal resistance.

The EPNT-4 is the ideal solution for robust, high-performance connectivity, providing seamless 5G/4G and Wi-Fi integration even in the most demanding environments.
