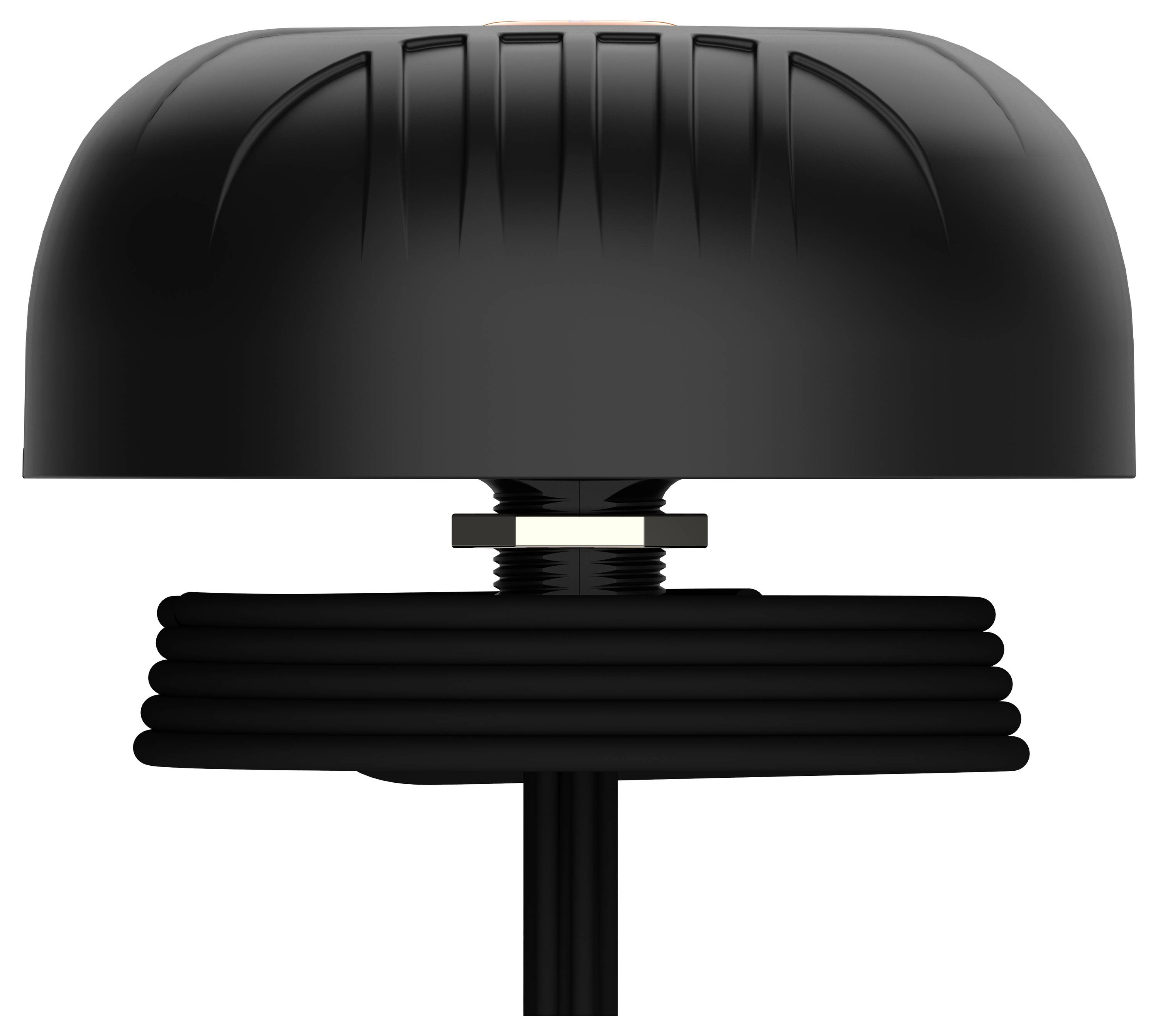

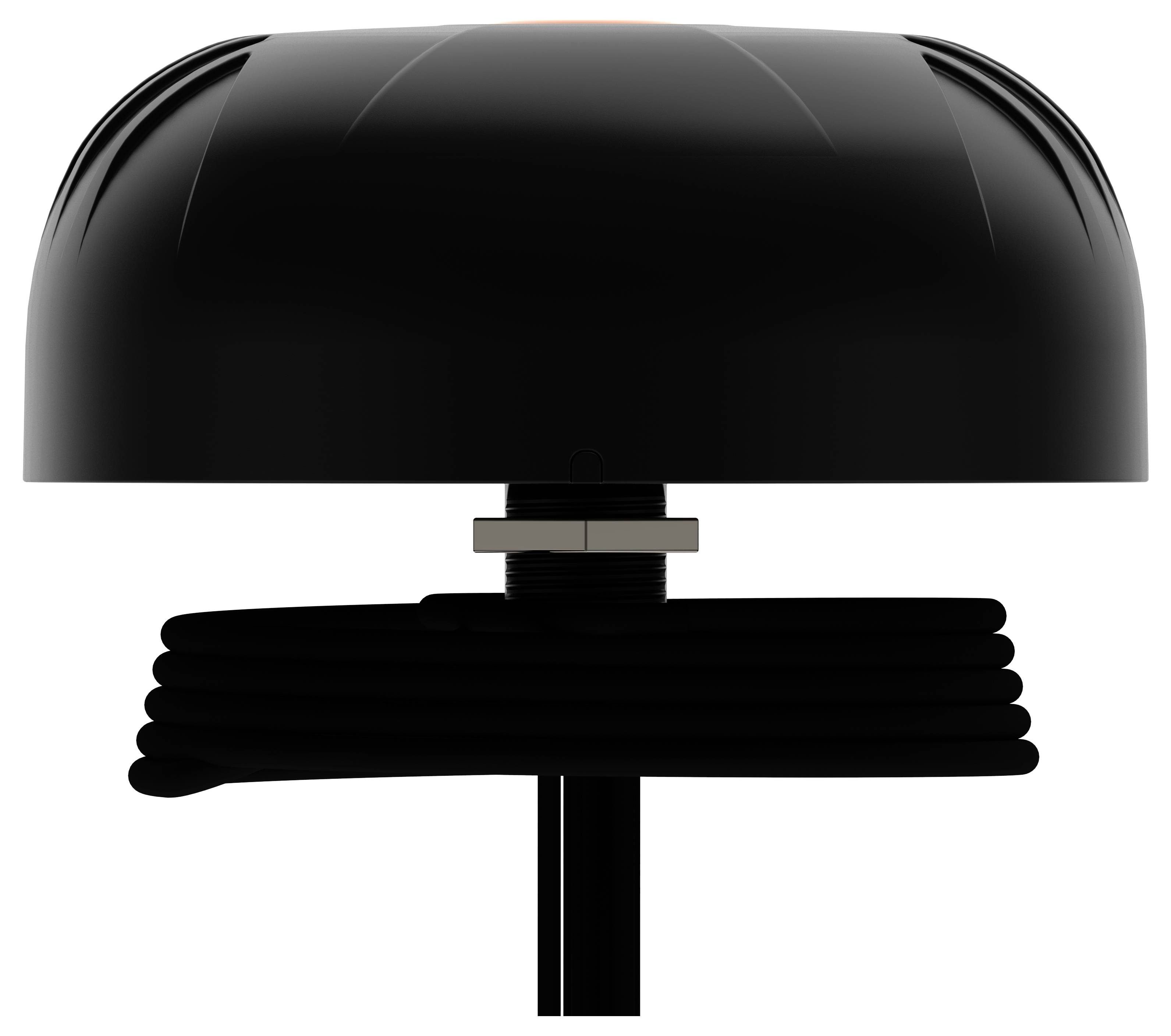

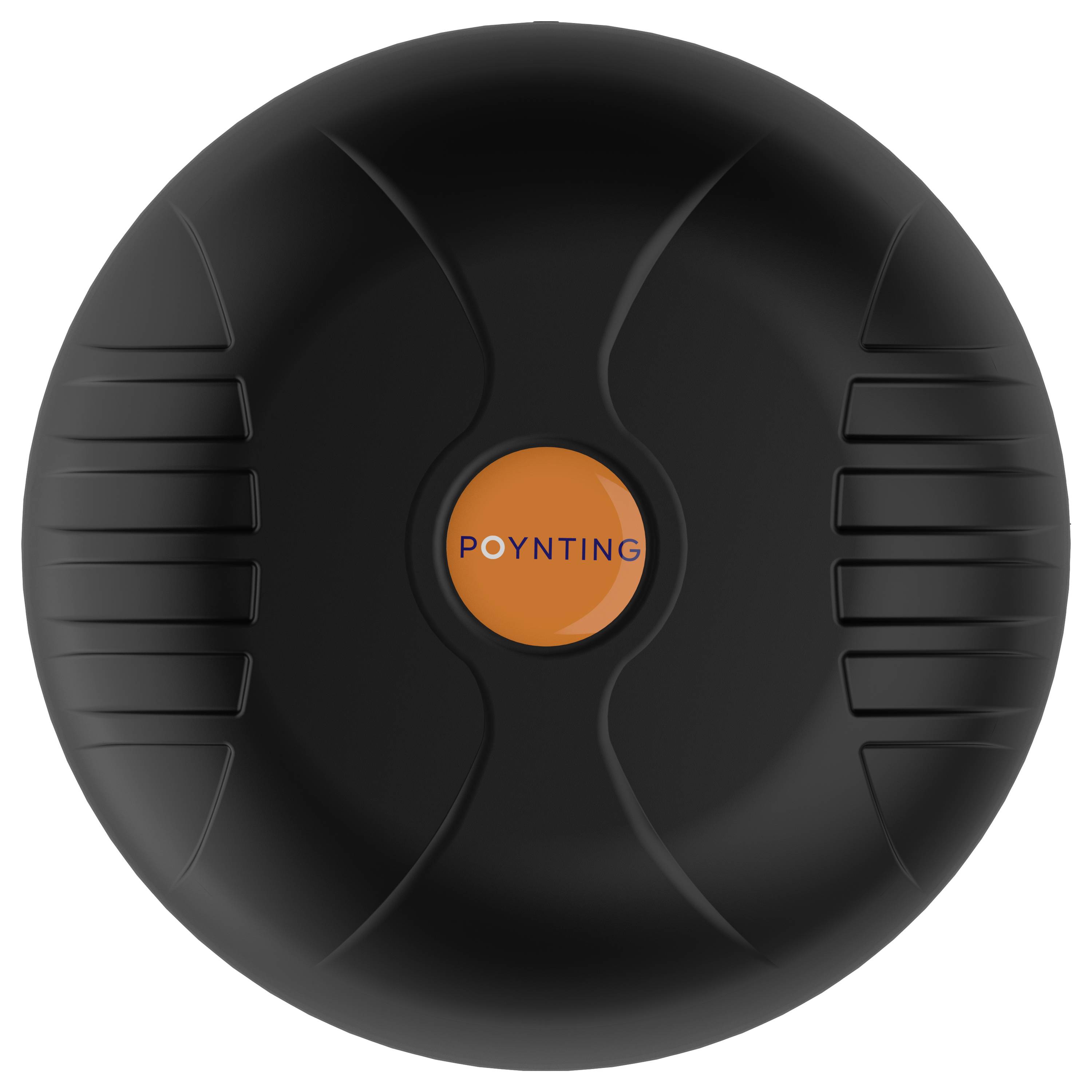

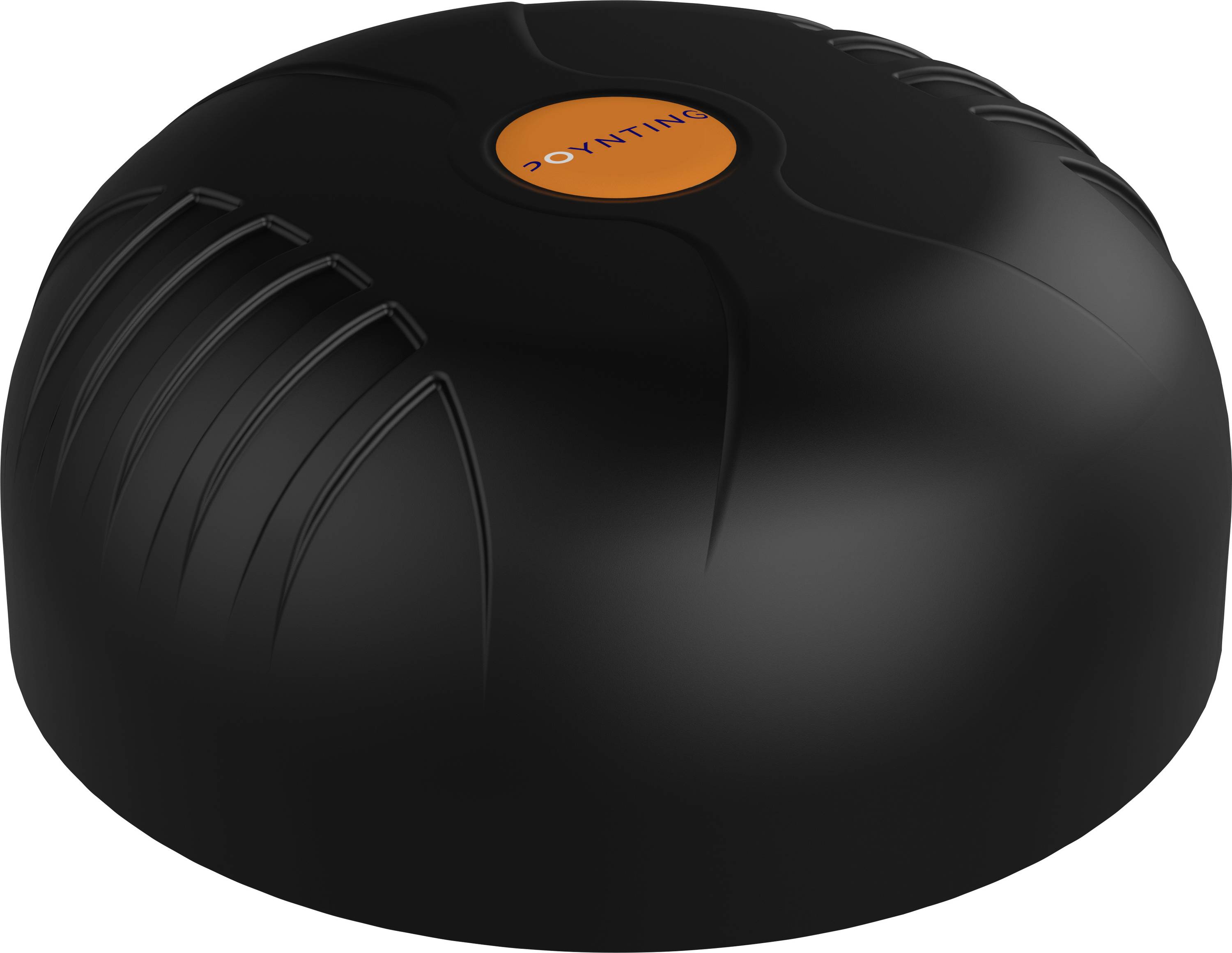

Poynting MIMO-4-15 A-MIMO-0004-V1-15-B LTE antenna 21 dBi
EAN:
Part number:
Item no:
Poynting A-MIMO-0004-V1-15-B network antenna MIMO-directional antenna SMA 21 dBi
Highlights & Details
- 5-in-1-high power multi-frequency car antenna
- Ultra-broad band coverage of 617 to 6000 MHz for mobile phones
- 2x2 MIMO LTE/5G, 2x2 MIMO WLAN and GPS/GLONASS
- Robust, weather-resistant antenna with IP69K protection
- Ideal for transport and use at sea

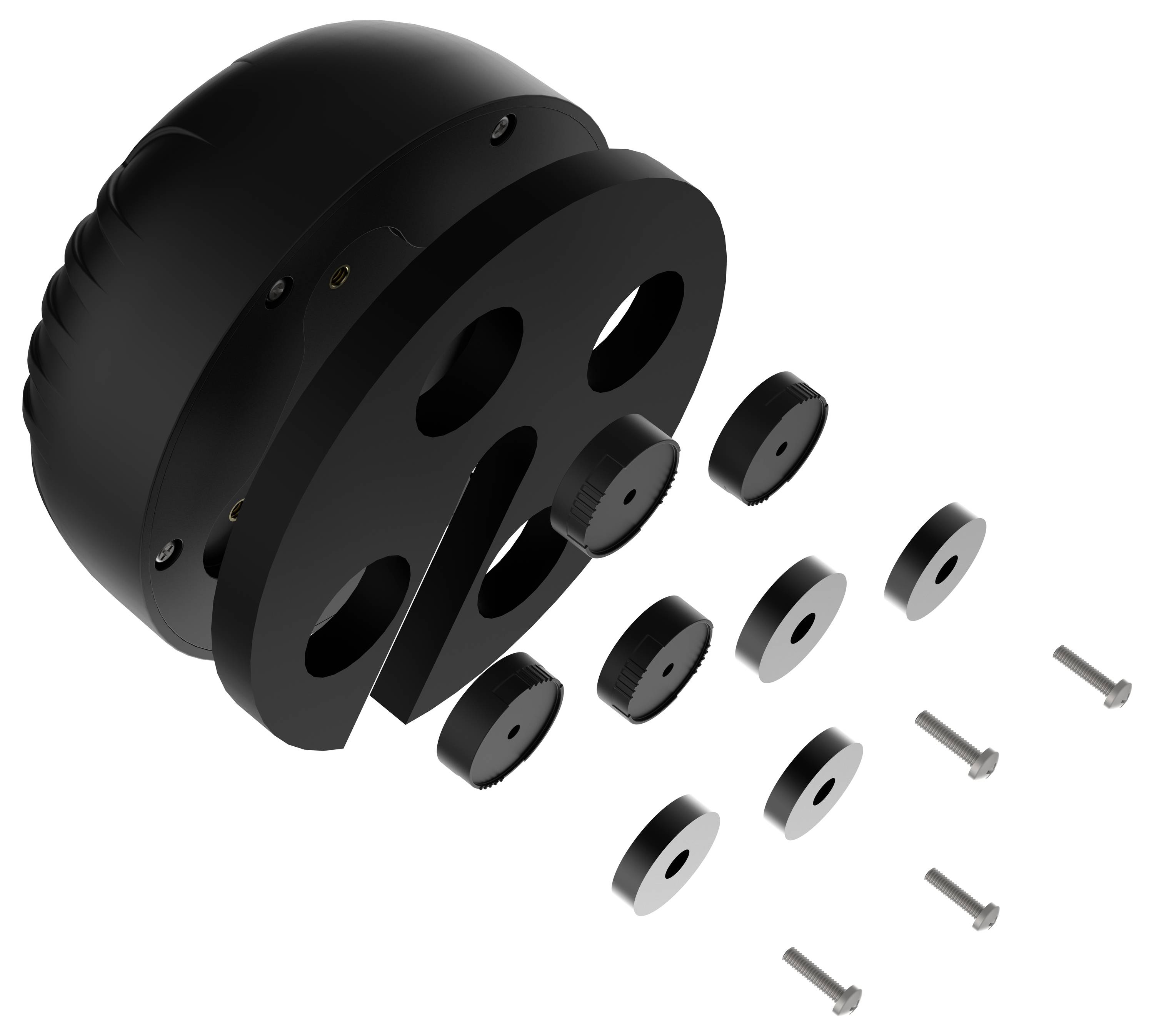

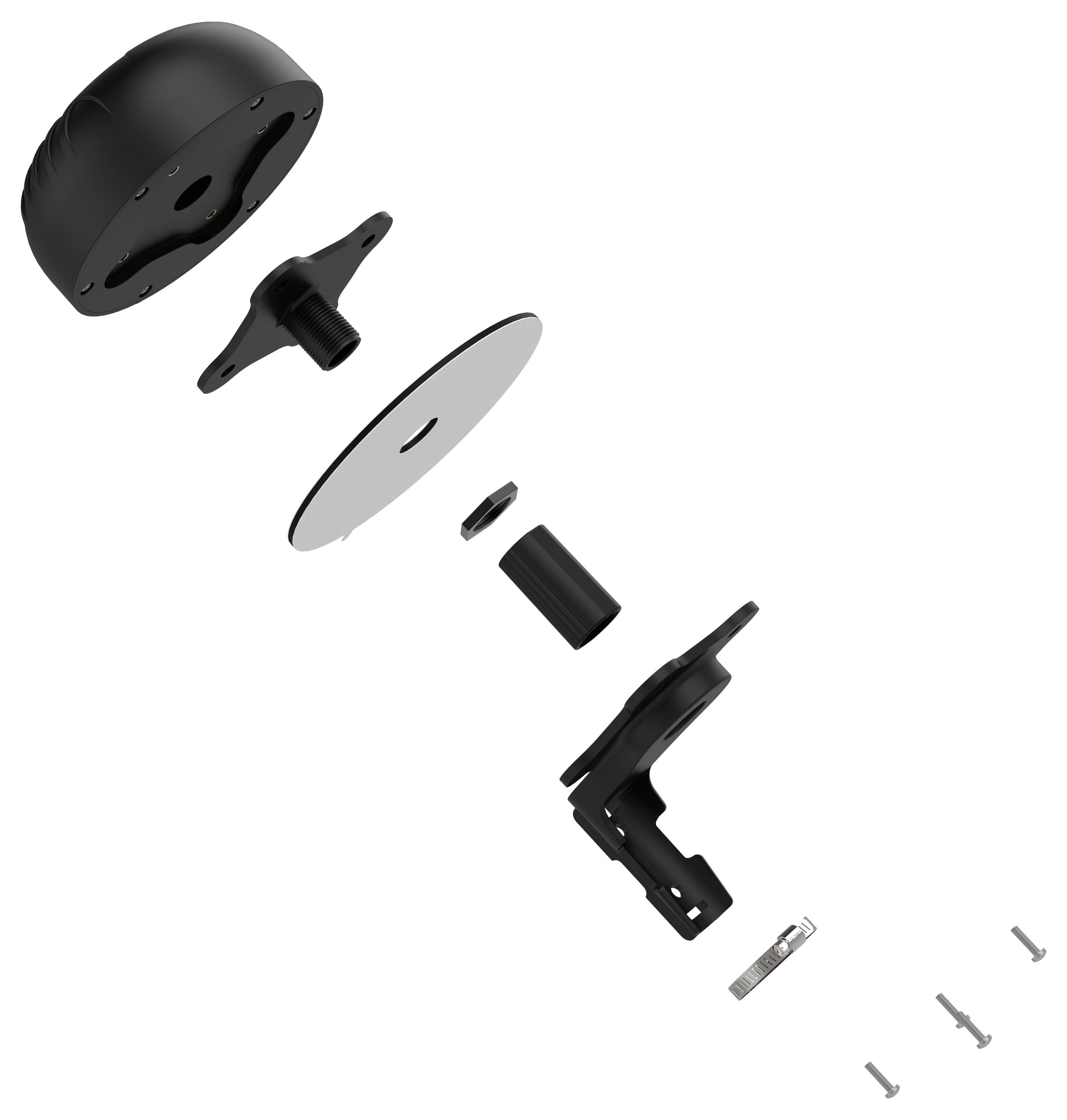

- Multiple mounting options for easy installation
Technical specifications
- Frequency range 0,617 – 7.2
- Cable Type RTK-031 - LTE, Wi-Fi & GPS
- Product type
LTE antenna
- Gain
21 dBi
- Antenna socket
SMA plug
- Weight
740 g
- Height
65 mm
- Cable length
2 m
- Factory colour
Black
- (Ø)
16 cm
- Impedance
50 Ω
IP69K
- Material (details)
Acrylonitrile Styrene (ASA)
- Input voltage
2.7 - 3.3 V
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Storage relative humidity (H-H)
5 - 95 %
- Power handling
10 W
- Storage temperature (T-T)
-40 - 80 °C
- Package weight
1.24 kg
- Power consumption (max)
50 W
Documents & Downloads
Datasheet
Datasheet 3790015 Poynting MIMO-4-15 A-MIMO-0004-V1-15-B LTE antenna 21 dBi
User & Safety Instructions
User & Safety Instructions 3790015 Poynting MIMO-4-15 A-MIMO-0004-V1-15-B LTE antenna 21 dBi
Description
5-in-1 antenna for transport and automotive
The MIMO-4-15 is a powerful 5-in-1 multi-frequency antenna in a single housing that offers two cellular MIMO antennas, two dual-band WLAN antennas and a GPS/GLONASS antenna. Developed for LTE/4G and emerging 5G networks, it supports a wide frequency range from 617 MHz to 6000 MHz, ensuring compatibility with different operators and future mobile phone technologies up to 6 GHz.
Ultra-wide mobile coverage: Supports frequencies from 617 MHz to 6 GHz, which cover LTE and 5G applications.
Advanced 2×2 Cellular MIMO technology improves the signal strength, pattern variety and omni-directional coverage.
Dual band 2×2 MIMO WLAN antennas: Two independent WLAN antennas support simultaneous operation at 2.4 GHz and 5–7.2 GHz for improved WLAN performance.
Integrated GPS/GLONASS antenna: Powerful active GPS system for accurate positioning.
Optimized for transport and use at sea: Designed to meet the high demands of commercial vehicles, shipbuilding and industrial applications.
Future-proof connectivity ensures long-term compatibility with evolving mobile, WLAN, and IoT applications.
Superior radiation output: Developed to achieve an optimum balance between omnidirectional characteristics, diversity and signal propagation.
MIMO-4-15 is the ideal solution for applications in the fields of transport, shipping, M2M and IoT and offers extraordinary power, durability and future-proof connectivity via multiple frequency bands.
