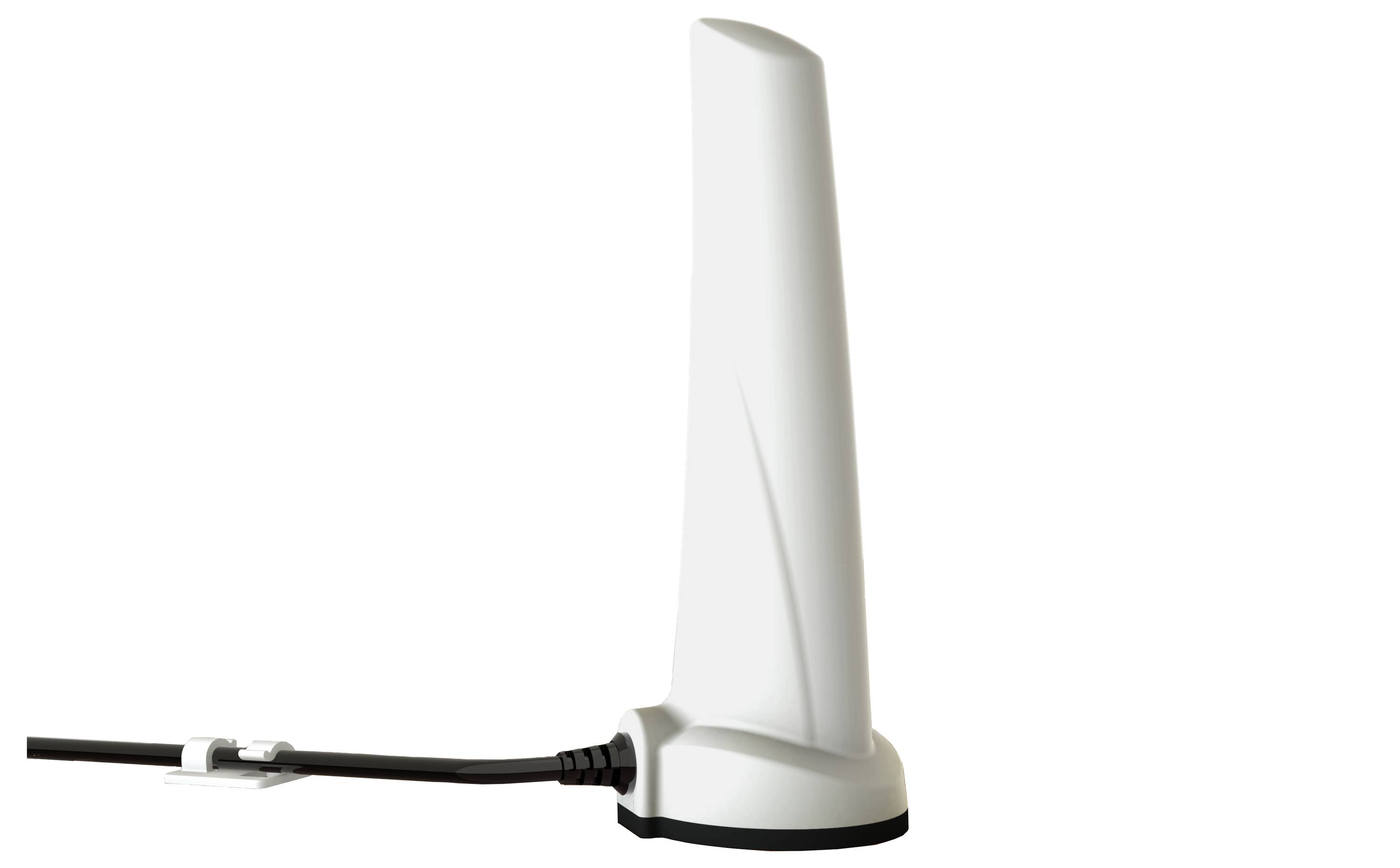

Poynting OMNI-280 A-OMNI-0280-02-V1 LTE antenna 3 dBi
EAN:
Part number:
Item no:
Highlights & Details
Poynting OMNI-280 Network-Antenna Omni-directional Antenna SMA 3 dBi
- Future-proof omni-directional broadband LTE SISO antenna
- Backwards compatible with 2G and 3G technologies
- Improves the user experience of the mobile subscribers
- Increased connection stability
- Weatherproof housing

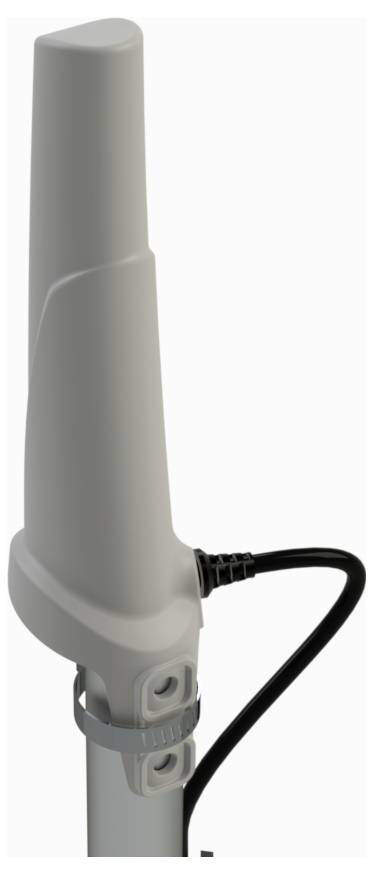

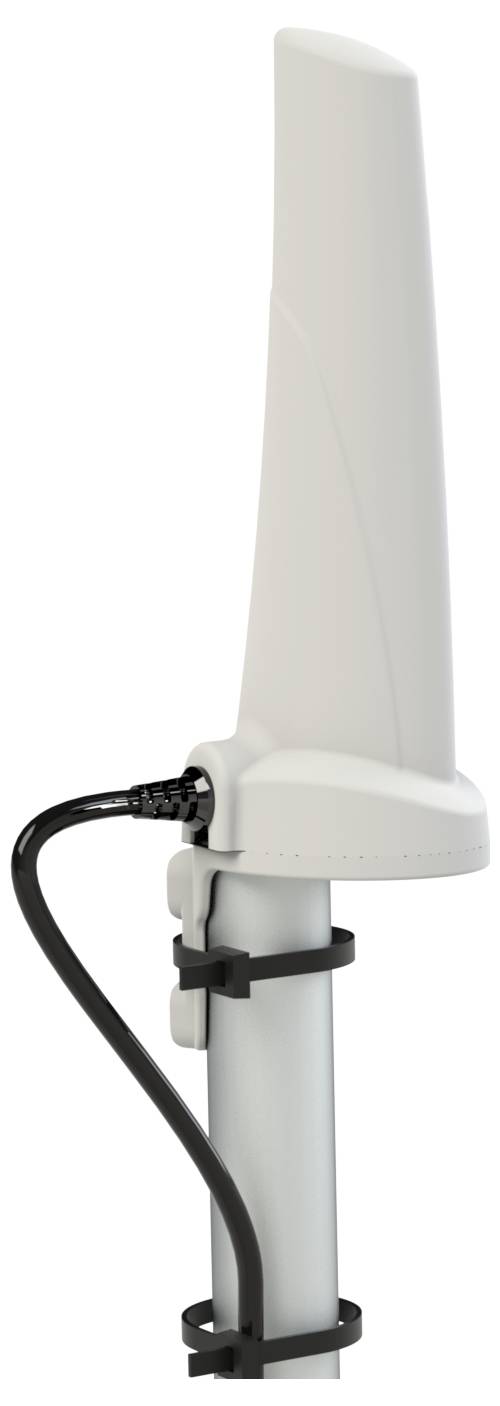

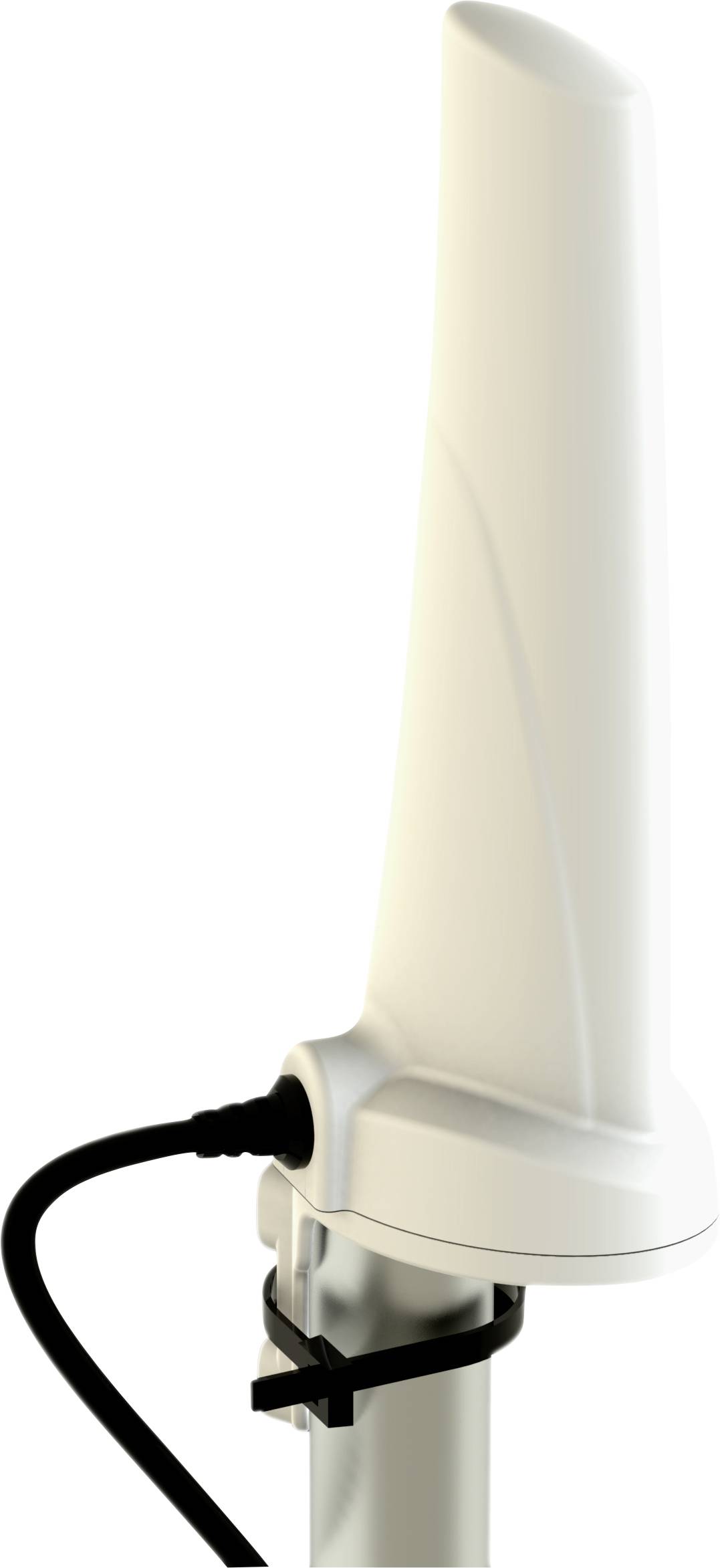

- Tower, wall or magnet mounting
Technical specifications
- 0,617 to 4.2 GHz
- RG 58 cable type
- Product type
LTE antenna
- Gain
3 dBi
- Type
Monopole antenna
- Antenna socket
SMA socket
- Weight
175 g
- Width
61 mm
- Height
157 mm
- Factory colour
White
- Depth
44 mm
IP65
- Operating temperature (T-T)
-40 - 80 °C
- Package weight
180 g
Documents & Downloads
Datasheet
Datasheet 3790020 Poynting OMNI-280 A-OMNI-0280-02-V1 LTE antenna 3 dBi
User & Safety Instructions
User & Safety Instructions 3790020 Poynting OMNI-280 A-OMNI-0280-02-V1 LTE antenna 3 dBi
Description
Omni-directional broadband LTE/5G antenna
The OMNI-280 is an innovative omnidirectional antenna designed to amplify 4G, 3G and 2G network signals. This single polarized antenna for the entire LTE band has an ultra-wide band element in a compact design and offers options for magnetic, wall or mast mounting. The OMNI-280 is a cost effective solution for improving signal reception, increasing data throughput and ensuring a stable, high quality connection.
Broadband LTE coverage: Supports 4G, 3G, and 2G networks and covers LTE/HSPA/3G/EDGE/GPRS tapes.
Improved signal stability: Improves signal reliability and throughput for a seamless user experience.
Versatile mounting options: Can be mounted magnetically, on the wall or on a mast, WAS enables a flexible installation.
Compact and efficient design: Integrates an ultrawide band element into a single housing for consistent performance.
Optimized for GSM networks: Stable and improved connectivity across all LTE, HSPA and 3G network applications.
Low-cost performance: Provides a cost-effective signal improvement and network reliability solution.
The OMNI-280 is the ideal choice for users who want improved LTE signal reception by providing stable connectivity, flexible installation and improved network performance for a wide range of applications.
This text is machine translated.
The OMNI-280 is an innovative omnidirectional antenna designed to amplify 4G, 3G and 2G network signals. This single polarized antenna for the entire LTE band has an ultra-wide band element in a compact design and offers options for magnetic, wall or mast mounting. The OMNI-280 is a cost effective solution for improving signal reception, increasing data throughput and ensuring a stable, high quality connection.
Broadband LTE coverage: Supports 4G, 3G, and 2G networks and covers LTE/HSPA/3G/EDGE/GPRS tapes.
Improved signal stability: Improves signal reliability and throughput for a seamless user experience.
Versatile mounting options: Can be mounted magnetically, on the wall or on a mast, WAS enables a flexible installation.
Compact and efficient design: Integrates an ultrawide band element into a single housing for consistent performance.
Optimized for GSM networks: Stable and improved connectivity across all LTE, HSPA and 3G network applications.
Low-cost performance: Provides a cost-effective signal improvement and network reliability solution.
The OMNI-280 is the ideal choice for users who want improved LTE signal reception by providing stable connectivity, flexible installation and improved network performance for a wide range of applications.
This text is machine translated.
Hints
Ideal applications:
M2M applications where machines and measuring devices must be connected for real-time monitoring and information transmission (telematics)
Electricity and water supply companies
Security industry where cameras and other security equipment must be monitored
Checkout systems for retail trade
Areas with poor data signal reception (inside and outside)
