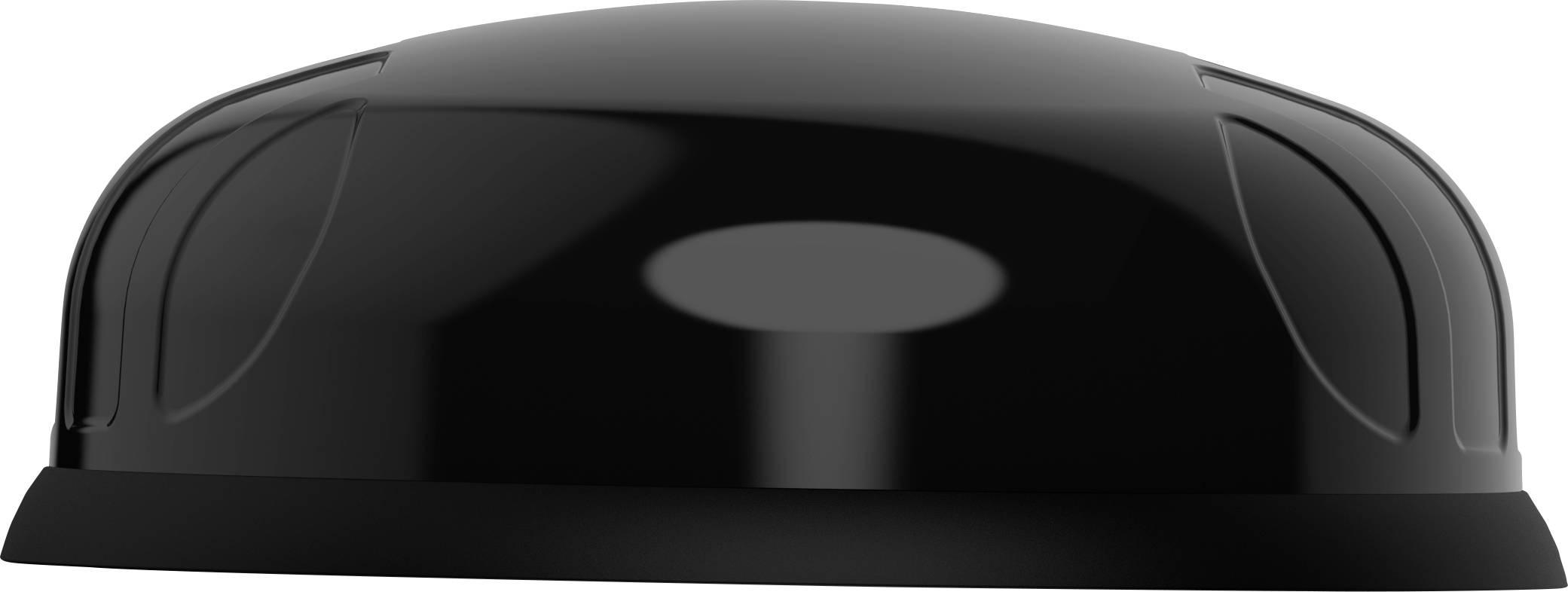

Poynting A-PUCK-0005-V2-01 network antenna Omni-directional antenna

Highlights & Details

5-in-1 5G high-performance multi-frequency antenna
Antenna supports private 5G/5G/4G/3G/2G/Wi-Fi-6e/ Wi-Fi-7/LoRa/Bluetooth
5G (2x2 MIMO), dual band WLAN (2x2 MIMO), GPS/GLONASS
Ultra-broad band coverage of 617 – 6000 MHz for mobile radio
Robust, vandal-proof and waterproof (IP 69K)
Ideal for transport, shipping and IoT/M2M application

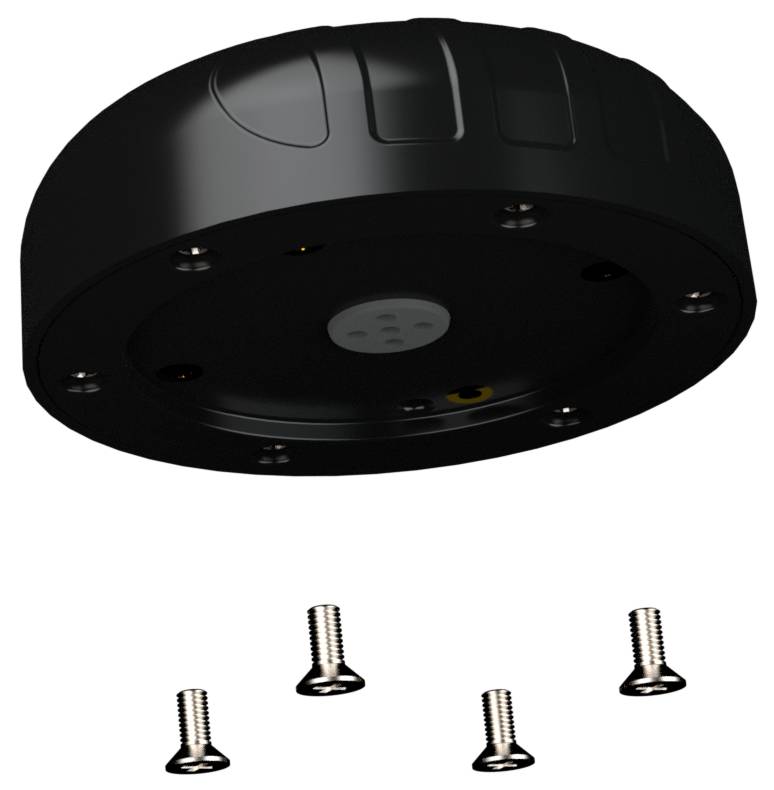

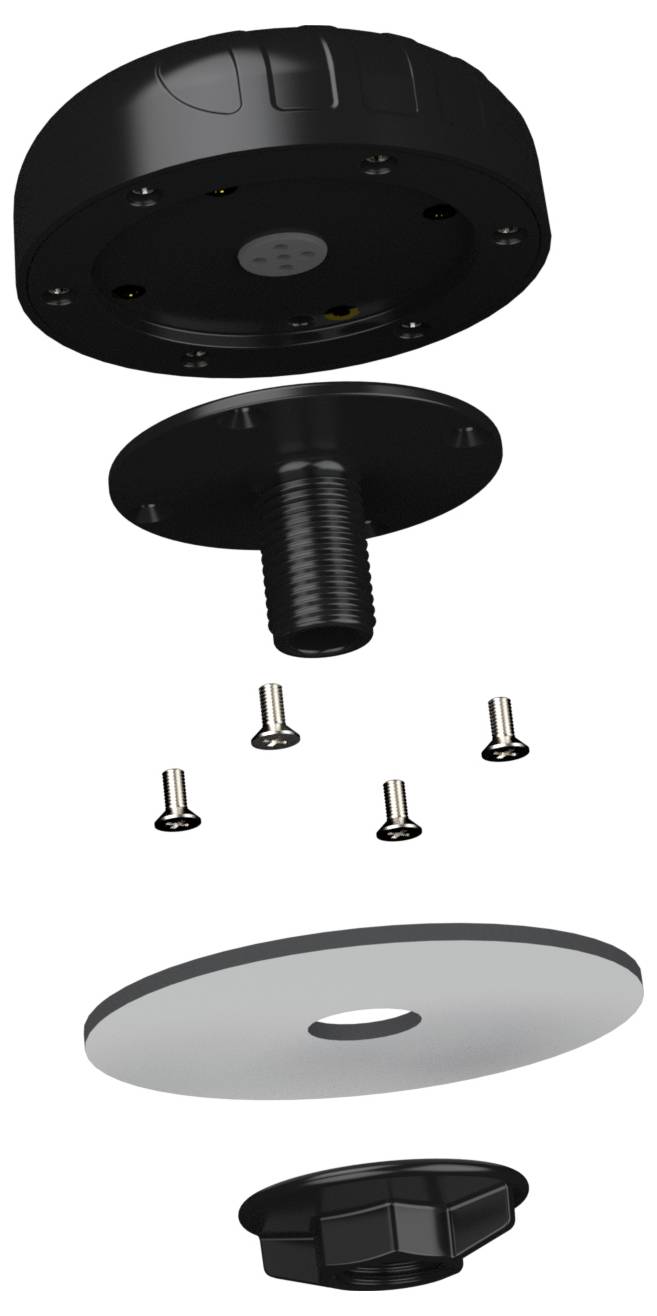

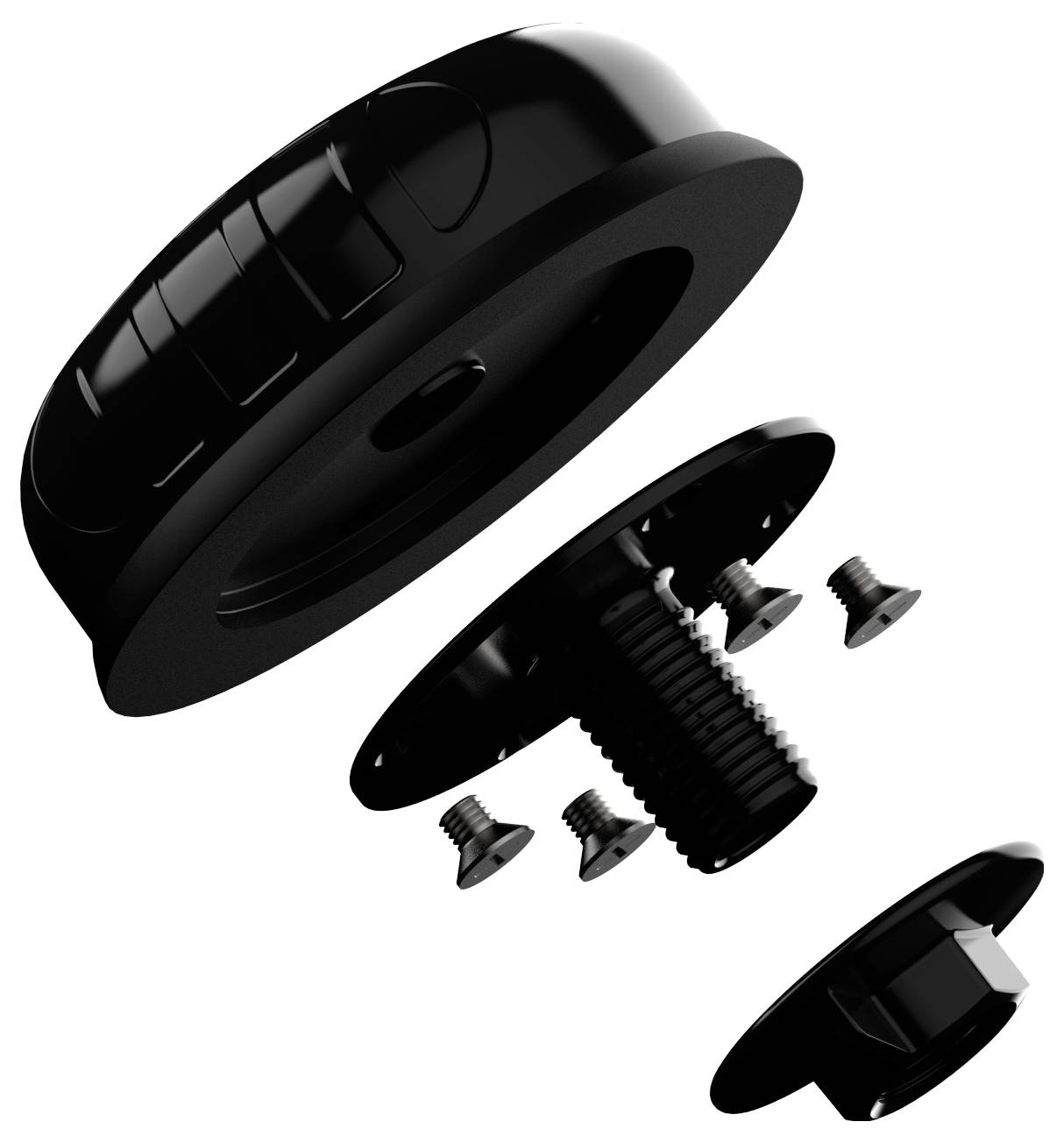

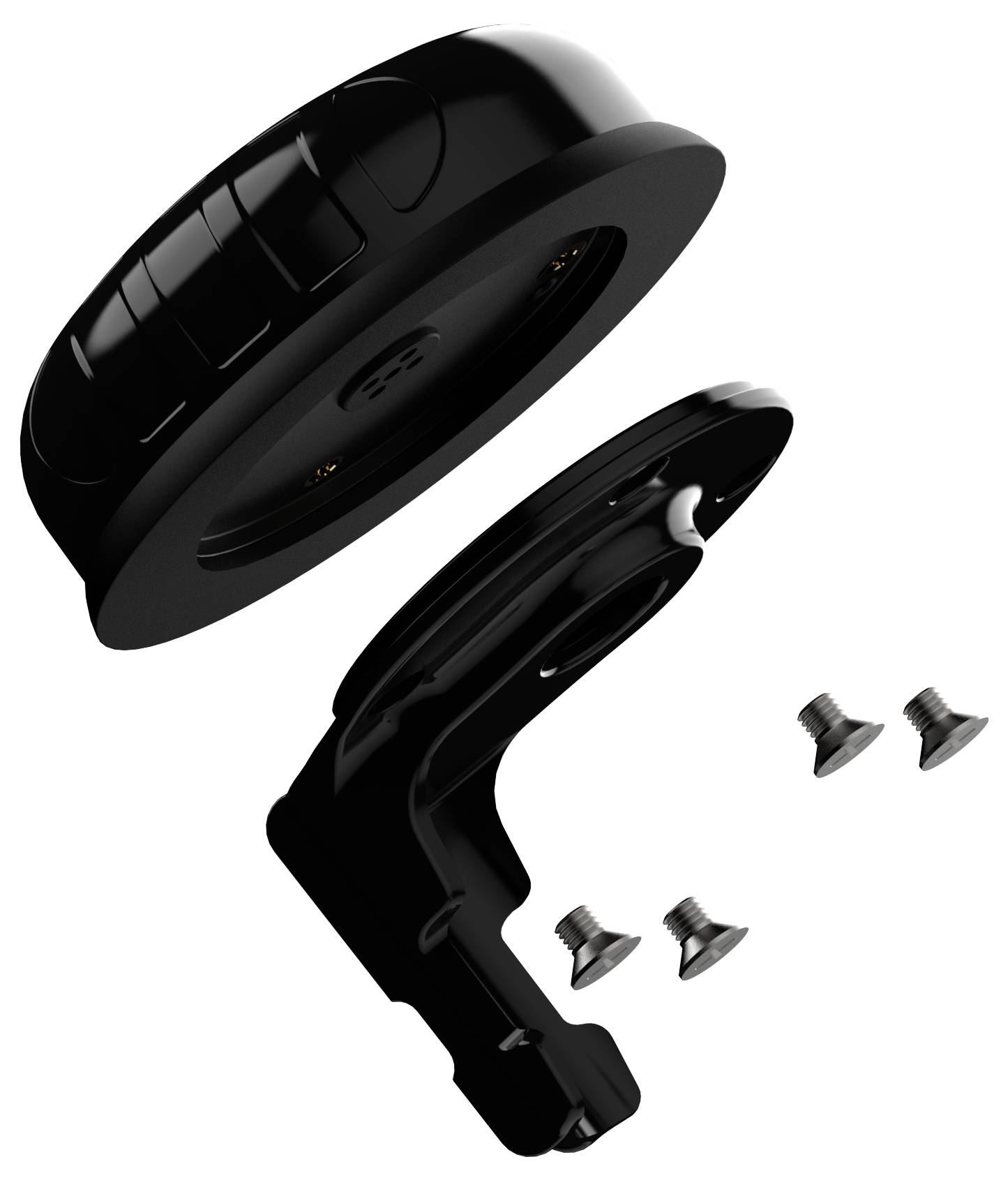

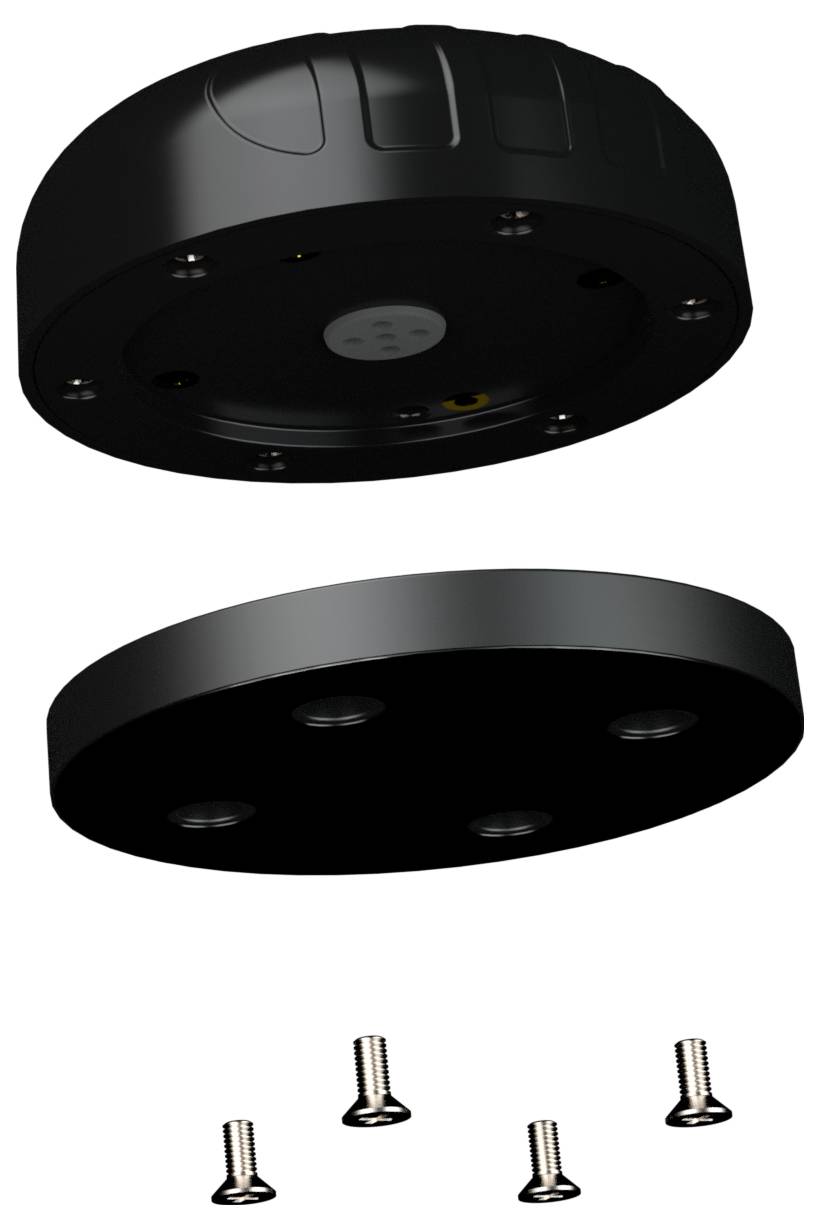

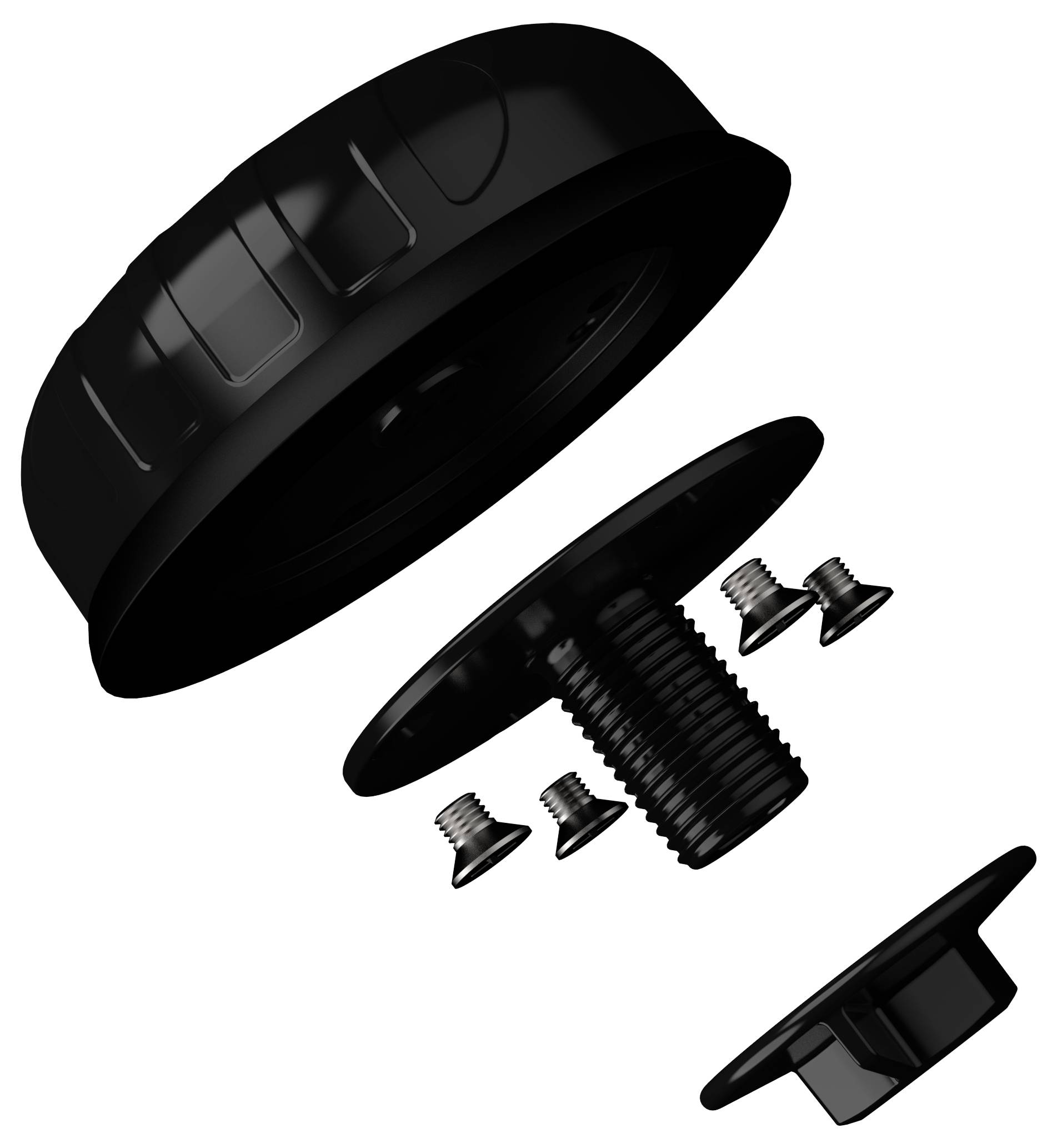

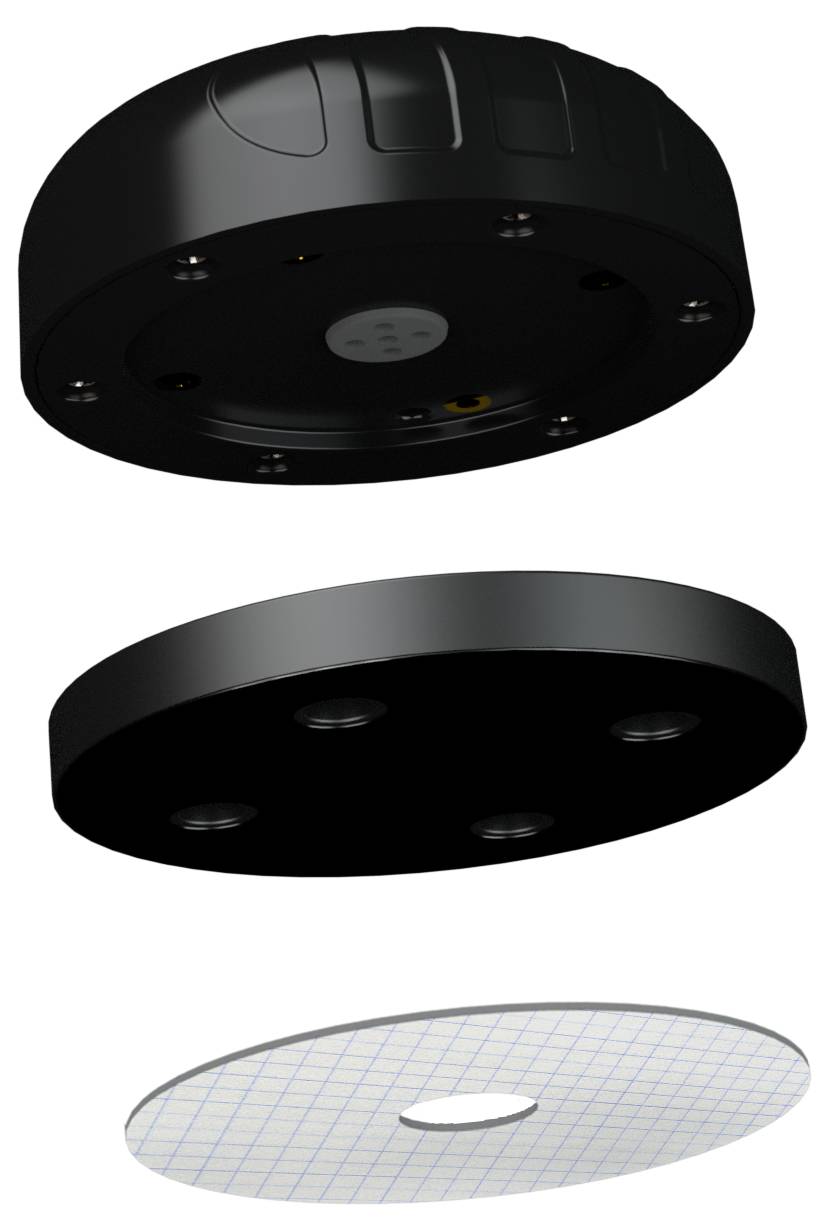

Extremely versatile mounting options for an easy installation

Technical specifications

Product type: LTE antenna

Gain: 6.5 dBi

Antenna socket: SMA plug

Weight: 0.53 kg

Cable length: 0 cm

Factory colour: Black

: IP69K

Keyboard layout: German, QWERTZ

Charging method (Power Delivery): w/o USB Power Delivery

Charging capacity (max.): 15 W

Charging capacity (min.): 10 W

UKCA: yes

Operating temperature (T-T): -40 - 80 °C

Documents & Downloads

Datasheet

Datasheet 3790009 Poynting PUCK-5-V2 A-PUCK-0005-V2-01 LTE antenna 6.5 dBi

User & Safety Instructions

User & Safety Instructions 3790009 Poynting PUCK-5-V2 A-PUCK-0005-V2-01 LTE antenna 6.5 dBi

Description

5-in-1 antenna for transport and IoT/M2M
The POYNTING PUCK range offers a compact, powerful antenna for IoT/M2M, Smart Metering, Smart Utilities, Transport, Marine and Agriculture. The PUCK-5 is a 5-in-1 antenna system in a single housing and provides reliable and future-proof connectivity for 5G, LTE, Wi-Fi and GPS applications.

Wireless broadband coverage: Includes 2x cellular MIMO antennas that cover 617 to 6000 MHz to ensure compatibility with 2G, 3G, 4G, and 5G networks.
Dualband 2×2 MIMO Wi-Fi-connectivity: Supports the bands 2.4 GHz, 5 GHz and 6 GHz, compatible with the standards 802.11n, 802.11ac/ax/be.
High-precision GPS/GLONASS antenna: The active GPS system ensures accurate positioning and is ready for operation at temperatures up to -40ºC.
Future-proof 5G and LTE implementation: Ultra-broadband performance ensures smooth operation through multiple operators and evolving mobile technologies up to 6 GHz.
Optimized radiation patterns: Provides a balance of omnidirectional directional, pattern variety and reliable signal performance at the desired height.
Compact and versatile design: The small form factor enables easy integration into a wide range of industries while maintaining high-performance features.
Improved connection stability: Designed to ensure that both 5G/LTE ports are connected to the router/device for maximum throughput and performance.

The PUCK-5 is an excellent choice for applications that require a compact yet powerful antenna solution that provides strong and stable 5G, LTE, Wi-Fi and GPS connectivity. Other PUCK derivatives may be better suited for SISO applications.
