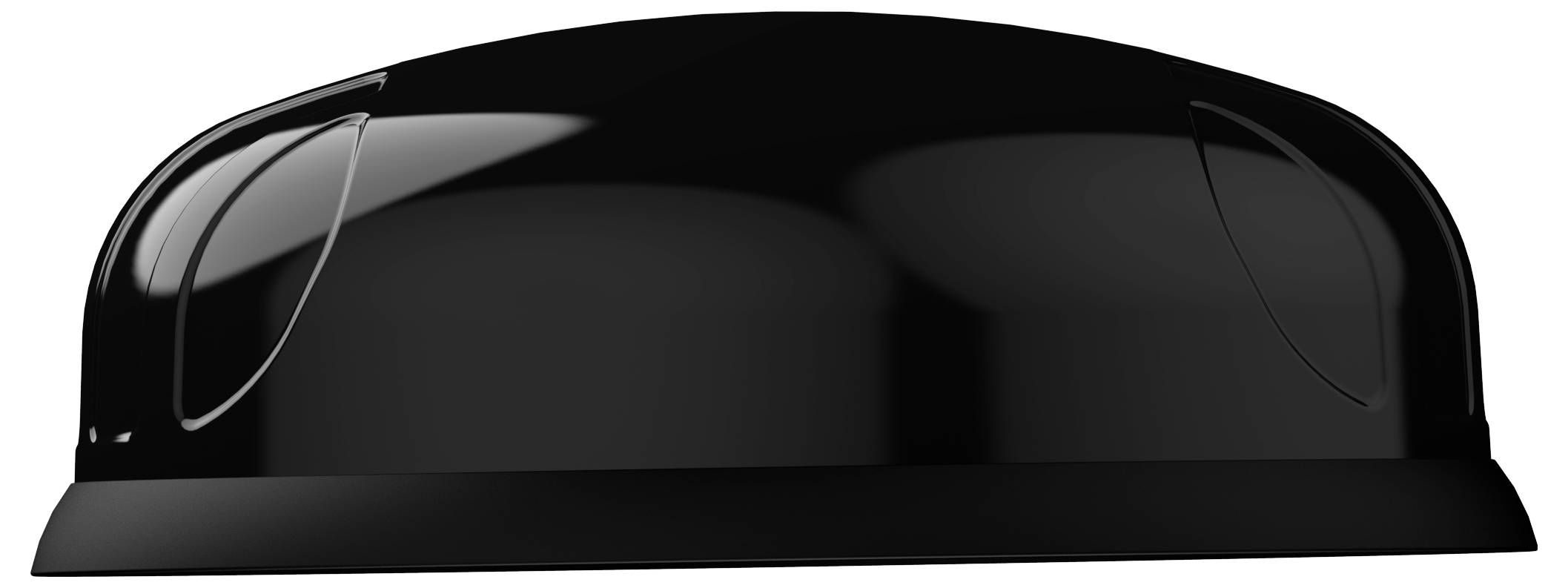

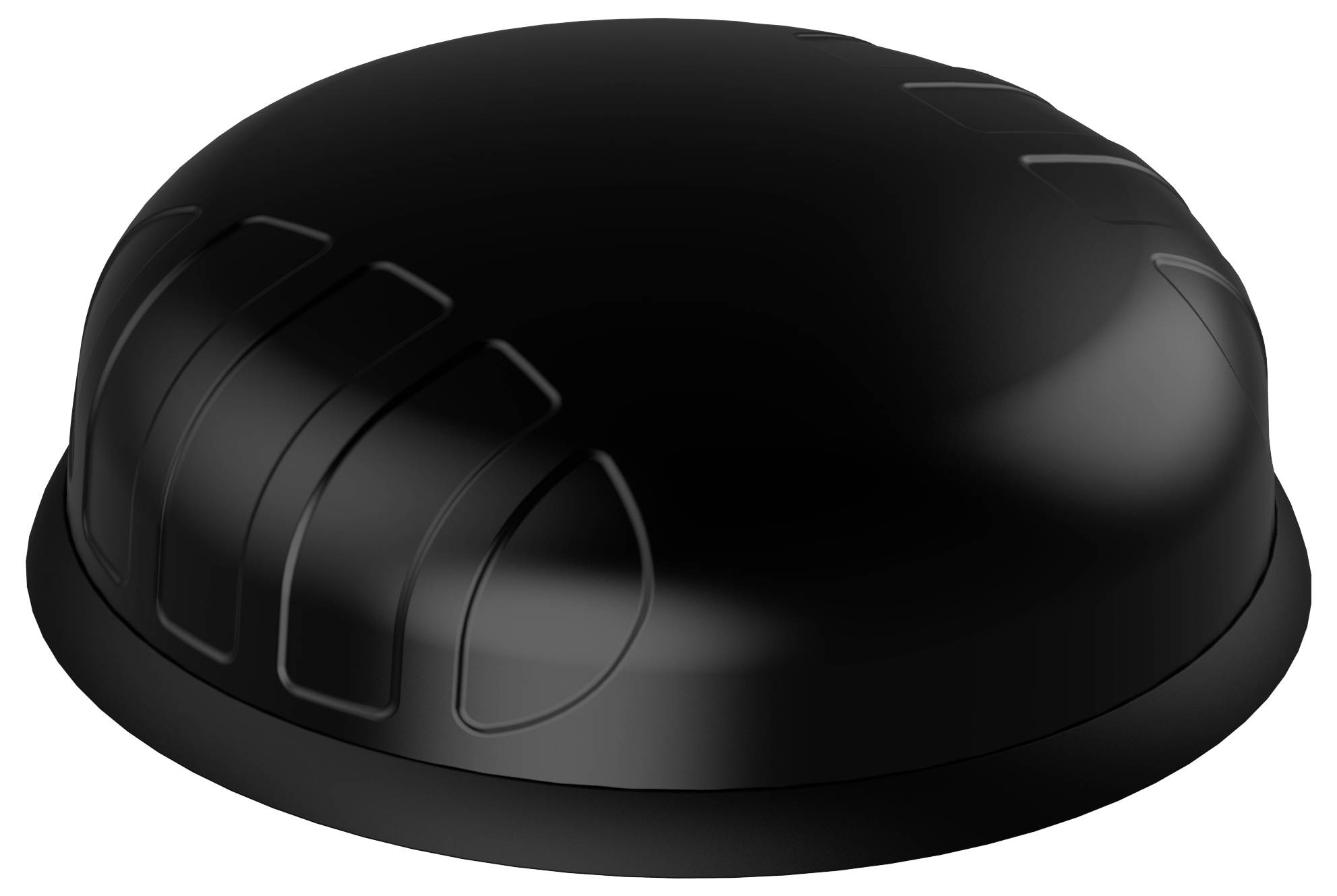

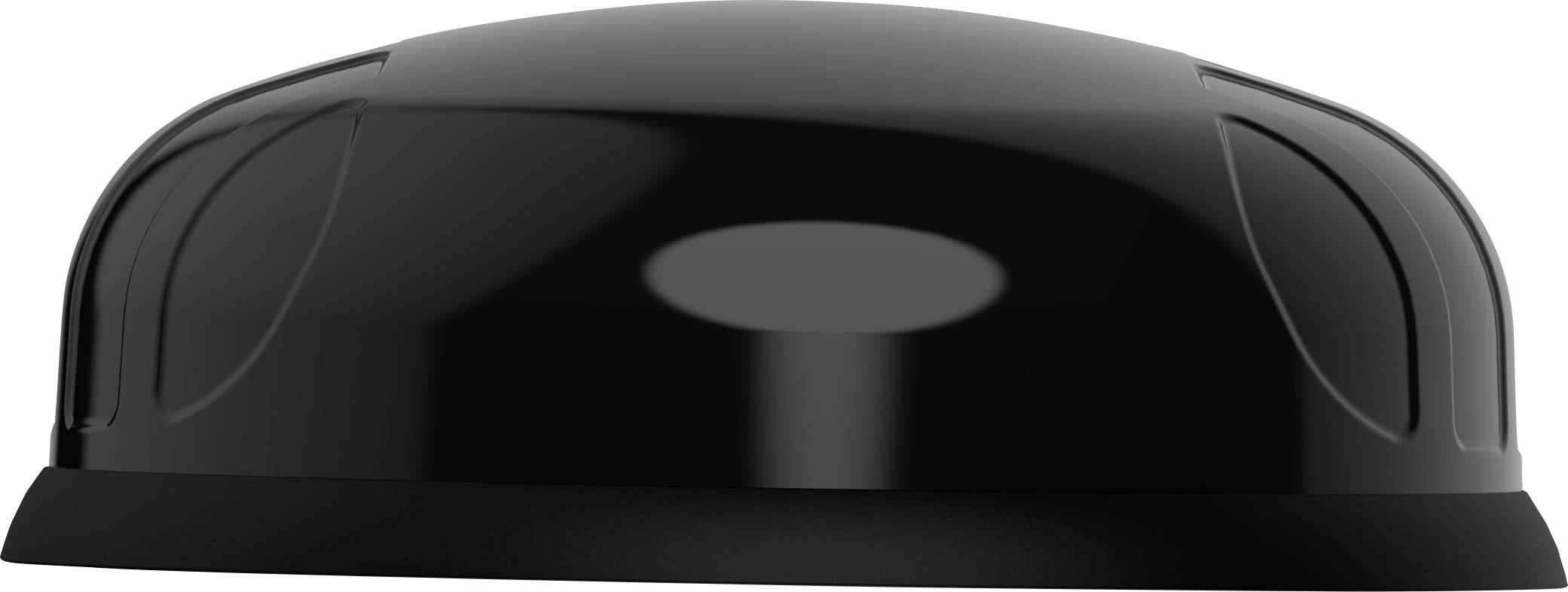

Poynting PUCK-7-V2 A-PUCK-0007-V2-01 LTE antenna 6.5 dBi
EAN:
Part number:
Item no:
Highlights & Details
Poynting PUCK-7-V2 network antenna Omni-directional antenna SMA 6.5 dBi
- 4-in-1 5G high-performance multi-frequency antenna
- Antenna supports private 5G/5G/4G/3G/2G/Wi-Fi-6e/ Wi-Fi-7/LoRa/Bluetooth
- 5G (2x2 MIMO) and dual band WLAN (2x2 MIMO)
- Ultra-broad band coverage of 617 – 6000 MHz for mobile radio
- Robust, vandal-proof and waterproof (IP 69K)
- Ideal for transport, shipping and IoT/M2M application

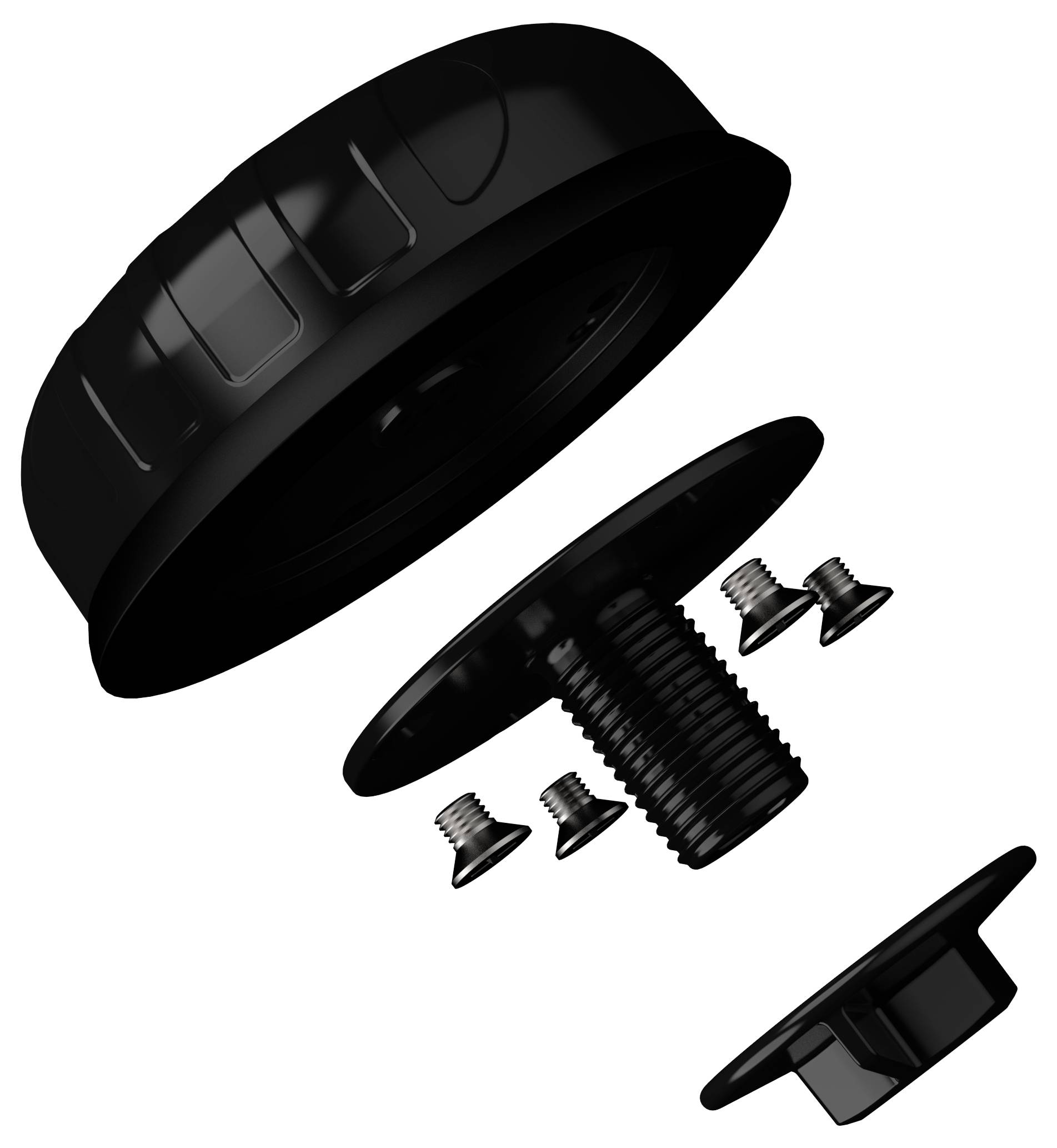

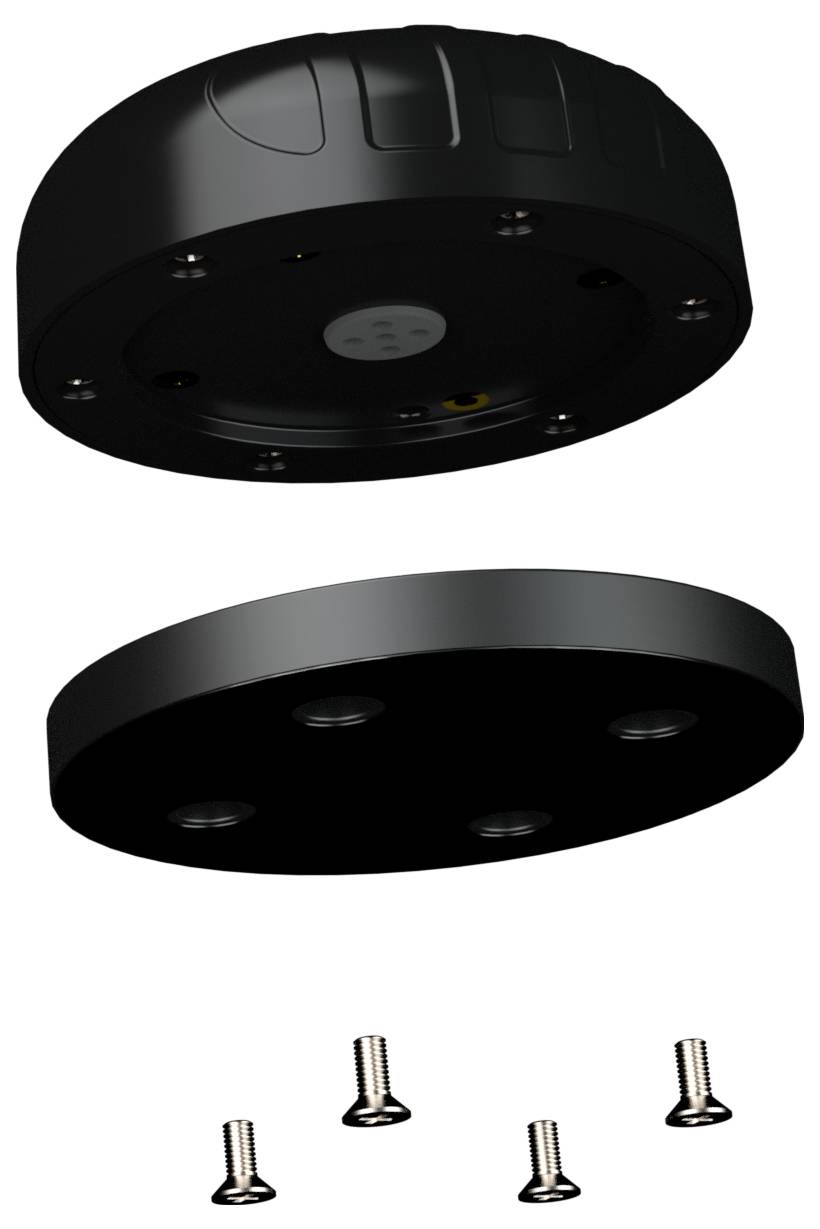

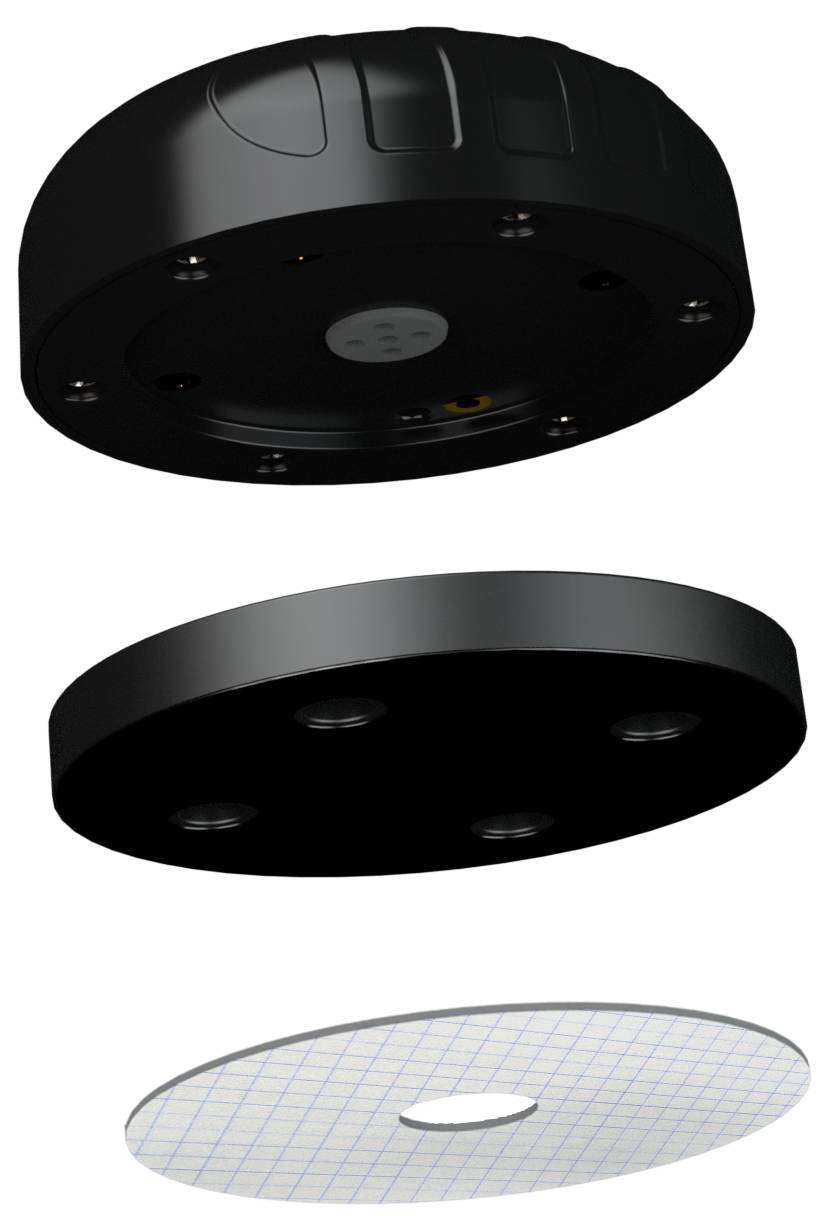

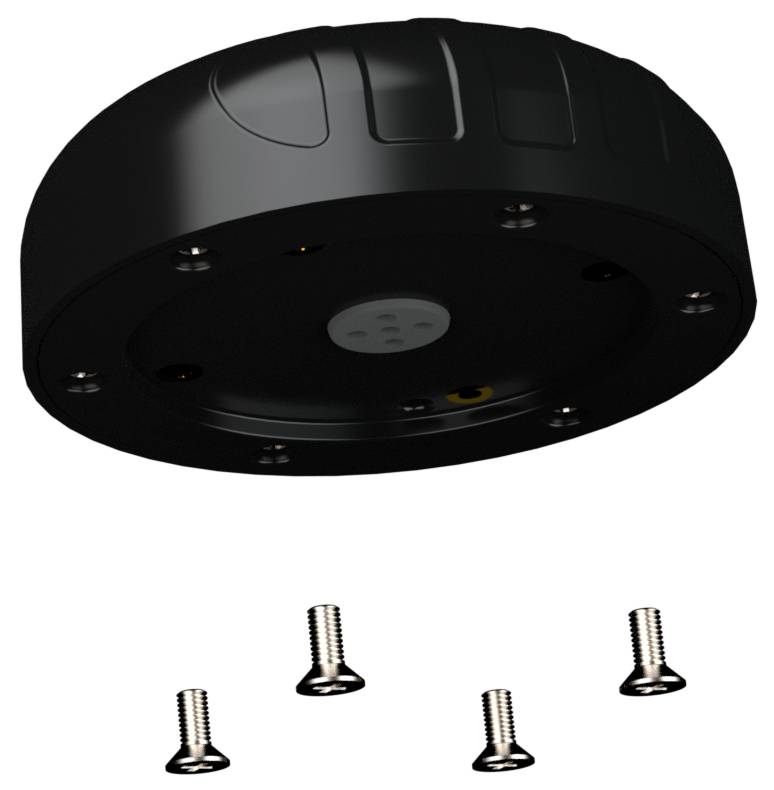

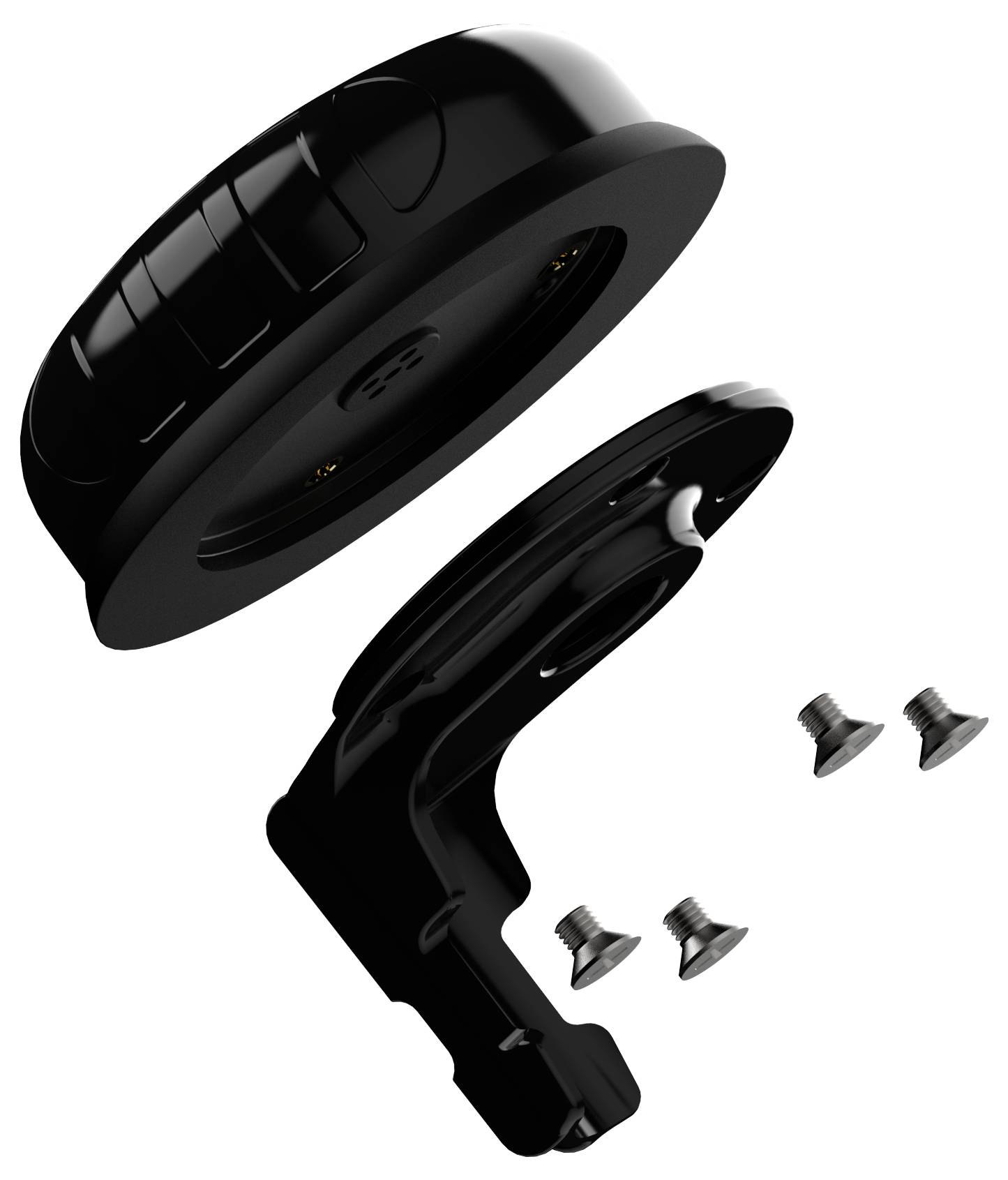

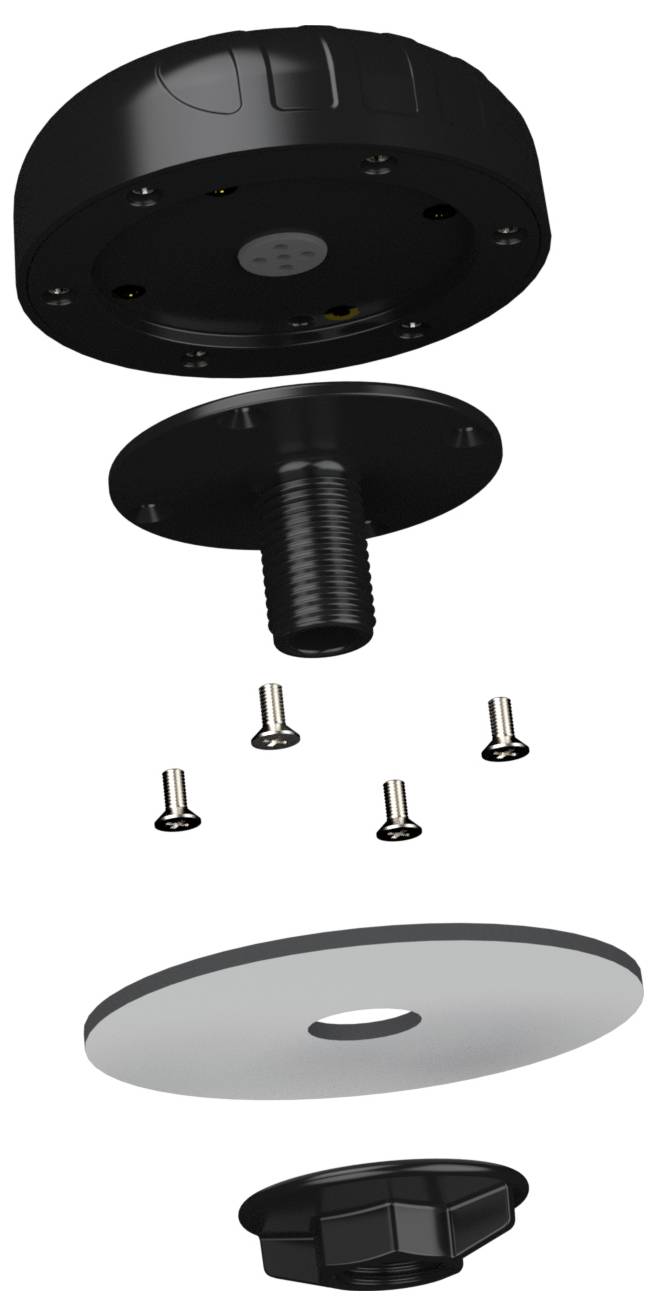

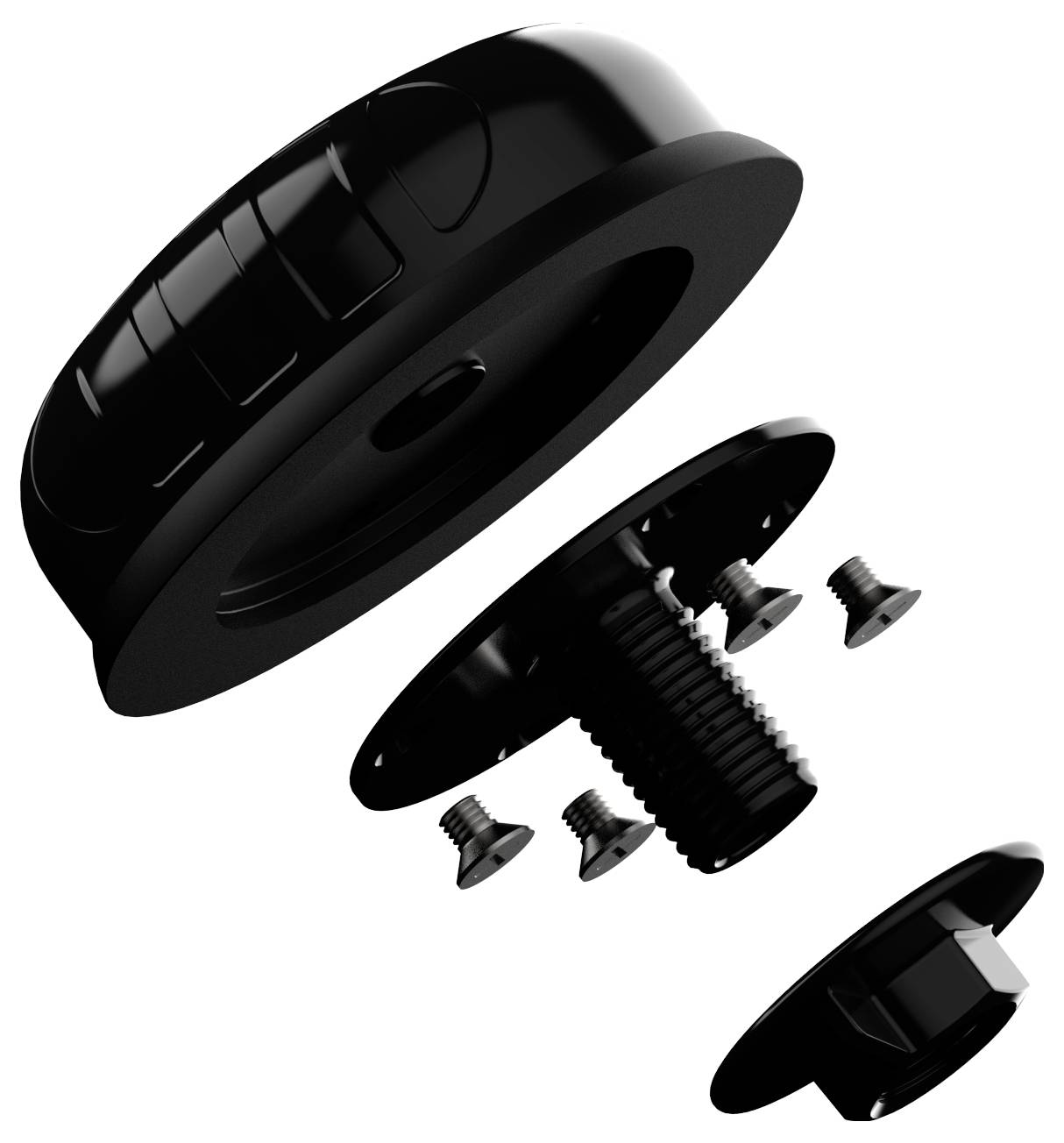

- Extremely versatile mounting options for an easy installation
Technical specifications
- 0,617 - 6 GHz
- WLAN standards: 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- Cable type RTK-031
- Product type
LTE antenna
- Gain
6.5 dBi
- Antenna socket
SMA plug
- Weight
340 g
- Height
36 mm
- Cable length
2 m
- Factory colour
Black
- (Ø)
9.93 cm
- Impedance
50 Ω
IP69K
- Material (details)
Acrylonitrile butadiene styrene (ABS)
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Storage relative humidity (H-H)
5 - 95 %
- Quantity per pack
1 Stück(e)
- Gain
6 dBi
- Quick installation guide
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 80 °C
- Package weight
661 g
- Mounting kit
yes
Documents & Downloads
Datasheet
Datasheet 3790010 Poynting PUCK-7-V2 A-PUCK-0007-V2-01 LTE antenna 6.5 dBi
User & Safety Instructions
User & Safety Instructions 3790010 Poynting PUCK-7-V2 A-PUCK-0007-V2-01 LTE antenna 6.5 dBi
Description
4-in-1 antenna for transport and IoT/M2M
The POYNTING PUCK range offers a compact, powerful antenna for IoT/M2M, Smart Metering, Smart Utilities, Transport, Marine and Agriculture. The PUCK-7 is a 4-in-1 antenna system in a single housing and provides reliable and future-proof connectivity for 5G, LTE and Wi-Fi applications.
Wireless broadband coverage: Includes 2x cellular MIMO antennas that cover 617 to 6000 MHz to ensure compatibility with 2G, 3G, 4G, and 5G networks.
Dualband 2×2 MIMO Wi-Fi-connectivity: Supports the bands 2.4 GHz, 5 GHz and 6 GHz, compatible with the standards 802.11n, 802.11ac/ax/be.
Future-proof 5G and LTE implementation: Ultra-broadband performance ensures smooth operation through multiple operators and evolving mobile technologies up to 6 GHz.
Optimized radiation patterns: Provides a balance of omnidirectional directional, pattern variety and reliable signal performance at the desired height.
Compact and versatile design: The small form factor enables easy integration into a wide range of industries while maintaining high-performance features.
Improved connection stability: Designed to ensure that both 5G/LTE ports are connected to the router/device for maximum throughput and performance.
The PUCK-7 is an excellent choice for applications that require a compact yet powerful antenna solution that delivers strong and stable 5G, LTE and Wi-Fi connectivity. Other PUCK derivatives may be better suited for SISO applications.
This text is machine translated.
The POYNTING PUCK range offers a compact, powerful antenna for IoT/M2M, Smart Metering, Smart Utilities, Transport, Marine and Agriculture. The PUCK-7 is a 4-in-1 antenna system in a single housing and provides reliable and future-proof connectivity for 5G, LTE and Wi-Fi applications.
Wireless broadband coverage: Includes 2x cellular MIMO antennas that cover 617 to 6000 MHz to ensure compatibility with 2G, 3G, 4G, and 5G networks.
Dualband 2×2 MIMO Wi-Fi-connectivity: Supports the bands 2.4 GHz, 5 GHz and 6 GHz, compatible with the standards 802.11n, 802.11ac/ax/be.
Future-proof 5G and LTE implementation: Ultra-broadband performance ensures smooth operation through multiple operators and evolving mobile technologies up to 6 GHz.
Optimized radiation patterns: Provides a balance of omnidirectional directional, pattern variety and reliable signal performance at the desired height.
Compact and versatile design: The small form factor enables easy integration into a wide range of industries while maintaining high-performance features.
Improved connection stability: Designed to ensure that both 5G/LTE ports are connected to the router/device for maximum throughput and performance.
The PUCK-7 is an excellent choice for applications that require a compact yet powerful antenna solution that delivers strong and stable 5G, LTE and Wi-Fi connectivity. Other PUCK derivatives may be better suited for SISO applications.
This text is machine translated.
