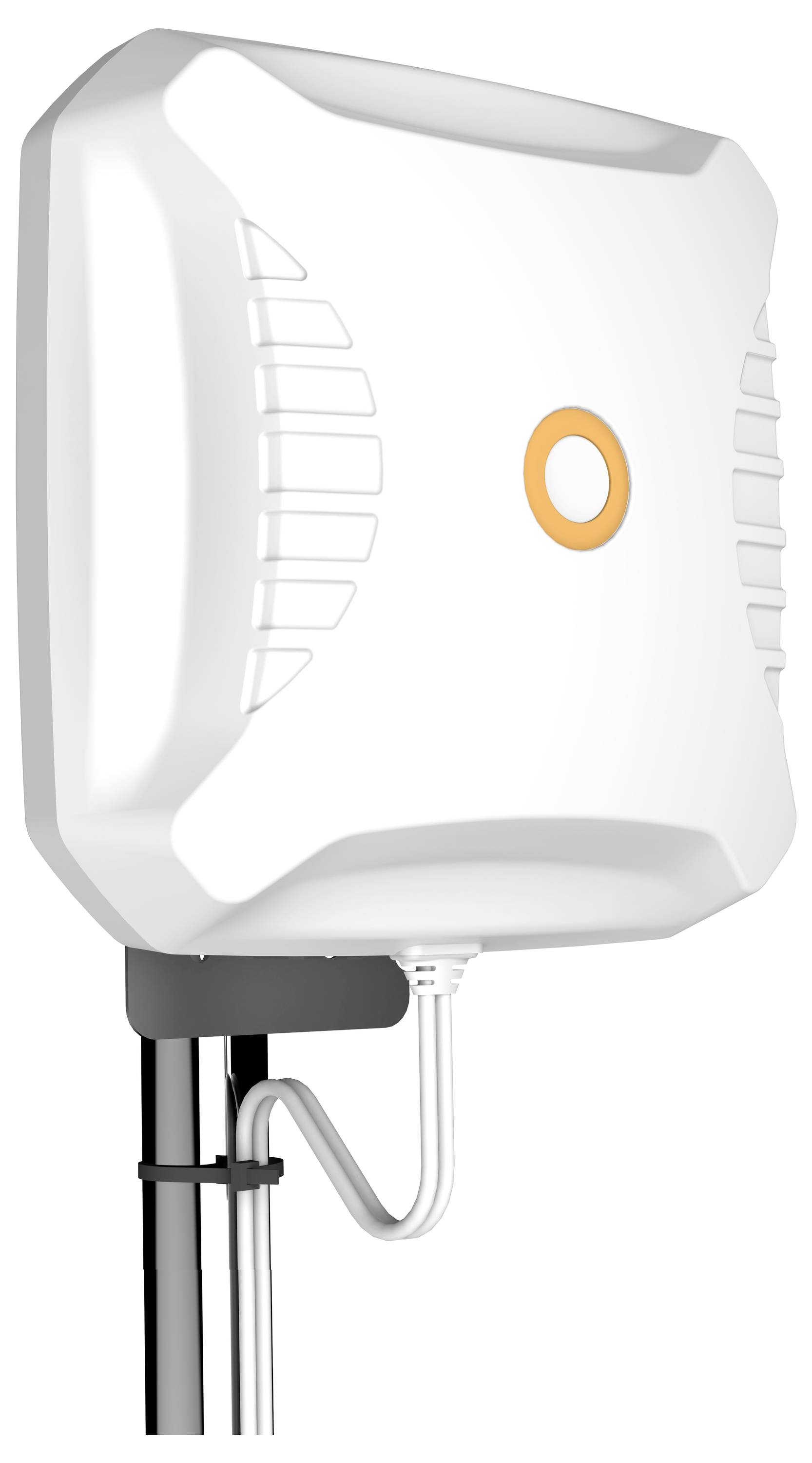

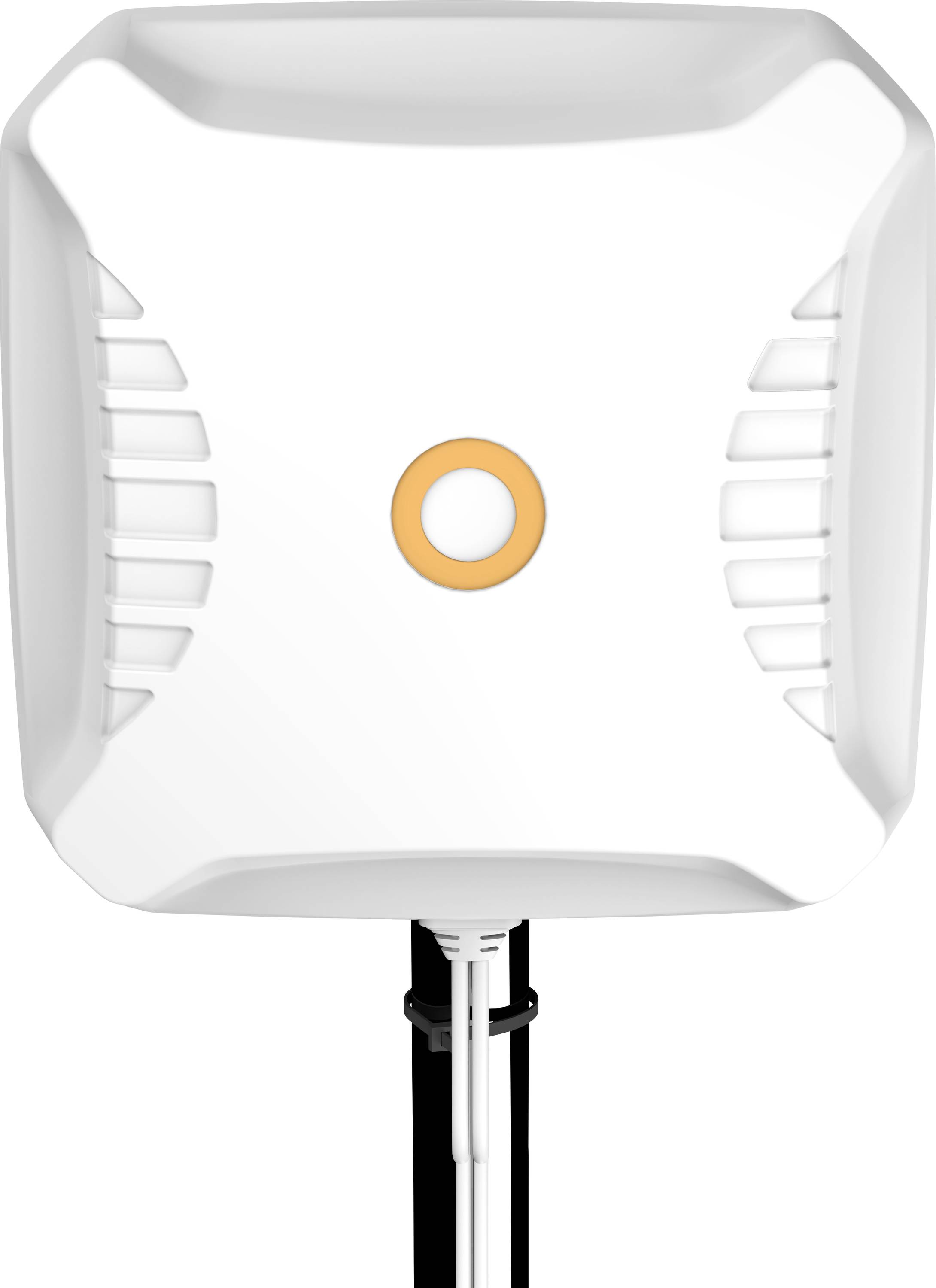

Poynting XPOL-2-5G A-XPOL-0002-V3-03 LTE antenna 11 dBi
EAN:
Part number:
Item no:
Highlights & Details
Poynting XPOL-2-5G network antenna directional SMA 11 dBi
- New advanced metamaterial technology
- Exceptional performance over major 4G/5G bands
- High gain for the antenna size
- Broadband 2x2 MIMO-4G/5G antenna
- Downward compatible 2G/3G/4G/LTE/5G-antenna
- Two cross-polarized antennas in one housing for optimum LTE performance
- IP65 weather-/dust- and vandal-proof casing.
Technical specifications
- Product type
LTE antenna
- Gain
11 dBi
- Antenna socket
SMA plug
- Width
265 mm
- Height
90 mm
- Factory colour
White
- Depth
265 mm
- Impedance
50 Ω
IP65
- Charging method (Power Delivery)
w/o USB Power Delivery
- Material (details)
Acrylonitrile Styrene (ASA)
- Charging capacity (max.)
15 W
- Charging capacity (min.)
10 W
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Storage relative humidity (H-H)
5 - 95 %
- Survival wind speed
250 km/h
- Gain
10 / 11 dBi
- Operating relative humidity (H-H)
0 - 98 %
- Storage temperature (T-T)
-40 - 80 °C

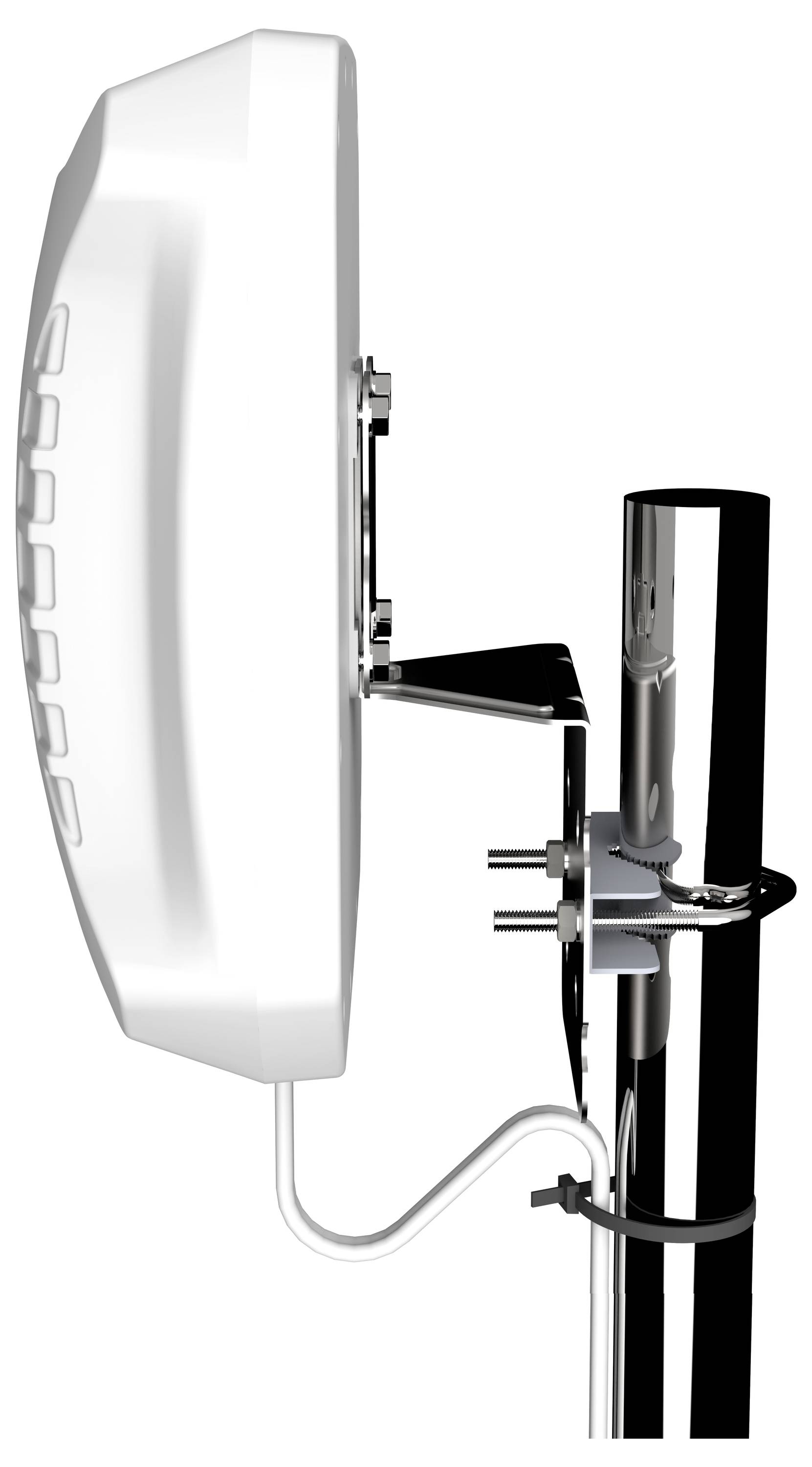

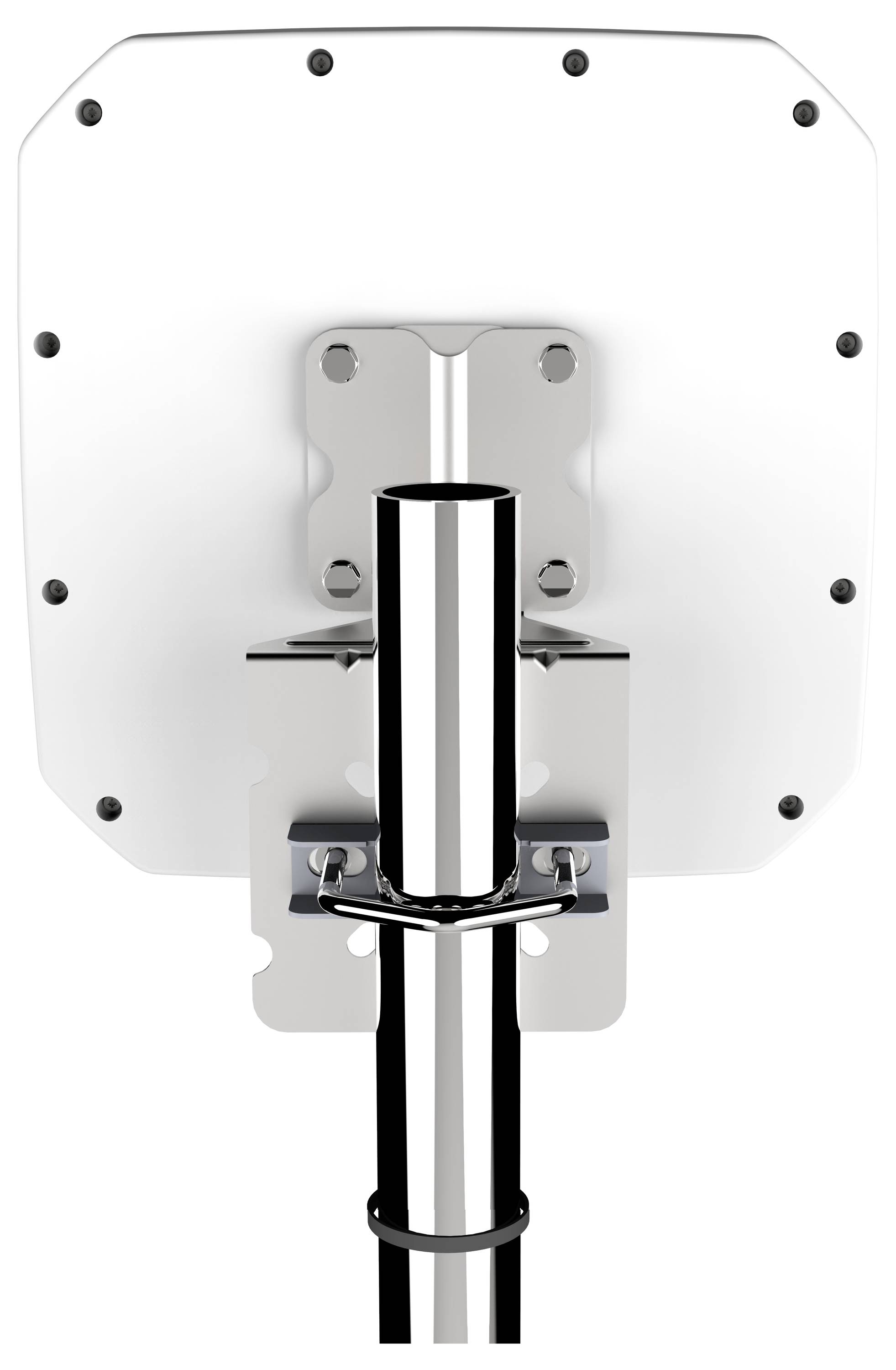

- Mounting kit
yes
Documents & Downloads
Datasheet
Datasheet 3790000 Poynting XPOL-2-5G A-XPOL-0002-V3-03 LTE antenna 11 dBi
User & Safety Instructions
User & Safety Instructions 3790000 Poynting XPOL-2-5G A-XPOL-0002-V3-03 LTE antenna 11 dBi
Description
The XPOL 2-5G is POYNTINGS third generation (V3) of the popular cross-polarized (XPOL) 2×2 MIMO antenna. While the housing retains the known appearance of the second generation (V2), the interior design was completely revised with the help of advanced meta-material technology. The use of artificial magnetic conductors (AMC) and a patented beam configuration significantly increase bandwidth and amplification.
