Buy Poynting XPOL-24 A-XPOL-0024-V1-01 LTE antenna 11 dBi

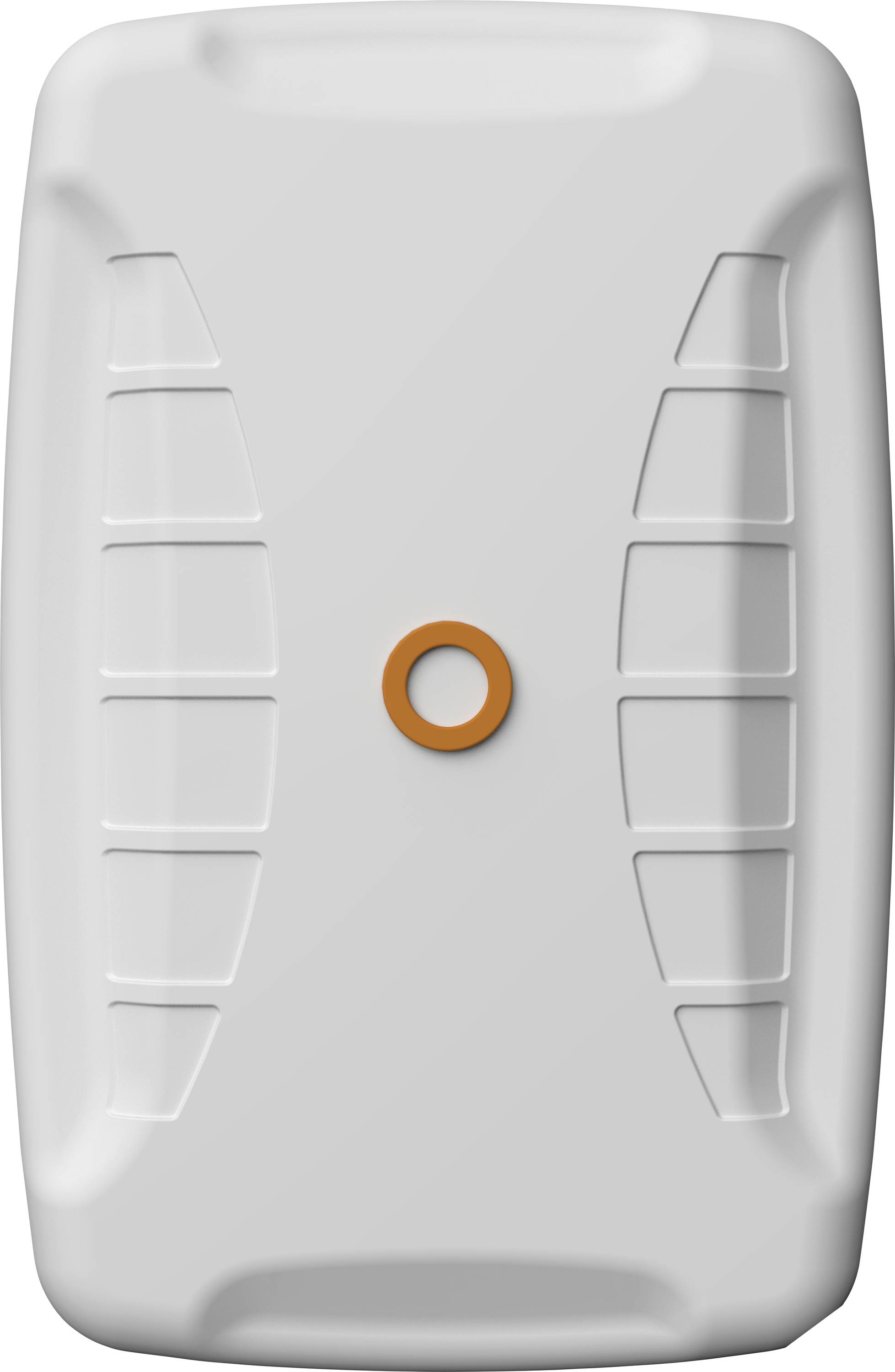

White rectangular device cover with curved edges and side grip grooves, featuring a small orange ring in the center.<br>

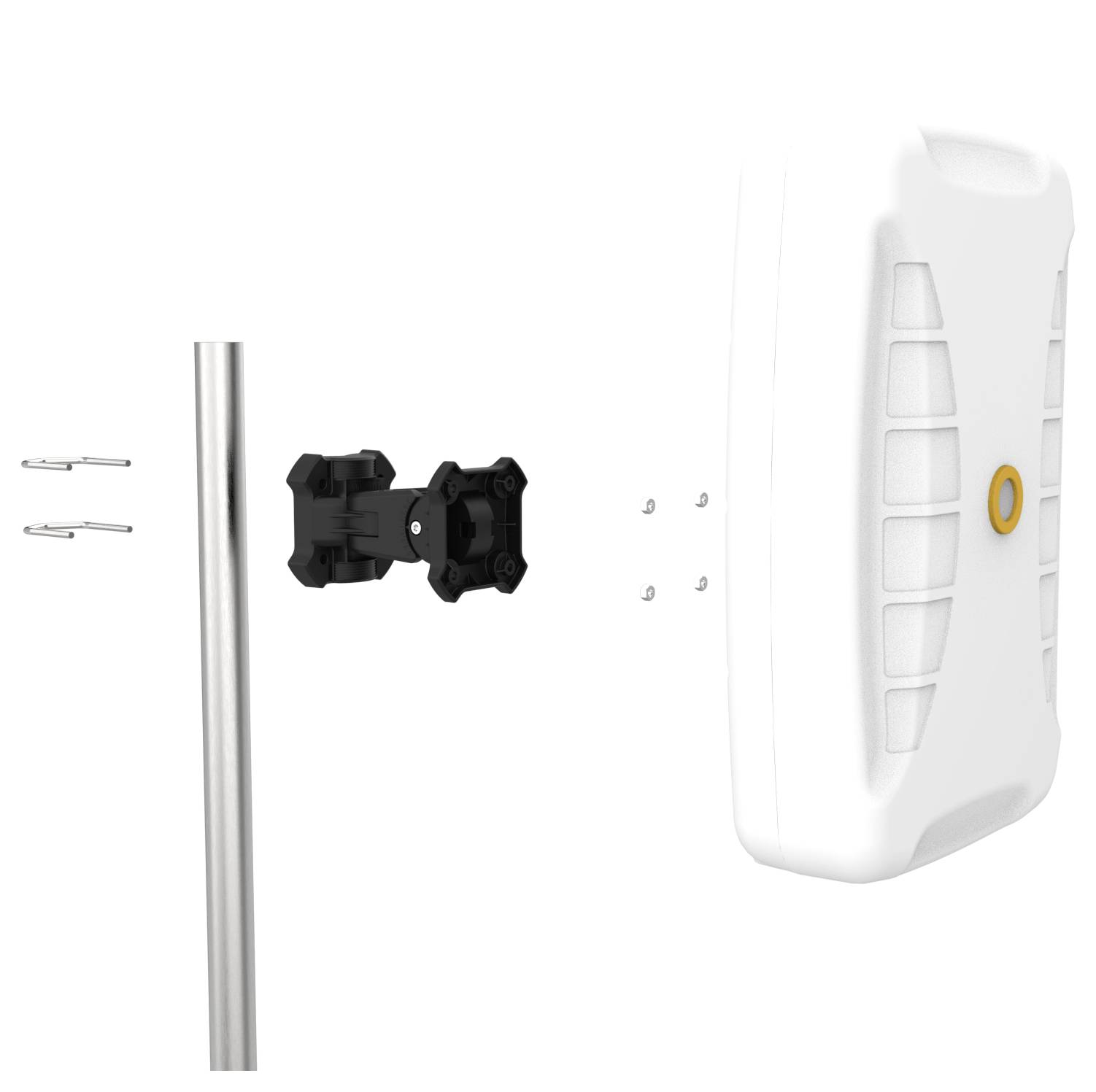

White wall-mounted device with a metal pole and black clamp bracket shown in an exploded view, with screws and fasteners visible.

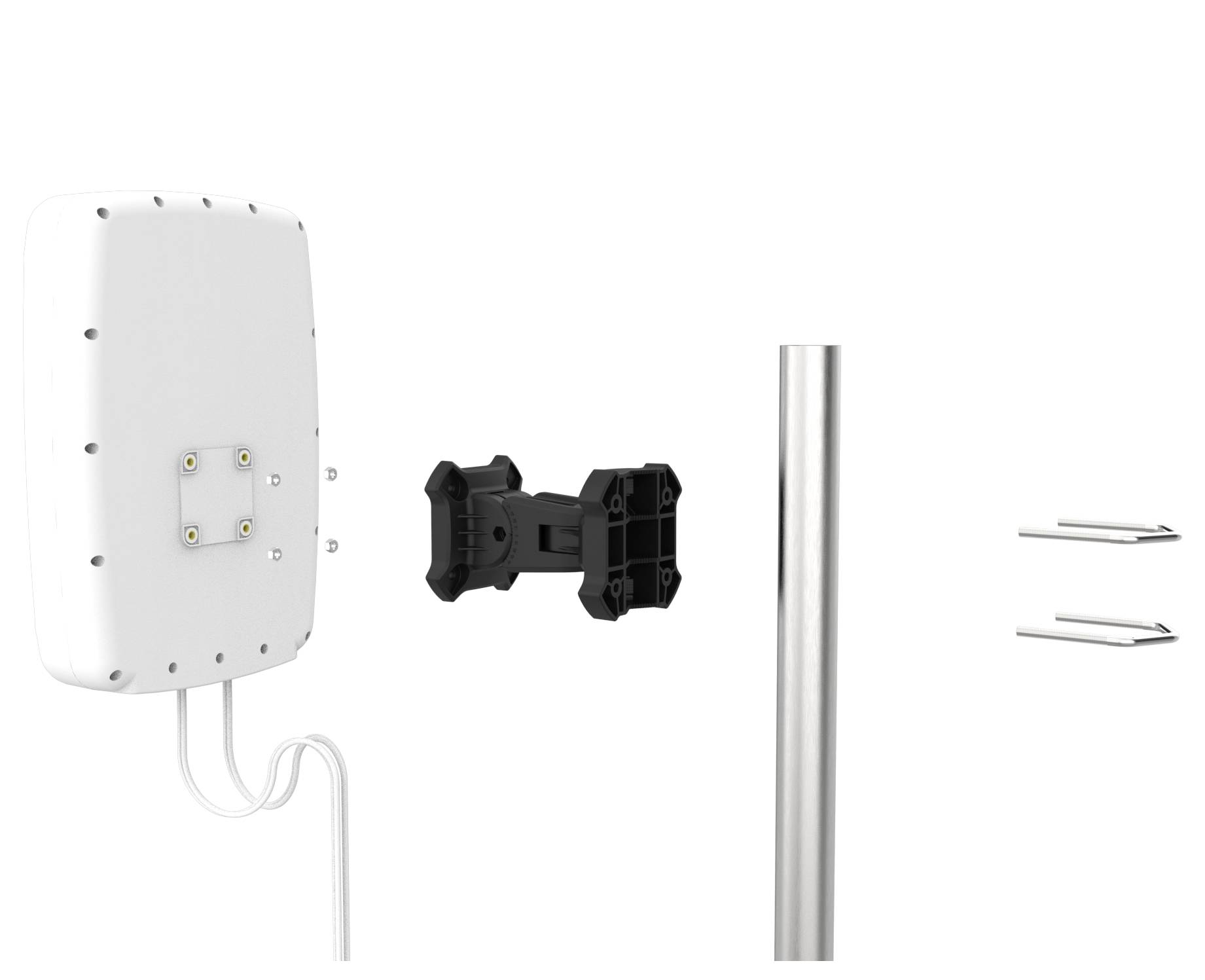

Wireless device mounting kit showing a rectangular unit, adjustable bracket, pole, and fasteners for attaching the device to a pole.

1/3

Poynting

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Poynting XPOL-24 network antenna SMA 11 dBi

Highlights & Details

Extraordinary high performance antenna over the most important 5G/LTE tapes
New advanced metamaterial technology for high performance
Broadband 4x4 MIMO 5G/LTE antenna from 617 to 4200 MHz
Four cross-polarized antennas in a single housing
Weather, dust and vandal-proof housing with protection class IP65

Technical specifications

Frequency range 0,617 - 0.96 & 1.71 - 4.2
Cable type Twin HDF-195

Product type: LTE antenna

Gain: 11 dBi

Antenna socket: SMA socket

Weight: 3.17 kg

Polarisation: Horizontal
Vertical

Width: 290 mm

Height: 110 mm

Cable length: 5 m

Factory colour: White

Depth: 444 mm

Impedance: 50 Ω

: IP65

Charging method (Power Delivery): w/o USB Power Delivery

Charging capacity (max.): 15 W

Charging capacity (min.): 10 W

UKCA: yes

Operating temperature (T-T): -40 - 80 °C

Storage relative humidity (H-H): 5 - 95 %

Quantity per pack: 1 Stück(e)

Survival wind speed: 160 km/h

Power handling: 10 W

Manual: yes

Operating relative humidity (H-H): 5 - 95 %

Storage temperature (T-T): -40 - 80 °C

Package weight: 4.38 kg

Mounting kit: yes

Documents & Downloads

Datasheet

Datasheet 3790001 Poynting XPOL-24 A-XPOL-0024-V1-01 LTE antenna 11 dBi

User & Safety Instructions

User & Safety Instructions 3790001 Poynting XPOL-24 A-XPOL-0024-V1-01 LTE antenna 11 dBi

Description

The XPOL-24 is equipped with the latest metamaterials technology and an artificial magnetic conductor (AMC) for superior bandwidth and amplification. This ensures exceptional performance for both current and future 5G/LTE networks.
