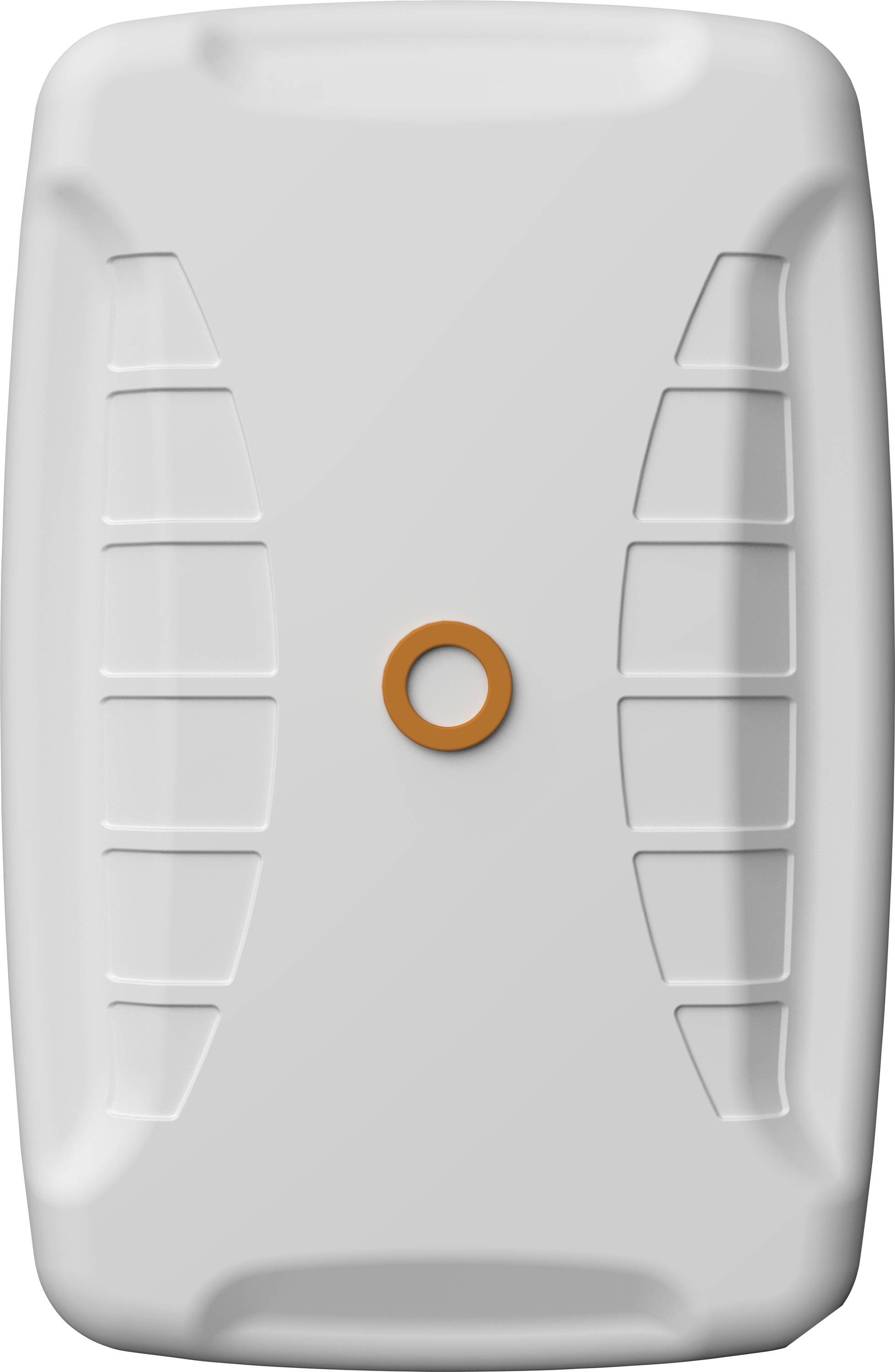

A white rectangular device or plastic cover with two recessed side grips and a small orange ring centered on the front.

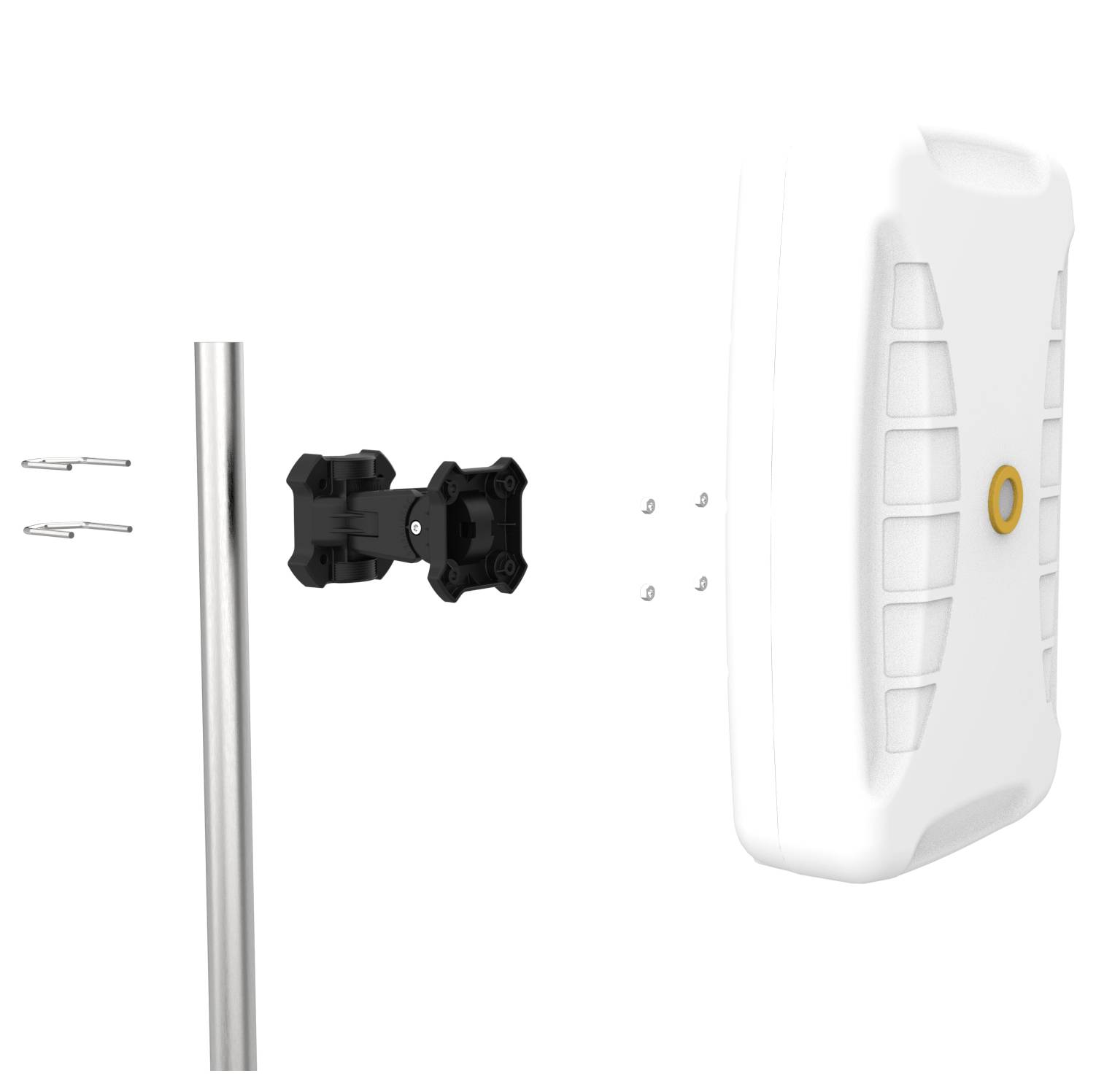

Exploded view of a white outdoor device with mounting hardware, showing a pole, bracket, screws, and the main unit with an orange-ringed button.

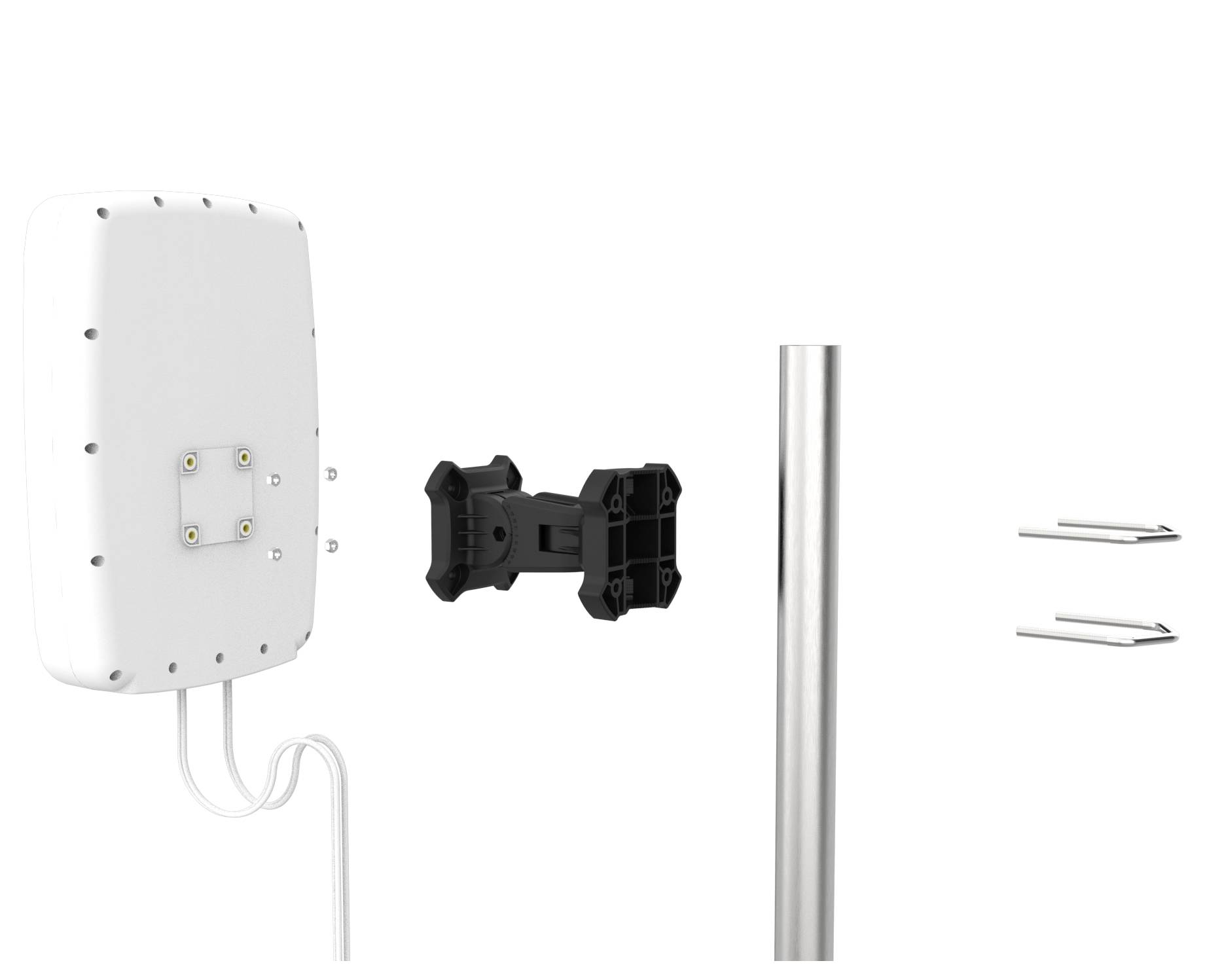

A white outdoor device with a cable, a black mounting bracket, and a metal pole, with arrows indicating the device attaches to the pole.

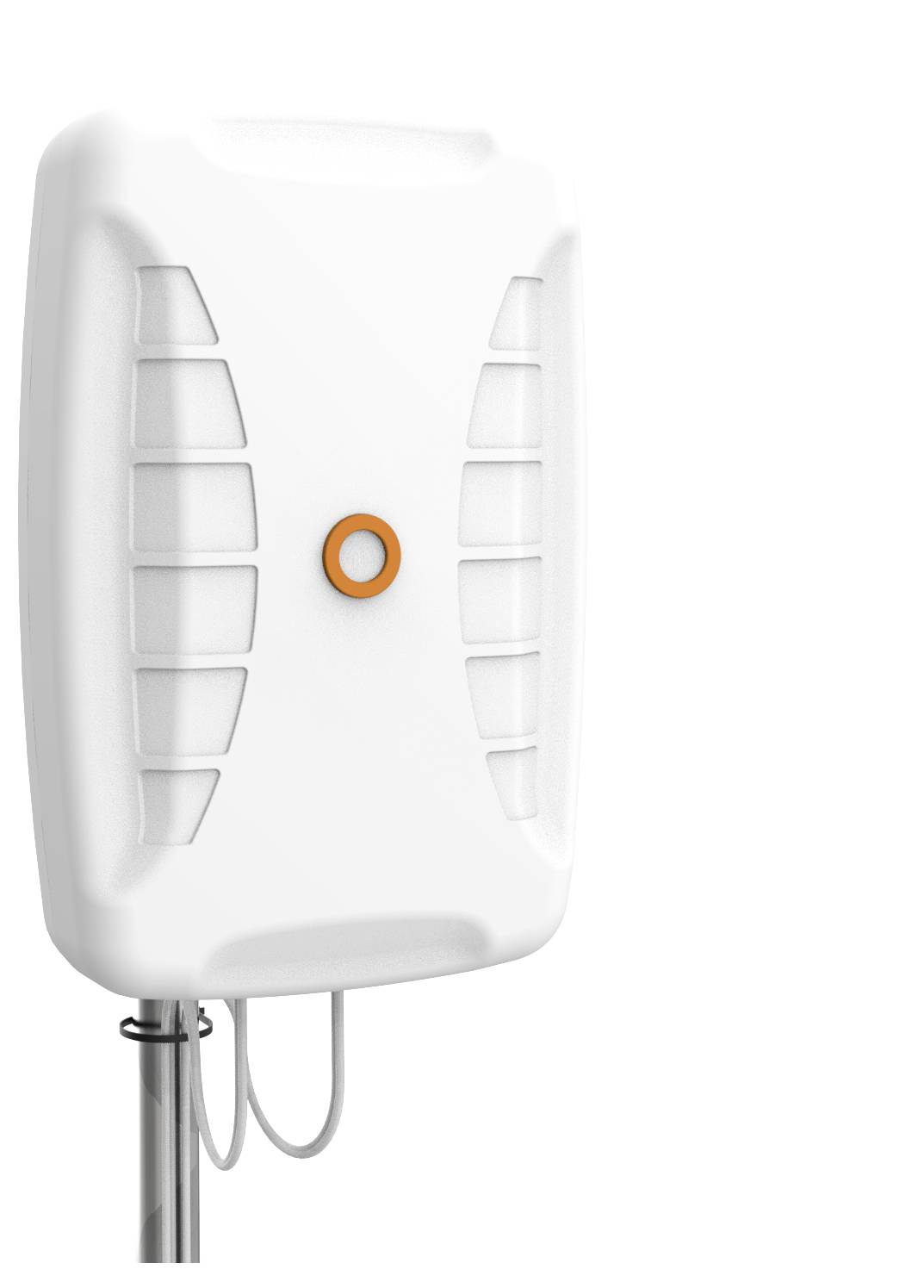

White wall-mounted medical device with vented side panels and an orange circular button, attached to a pole with cables below.

1/4

Poynting

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Poynting A-XPOL-0024-V1-02 network antenna Omni-directional antenna N-type 11 dBi

Highlights & Details

Extraordinary high performance antenna over the most important 5G/LTE tapes
New advanced metamaterial technology for high performance
Broadband 4x4 MIMO 5G/LTE antenna from 617 to 4200 MHz
Four cross-polarized antennas in a single housing
Weather, dust and vandal-proof housing with protection class IP65

Technical specifications

0,617 - 4.2 GHz

Product type: LTE antenna

Gain: 11 dBi

Antenna socket: N socket

Weight: 2.56 kg

Polarisation: Horizontal
Vertical

Width: 290 mm

Height: 110 mm

Factory colour: White

Impedance: 50 Ω

: IP65

UKCA: yes

Operating temperature (T-T): -40 - 80 °C

Storage relative humidity (H-H): 5 - 95 %

Ultraviolet (UV) resistant: yes

Quantity per pack: 1 Stück(e)

Survival wind speed: 160 km/h

Power handling: 10 W

Storage temperature (T-T): -40 - 80 °C

Package weight: 3.88 kg

Documents & Downloads

Datasheet

Datasheet 3790002 Poynting XPOL-24 A-XPOL-0024-V1-02 LTE antenna 11 dBi

User & Safety Instructions

User & Safety Instructions 3790002 Poynting XPOL-24 A-XPOL-0024-V1-02 LTE antenna 11 dBi

Description

The XPOL-24 is equipped with the latest metamaterials technology and an artificial magnetic conductor (AMC) for superior bandwidth and amplification. This ensures exceptional performance for both current and future 5G/LTE networks.
