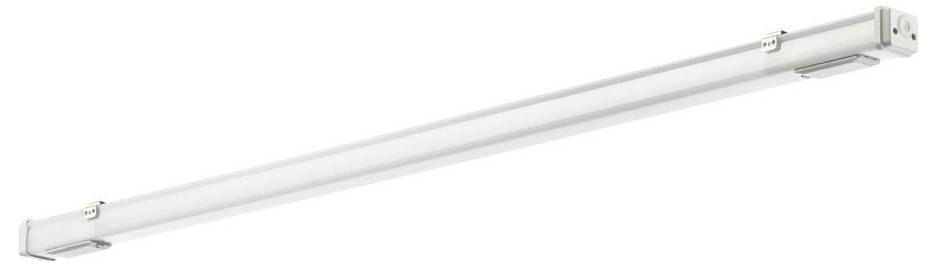

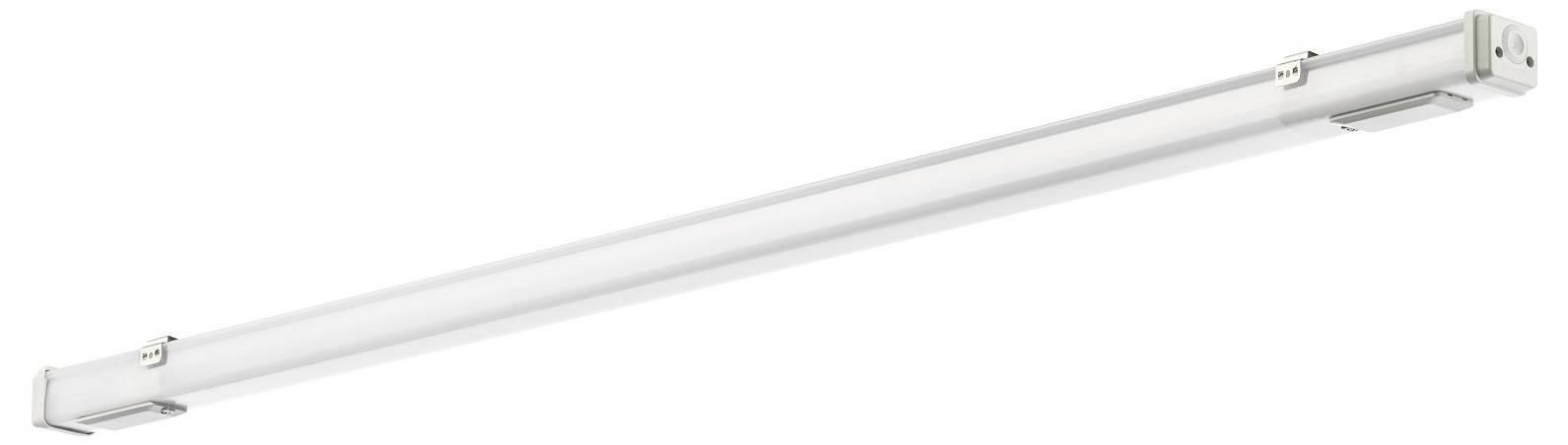

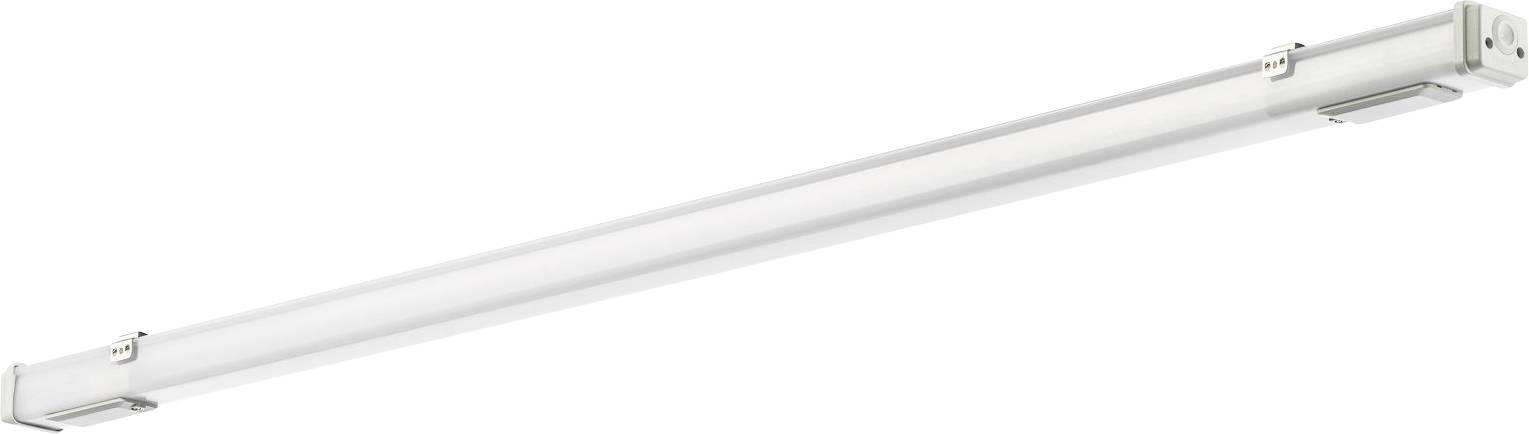

Pracht 9131120 LED wet room light LED (monochrome) 25 W White White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Splacht LED-Damp room lamp 4000K IP66 KATLA LED #9131120
- Power= 25 W
- Total luminous flux= 2700 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Connection type: Plug-in terminal
- Type of wiring: With through-wiring
- Rated ambient temperature -20 °C - +35 °C.
- Operating device: Voltage-controlled LED operating device
- Dimming depends on the operating device: Yes
- Suitable for installation: Yes
- LED nominal current at constant current 250 mA
- Conductor cross-section 1.5 mm²
- Light output 108 lm/W
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Number of poles: 3
- Protection class: I
- Product type
LED wet room light
- Type
Planar
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
25 W
- Length
1205 mm
25 W
- Height
62 mm
- Width
59 mm
4000 K
- Colour
White
2700 lm
- Total luminous flux
2700 lm
- Light features
Suitable for wall mounting
Ceiling mount option
IP66
- Factory colour
White
- Material
Plastic
- Dim

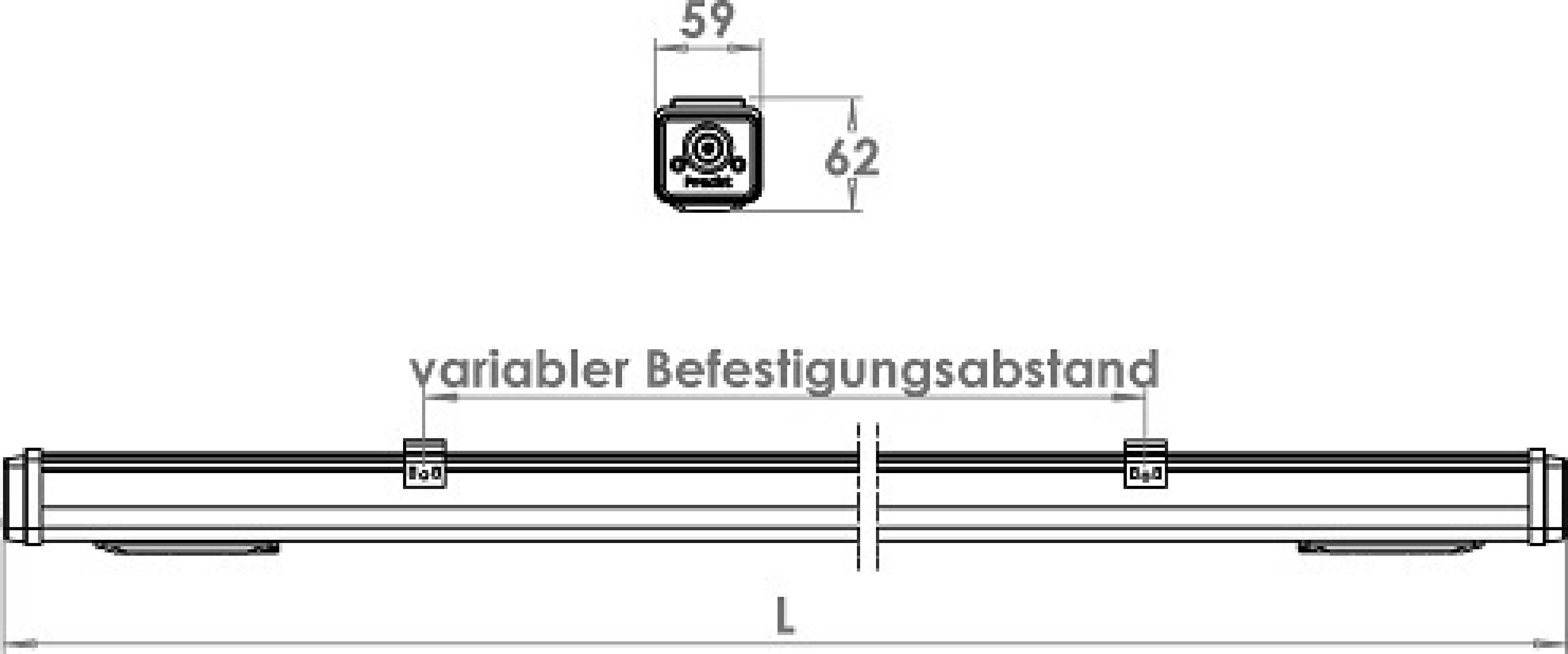

(L x W x H) 1205 x 59 x 62 mm
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2337394 Pracht 9131120 LED wet room light LED (monochrome) 25 W White White
User & Safety Instructions
User & Safety Instructions 2337394 Pracht 9131120 LED wet room light LED (monochrome) 25 W White White
Description

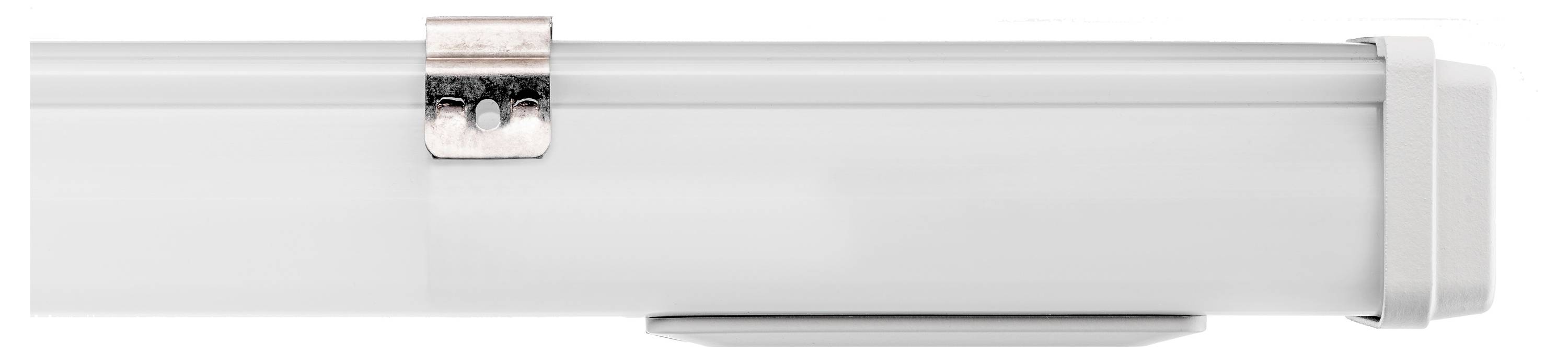

LED lamp with narrow, flat, shapely, all-round closed lamp housing made of transparent, opalised polycarbonate (impact-resistant), end pieces made of PBT (impact-resistant), short, age-resistant seals, simple installation by two spacious light band connection rooms, high-performance LED, wide-beam with ceiling brightening, converter installed in the housing, converter and LED modules are easily changeable, variable mounting distances by SUPERB STEEL BRACKETS Suitable for ceiling and wall mounting, pendant mounting possible with accessories
