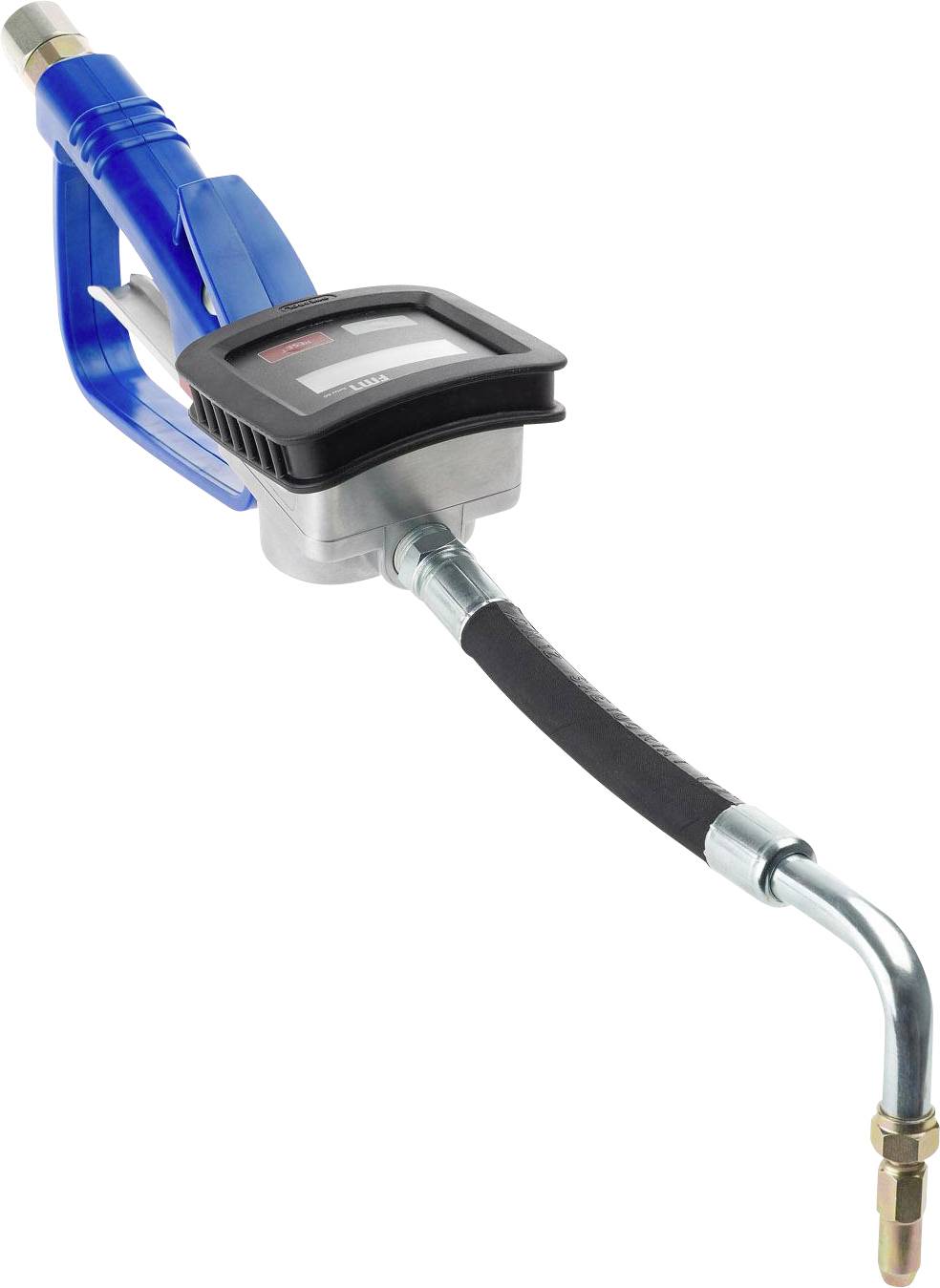

Pressol 19700 NEF Handheld digital counter
EAN:
Part number:
Item no:
Number
Total (€ 247.90 / piece)
€ 247.90
plus VAT.
14-day return policy included
Technical specifications
- Connection thread: G 1/2'' BSP
- Nominal diameter: DN 12
- Measuring principle: Oval wheels
- Typical media: Radiator fluid, antifreeze
- Flow rate: 1 - 35 l/min.
- Viscosity: 8 - 5000 MPa s
- Nominal pressure 70 bar
- Operating pressure: Min. 0.35
- Temperature range -10 to +50 °C)
- Measuring accuracy ± 0.5 %
- Repeatability ± 0.3%
- Resolution 0.002 l
- Pulses 216 pulses/l
- Design: Non-calibratable (NEF)
- Housing material: Die-cast aluminum
- Display: digital, three decimal places and two decimal places
- Digit height: 8 mm
- Battery type LR1 1.5 V
- Battery life: Approx. 2 years at 0.5 h operation per day (20 °C)
- Product type
Handheld digital counter
- Weight
1.92 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373575 Pressol 19700 NEF Handheld digital counter
Description
· Discharge hose with 90° angle and anti-drip mouthpiece, can be closed manually
· Swivel joint (19 616)
· Valve
Special features:
· Housing including the chamber for the electronics of die-cast aluminum, cast skin is not machined
· Shock-proof electronics
· easy to read 5-digit display
· Display reset
· Rubber buffer provides shock protection in hard use
· The measuring accuracy can be adjusted to the viscosity via the calibration factor are
· User-adjustable display units: Liters + gallons
