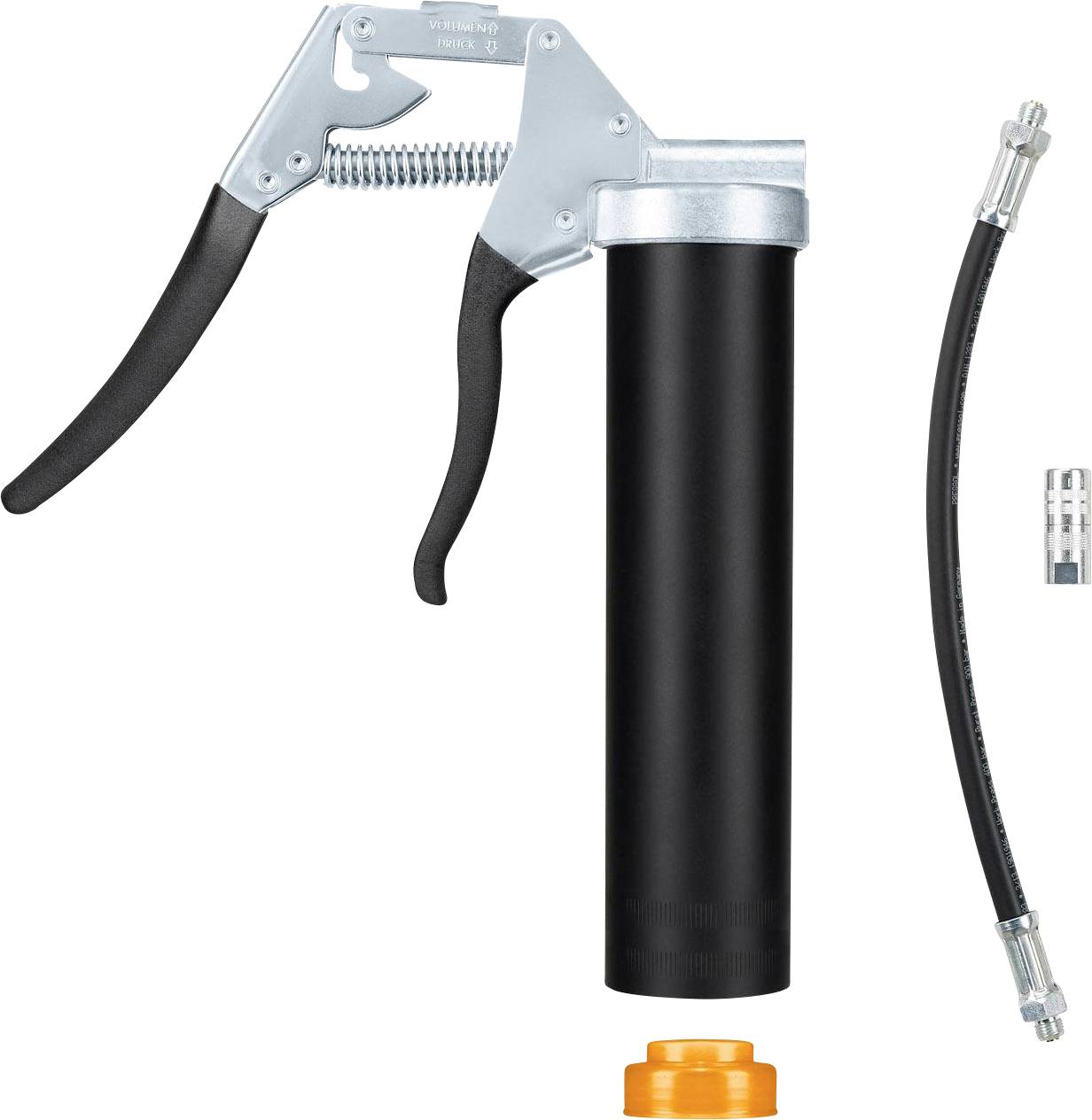

Pressol easyFILL ONE 400 M 10 x 1 14700001 Grease gun Set
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Grease gun connection on pressure side: M 10 x 1
- Filling volume: 400cm³
- Filling options: 400 g grease cartridge, DIN 1284 (12 511), (12 514)
- Operation of the grease pump piston: Manually using the pressure handle
- Volume setting:
- Delivery volume/stroke: 1.1 cm³
- Discharge pressure max. 200 bar
- Pressure setting:
- Delivery volume/stroke: 0.7 cm³
- Discharge pressure max. 300 bar
- Paint grease gun tube: Black
- Weight: 1.01 kg
- Product type
Grease gun
- Content
1 Set
- Width
165 mm
- Height
66 mm
- Length
300 mm
Documents & Downloads
Datasheet
Datasheet 2373641 Pressol easyFILL ONE 400 M 10 x 1 14700001 Grease gun Set
User & Safety Instructions
User & Safety Instructions 2373641 Pressol easyFILL ONE 400 M 10 x 1 14700001 Grease gun Set
Description
Special features:
· The design allows for one-hand lubrication, which makes it easier to work with difficult to access lubrication points
· Can be switched from a grease delivery with Hohem volume to high pressure with the hand grip
· Problem-free cleaning is possible due to the easy dismantling
· Rolled thread on the grease gun tube is resistant to damage through impact and allows fast and easy screwing with 1.5 turns
· Rapid ventilation through half a rotation of the grease gun tube
· Designed for heavy-duty use
· Based on DIN 1283
This text is machine translated.
Features
- Armoured hose, M 10 x 1 a, 11 x 300 mm, with sealing ring (12 655 828)
- Precision mouthpiece, 4 BA, M 10 x 1 i (12 643)
- Fat follow-up piston, 10 (14 900)
- Galvanized parts: Handle, lever, pull-tab
- Grease gun head made of die-cast zinc Z 410
- Ergonomic handle, non-slip, very good power transfer and handling
