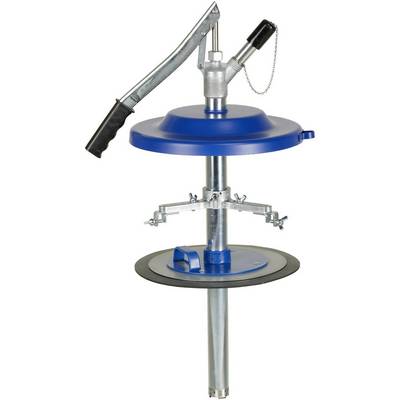

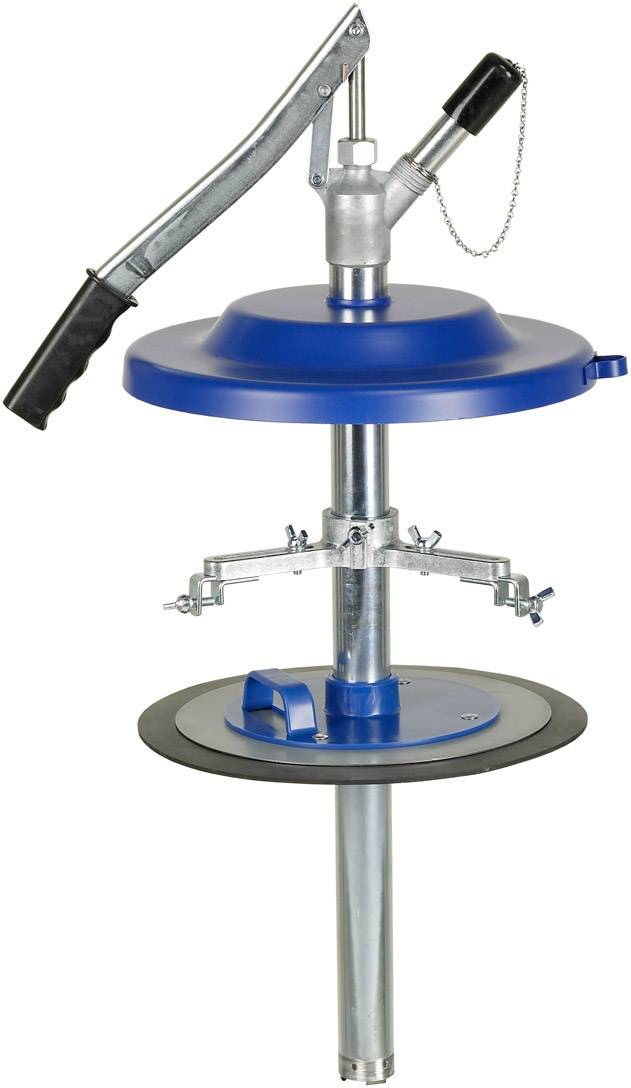

Pressol PRESSOL 17815 Grease gun refill Suitable for (lubricants) 15 kg grease buckets mechanical
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Hand operated grease cartridge 15 kg loading diameter 240-270 mm
- For 15 kg container
- Piston diameter 240 - 270 mm fat sequence
- Suction tube length 510 mm
- This text is machine translated.
Technical specifications
- Suitable for: 15 kg grease buckets with inner diameter 240 - 270 mm
- Product type
Grease gun refill
- Max. feed rate
30 cm³
- Operation type
mechanical
- Material
Steel
Zinc (die-cast)
- Content
1 pc(s)
- Operating pressure
8 bar
- Suitable for
15 kg grease buckets
- Feed rate
30 cm³
Documents & Downloads
Datasheet
Datasheet 1365461 Pressol PRESSOL 17815 Grease gun refill Suitable for (lubricants) 15 kg grease buckets mechanical
User & Safety Instructions
User & Safety Instructions 1365461 Pressol PRESSOL 17815 Grease gun refill Suitable for (lubricants) 15 kg grease buckets mechanical
Description
Features
- For filling lever, single-hand and compressed air grease gun
- For lubricating greases to NLGI 2
- Fat promotion via hand pump
- For grease gun with filling nipple
- Steel Pump Body
- Pump head impact-resistant die-cast zinc
- All parts are steel galvanised
- Pump
- Suction pipe
- Dust cover, tank mounting and grease sequence piston
- Filling nipple, M10 x 1, loose included, for converting grease gun other brands
- Dust cap at full coupling with chain secured
- This text is machine translated.
