Buy Primus WindPower 1-AR30-10-48 AIR 30 Wind turbine Performance (at 10m/s) 320 W 48 V

A wind turbine with three black rotor blades on a metal mast; the model is called 'AIR 40'.

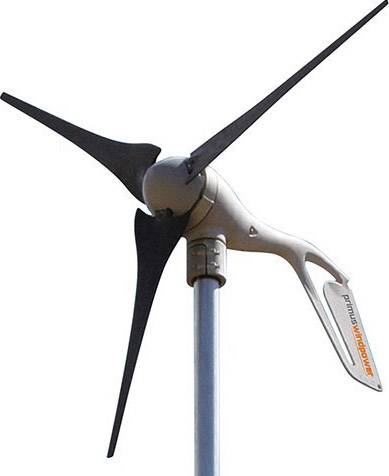

Primus WindPower 1-AR30-10-48 AIR 30 Wind turbine Performance (at 10m/s) 320 W 48 V-1

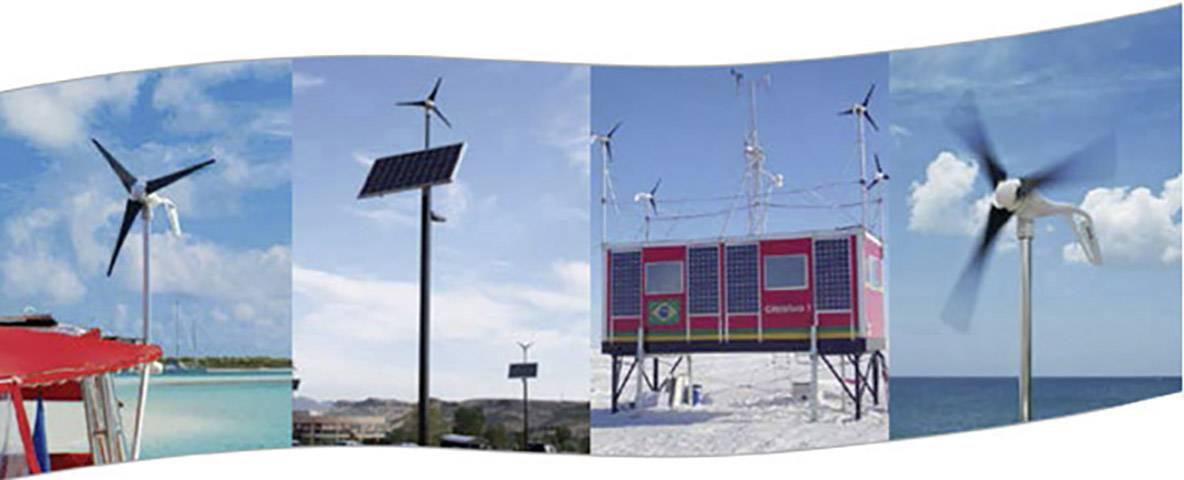

Renewable Energy Sources: Small Wind Turbines and Solar Modules in Various Landscapes, Including Coastline and Desert.

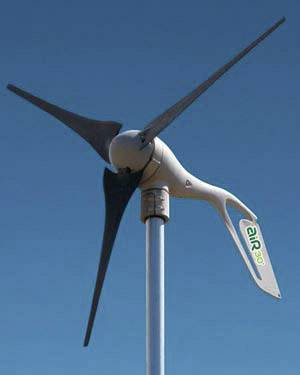

Small wind turbine with three black rotor blades against a blue sky. Fan blade on the right labelled 'AIR 30'.

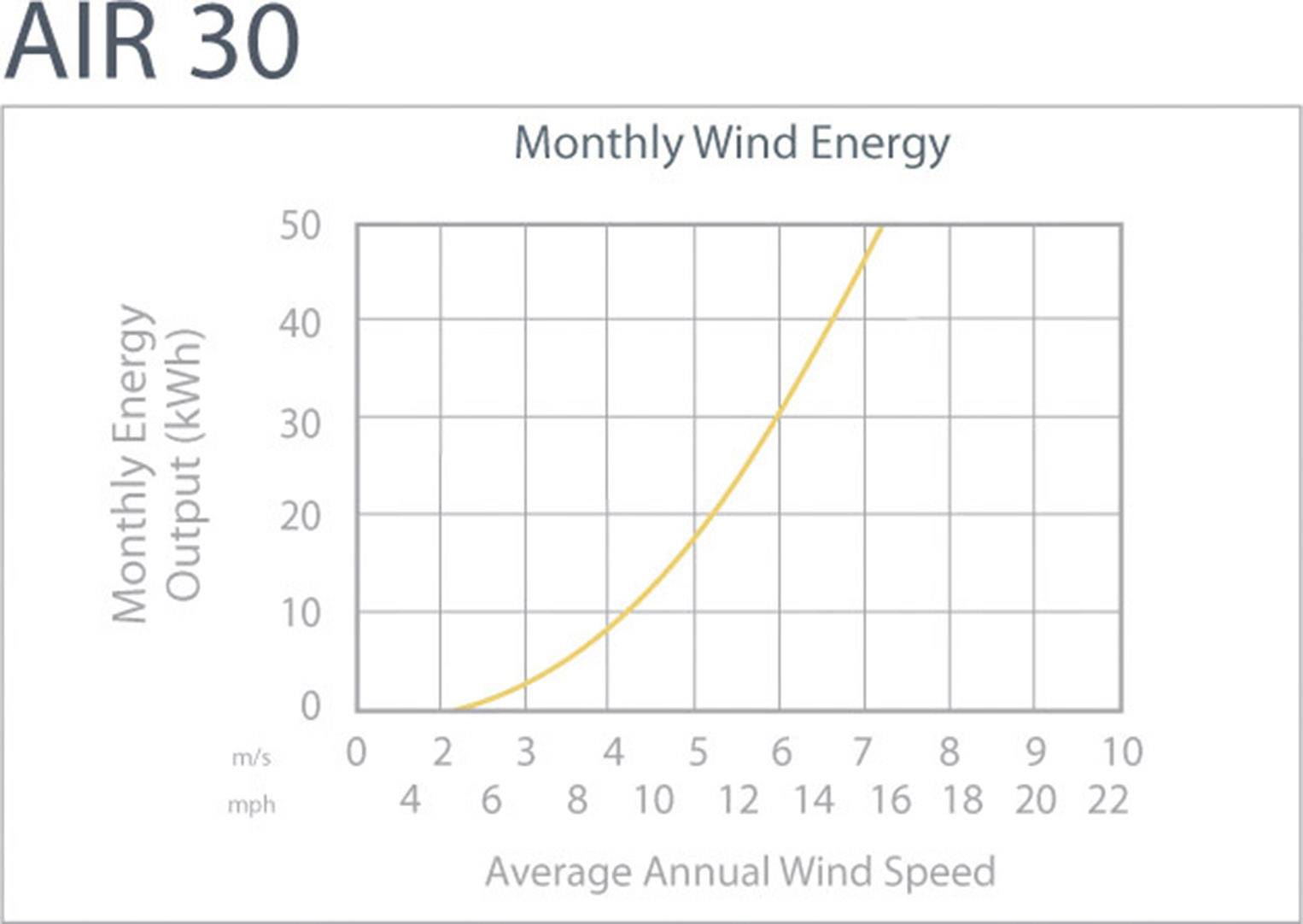

The diagram 'Monthly Wind Energy' shows the monthly energy yield in kWh against the average annual wind speed in m/s, with a steeply rising trend.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Wind-generator AIR 30, 48 V

Integrated charge controller
Is suitable for hybrid systems with Solar
Highly developed micro-processor for a reliable power generation

Technical specifications

Product type: Wind turbine

Performance (at 10m/s): 320 W

Mast diameter: 48 mm

Nominal voltage: 48 V

Main rotor Ø: 117 cm

Max. temperature: +40 °C

Weight: 6 kg

Max. power: 1570 W

Depth: 675 mm

Surface of revolution: 1.37 m²

Take-off speed: 3.6 m/s

Min. temperature: -10 °C

Wind speed (max.): 177 km/h

Documents & Downloads

Datasheet

Datasheet 1848993 Primus WindPower 1-AR30-10-48 AIR 30 Wind turbine Performance (at 10m/s) 320 W 48 V

User & Safety Instructions

User & Safety Instructions 1848993 Primus WindPower 1-AR30-10-48 AIR 30 Wind turbine Performance (at 10m/s) 320 W 48 V

Description

You can use environment-friendly and free electricity from wind energy.
The AIR 30 is an efficient and powerful wind generator and can be used individually or in hybrid systems. The innovative software enables a high and reliable energy generation. Thanks to the integrated charging controller, the wind generator is directly connected to a battery angel shot. The ideal wind generator for garden houses, Camping, mountain hut and many other applications.

This text is machine translated.

Features

Integrated charge controller
Is suitable for hybrid systems with Solar
Higher energy yield even at low wind speeds
Brushless Generator with permanent magnet
Microprocessor-controlled
Low maintenance
Robust aluminium enclosure
Easy to set up
Overcharge protection
With speed exceeding protection
Wing made of composite material for long life
LED display

Scope of delivery

Wind generator
User manual.
