Buy Primus WindPower 1-ARXM-10-48 AIR X Marine Wind turbine Performance (at 10m/s) 320 W 48 V

A modern wind turbine with three long, black rotor blades and a white housing, suitable for alternative energy generation.

A small wind turbine with three rotor blades and a modern design against a blue and white background, symbolising renewable energy.

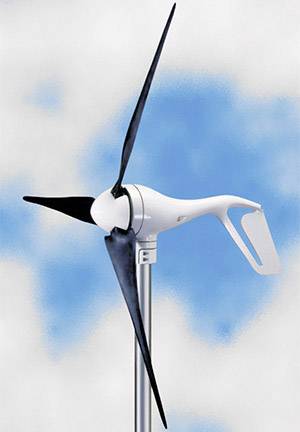

Wind turbine with three black and white rotor blades against a blue and white sky, symbolising renewable energy and environmentally friendly technology.

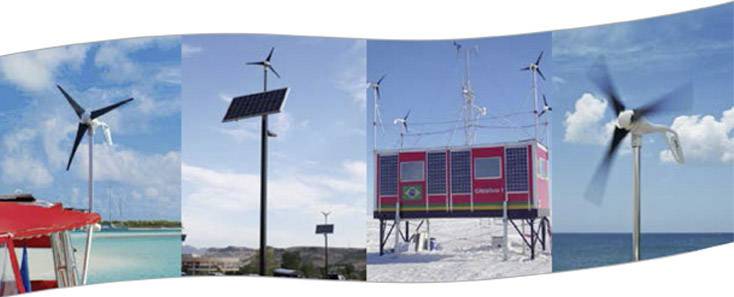

Diverse wind turbines and solar panels in a coastal environment, demonstrating renewable energy technologies and sustainability in action.

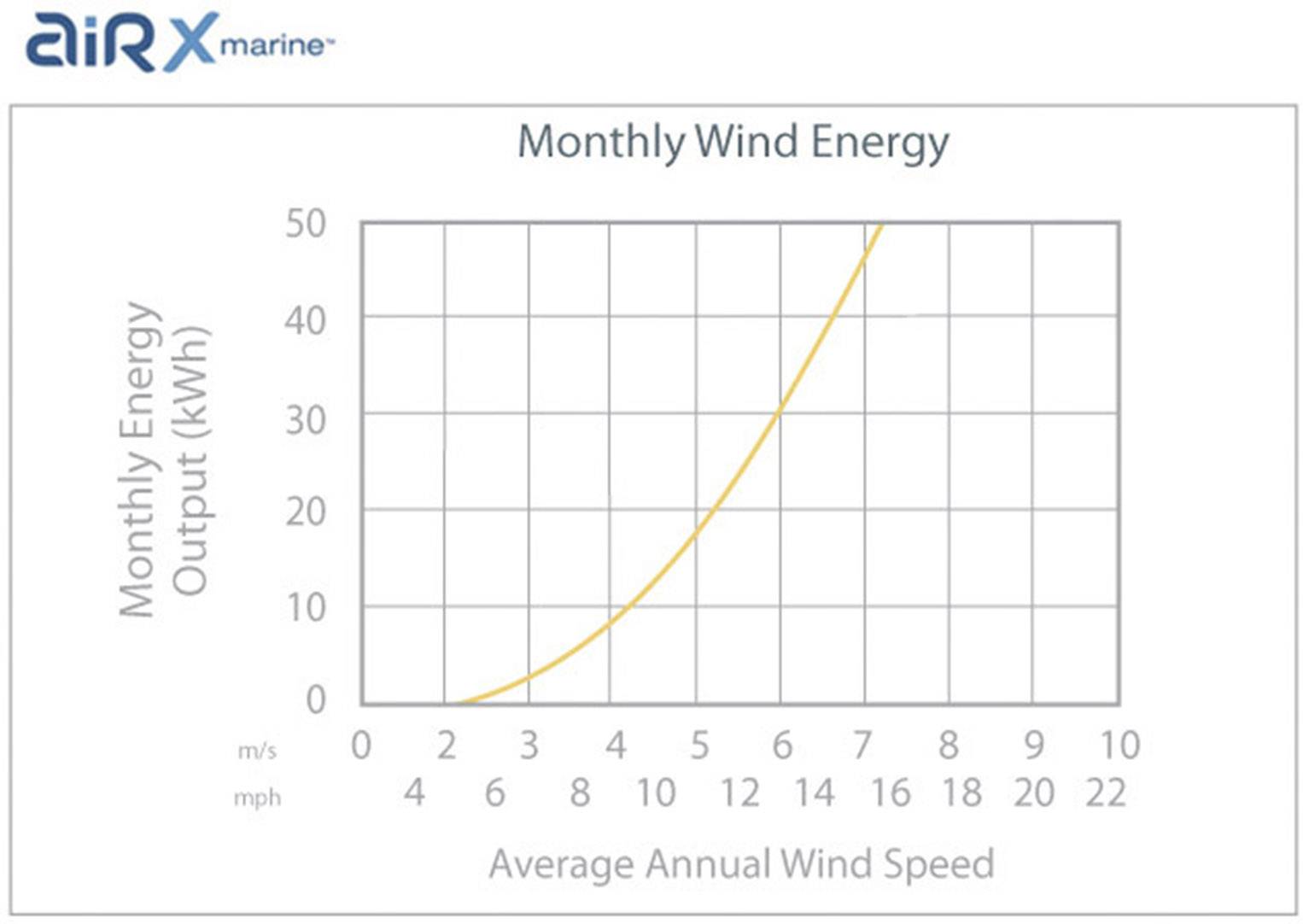

'Monthly Wind Energy' Diagram shows the monthly energy yield in kWh from 0 to 50 in relation to the average annual wind speed in m/s from 2 to 22. Trend rises steeply.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Wind generator AIR X Marine, 48V

Integrated charge controller
Is ideal for small coastal industrial applications
Highly developed micro-processor for a reliable power generation

Technical specifications

Rotor blades: Carbon thermo-plastic
Monthly energy yield: 38 kWh at 5.4 m/s.

Product type: Wind turbine

Performance (at 10m/s): 320 W

Mast diameter: 48 mm

Nominal voltage: 48 V

Main rotor Ø: 115 cm

Max. temperature: +40 °C

Weight: 5.85 kg

Max. power: 1570 W

Depth: 675 mm

Surface of revolution: 1.32 m²

Take-off speed: 3.58 m/s

Min. temperature: -10 °C

Wind speed (max.): 177 km/h

Documents & Downloads

Datasheet

Datasheet 1848989 Primus WindPower 1-ARXM-10-48 AIR X Marine Wind turbine Performance (at 10m/s) 320 W 48 V

User & Safety Instructions

User & Safety Instructions 1848989 Primus WindPower 1-ARXM-10-48 AIR X Marine Wind turbine Performance (at 10m/s) 320 W 48 V

Description

You can use environment-friendly and free electricity from wind energy.
The AIR X is an efficient and powerful wind-generator and is particularly suitable for small coastal industrial applications. The innovative software enables a high and reliable energy generation. Thanks to the integrated charging controller, the wind generator is directly connected to a battery angel shot. Recommended applications are offshore oil rigs, buoys and coastal installations and many other applications.

This text is machine translated.

Features

Integrated charge controller
Salt water resistant
Higher energy yield even at low wind speeds
Brushless Generator with permanent magnet
Microprocessor-controlled
Low maintenance
Rugged powder-coated aluminum housing
Easy to set up
Overcharge protection
With speed exceeding protection
Wing made of composite material for long life
LED display
Electronic speed monitoring

Scope of delivery

Wind generator
User manual.
