Pro Valve Directly actuated pneumatic valve C205DEZ77 24 V DC G 1/2 OFF/NC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Pro Valve Directly actuated pneumatic valve C205DEZ77 24 V DC G 1/2 OFF/NC 1 pc(s)
Technical specifications
- Product type
Directly actuated pneumatic valve
- Operating voltage
24 V DC
- Max. operating pressure
5 bar
- Connection
G 1/2
- Media temperature (range)
-10 up to +90 °C
- Manufacturer part #
C205DEZ77
- Operating pressure (min.)
0.3 bar
- Sealant
EPDM
- Function
2/2-way
- Max. media temperature
+90 °C
- Media temperature (min.)
-10 °C
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- Operating principle
OFF/NC
- KV value
63
Documents & Downloads
Datasheet
Datasheet 583554 Pro Valve Directly actuated pneumatic valve C205DEZ77 24 V DC G 1/2 OFF/NC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 583554 Pro Valve Directly actuated pneumatic valve C205DEZ77 24 V DC G 1/2 OFF/NC 1 pc(s)
Description

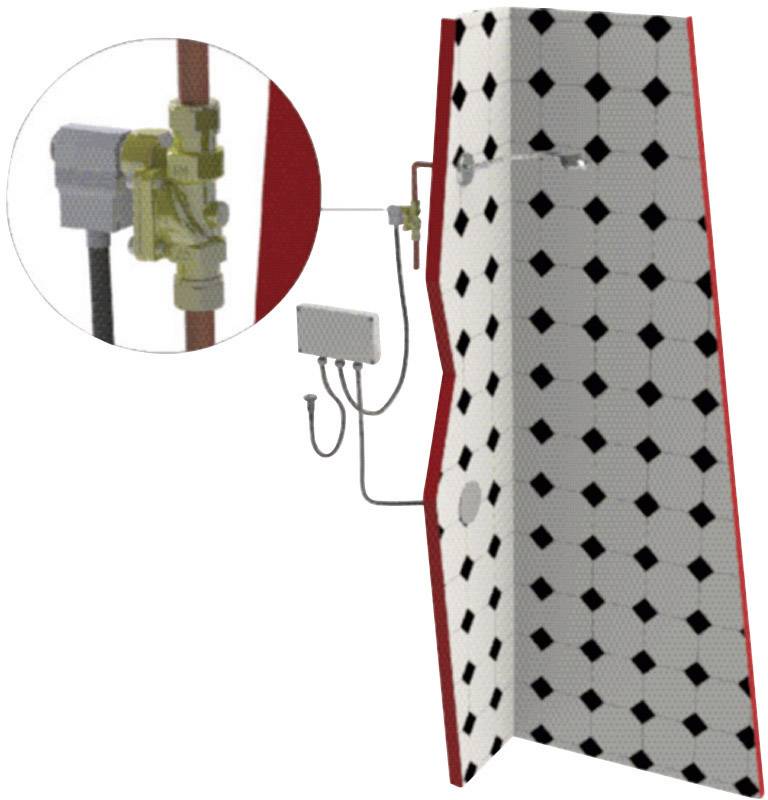

The newly developed valve with two integrated 15 mm compression rings and direct connection possibility to a copper water tube. The servo-controlled valve, despite the low power a very high kv-value. It is ideal for use in the sanitary area, whereby the ground wire is not interrupted. In addition, the valve water beat in the line. Through the integrated compression rings, this valve compact, fast and easy to install.
Applications: Aquarium, terrarium, Spa Bath, Shower, car wash, garden, irrigation, coffee machines, cooling, and much more.
This text is machine translated.
Applications: Aquarium, terrarium, Spa Bath, Shower, car wash, garden, irrigation, coffee machines, cooling, and much more.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
