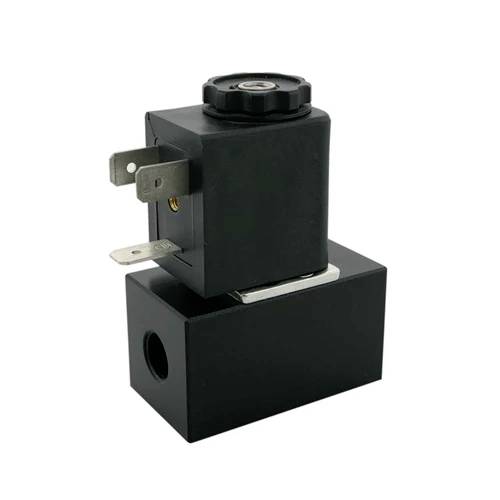

Pro Valve Magnetic valve 631.06.04132.12VDC 12 V DC 6 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
Technical specifications
- Opening area 1.2 mm
- Product type
Magnetic valve
- Operating voltage
12 V DC
- Max. operating pressure
10 bar
- Enclosure material
POM
- Connection
6 mm
- Media temperature (range)
-5 up to +105 °C
- Manufacturer part #
631.06.04132.12VDC
- Sealant
NBR
- Function
3/2-way
- Max. media temperature
+105 °C
- Media temperature (min.)
-5 °C
Documents & Downloads
Datasheet
Datasheet 3028512 Pro Valve Magnetic valve 631.06.04132.12VDC 12 V DC 6 mm 1 pc(s)
Description
3/2-way solenoid valve 6 mm hose connection. Body: POM (rotated), Seal: NBR. Pilot made of stainless steel, diameter 1.2 mm. Connection voltage 12 V/DC
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
