Pro Valve Magnetic valve 721.34M10.01393.24 24 V DC G 3/4 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Technical specifications
- Opening area 9 mm
- Product type
Magnetic valve
- Operating voltage
24 V DC
- Max. operating pressure
10 bar
- Enclosure material
Polyamide
- Connection
G 3/4
- Manufacturer part #
721.34M10.01393.24
- Operating pressure (min.)
0.2 bar
- Sealant
EPDM
- Function
2/2-way
Documents & Downloads
Datasheet
Datasheet 3028503 Pro Valve Magnetic valve 721.34M10.01393.24 24 V DC G 3/4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3028503 Pro Valve Magnetic valve 721.34M10.01393.24 24 V DC G 3/4 1 pc(s)
Description

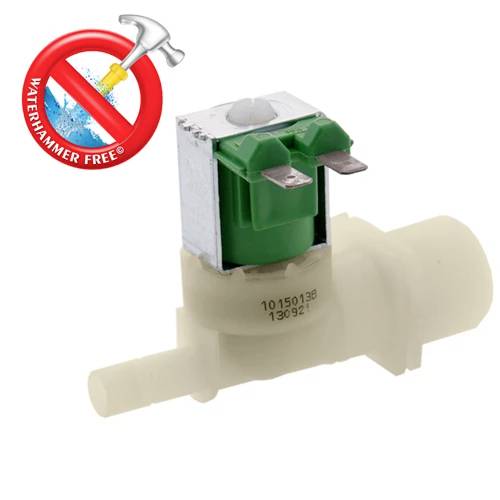

Universal 2-way solenoid valve of the CWS FOOD series, suitable for drinking water. See Certification. This water inlet valve has an EPDM membrane and a plastic housing: Connectors:P1 has external G3/4 inch thread with output connector: 10 mm handle nipple with many connection options.
Coil:24 VDC – 8 W
Special feature: Anti-water impact design, also with inlet filter
This text is machine translated.
Coil:24 VDC – 8 W
Special feature: Anti-water impact design, also with inlet filter
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
