ProCar Power USB-C install socket PD/QC 60 Watt without LED 12 V, 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

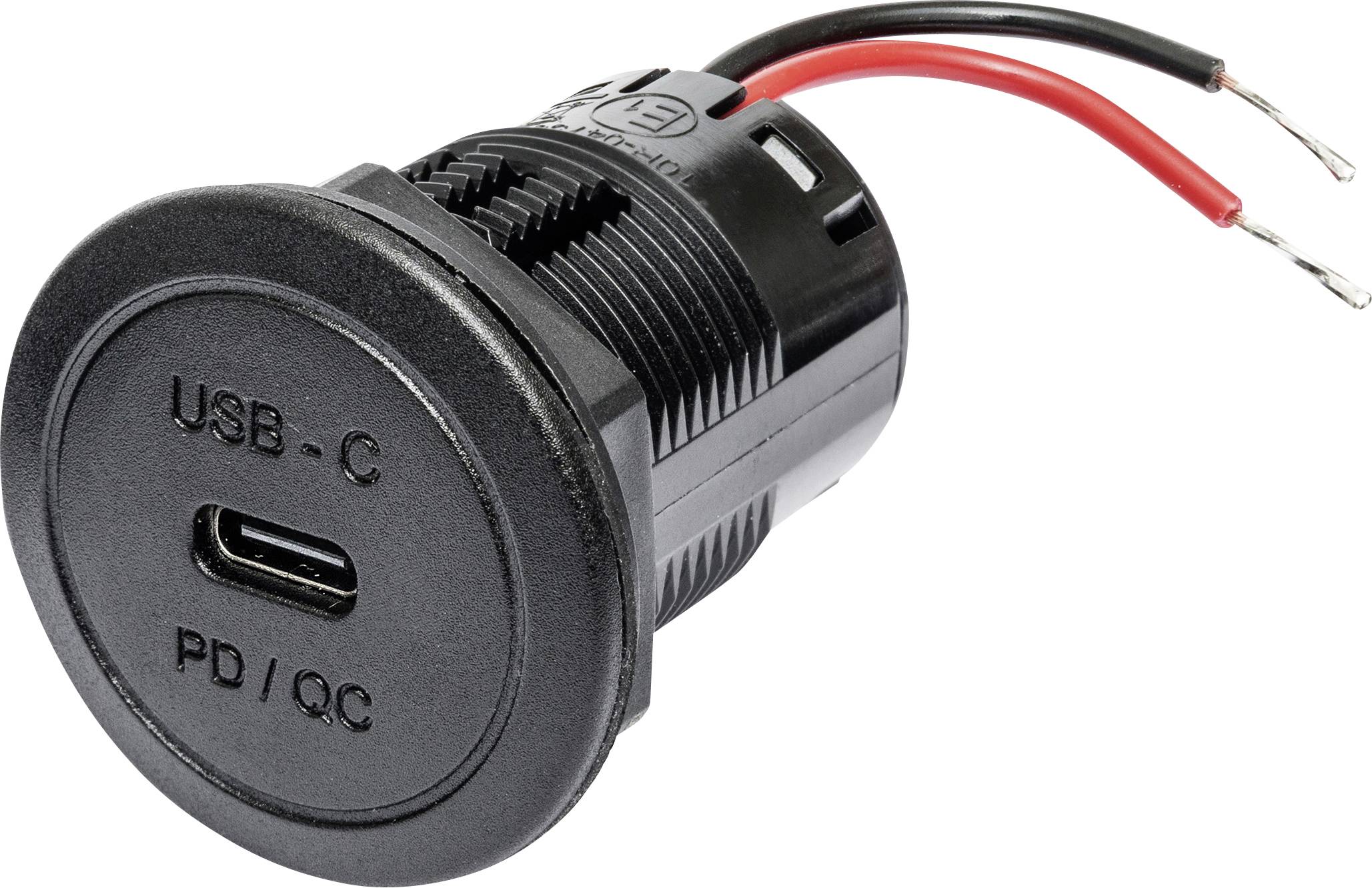

Power USB-C install socket PD/QC 60 Watt without LED
- 60 Watt!
- Protection from: Reverse polarity, overload, excess temperature, over voltage, short circuit.
- E1 approval
- Supports fast charging function Power delivery and quick charge, PPS, etc., with step-up converter
Technical specifications
- Input 8-30 volt DC
- Output 1x port C: 5-20 Volt DC, max. 3 A / 60 Watt
- E1 approval
- Own consumption 5 mA
- Overload, overheating, over-voltage, polarity reversal, short-circuit

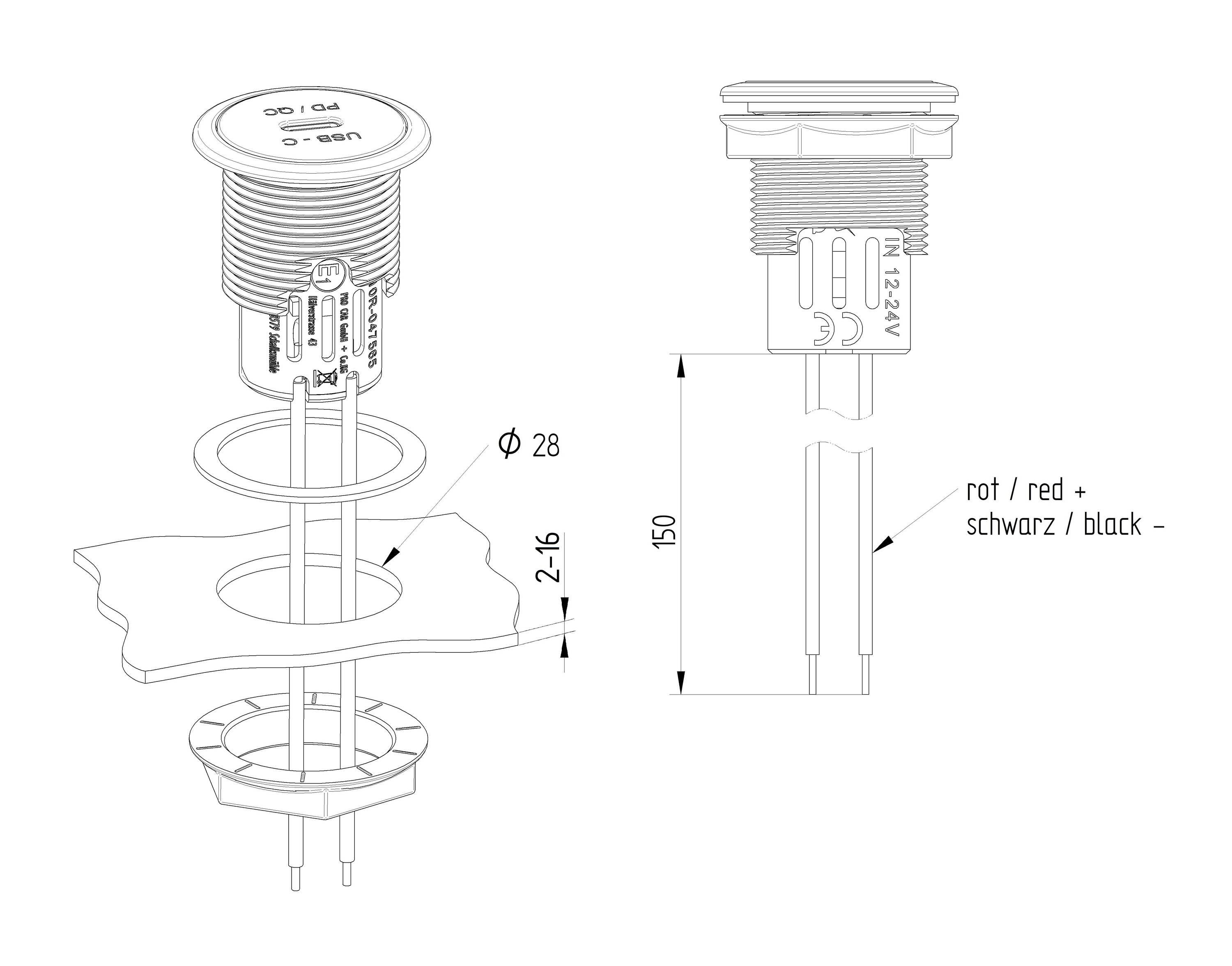

- Mounting hole Ø 28 mm, panel thickness 2-16 mm
- Fixing using hex nut
- Cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm2
- Connection
2-core
- Operating voltage
12 V
24 V
- Dim
- Factory colour
Black
- Width
36 mm
- Connection A
USB-C®
- Connection B
Open ends
- Product type
Power socket
Documents & Downloads
Datasheet
Datasheet 3398291 ProCar Power USB-C install socket PD/QC 60 Watt without LED 12 V, 24 V
User & Safety Instructions
User & Safety Instructions 3398291 ProCar Power USB-C install socket PD/QC 60 Watt without LED 12 V, 24 V
Description
Power USB-C build-in socket PD/QC 60 Watt 12-24 V DC. Perfect for fast and mobile charging of latest-generation tablets, laptops and Smart phones. With integrated voltage converter and step-up converter: Compatible devices with an output voltage of 5-20 volt and an output of up to 60 watt can be charged at an input voltage of 12 volt.
Supports the fast charging procedures Power delivery, quick charge, PPS, etc.
