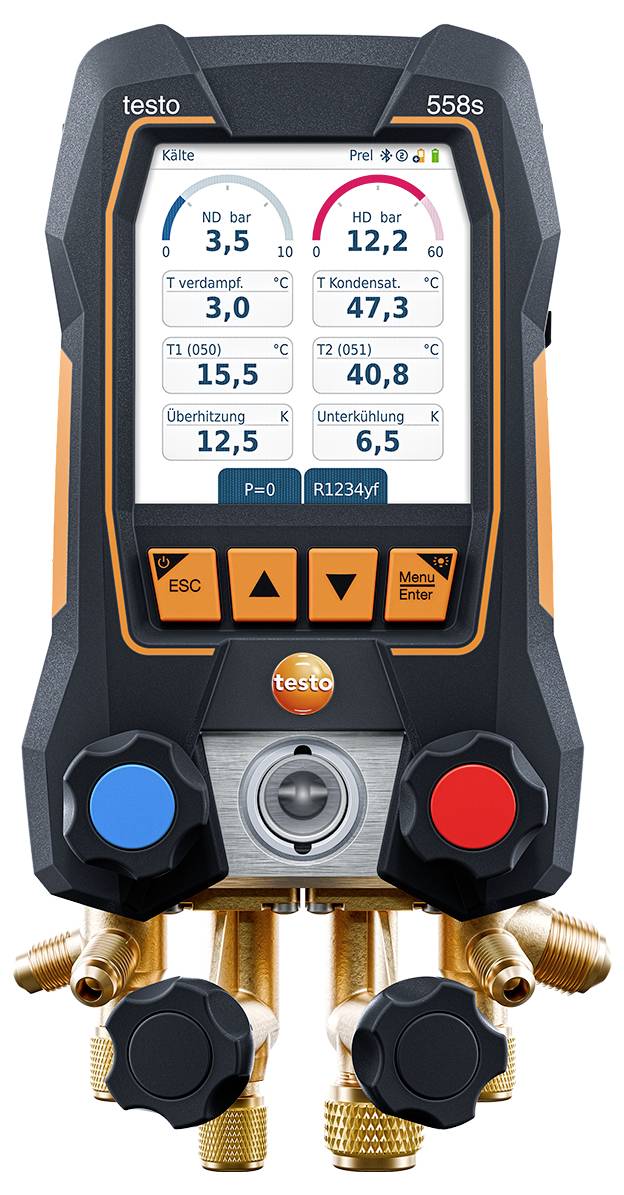

Digital manifold gauge with dual pressure and temperature display, color-coded dials, and labeled buttons used for HVAC diagnostics.

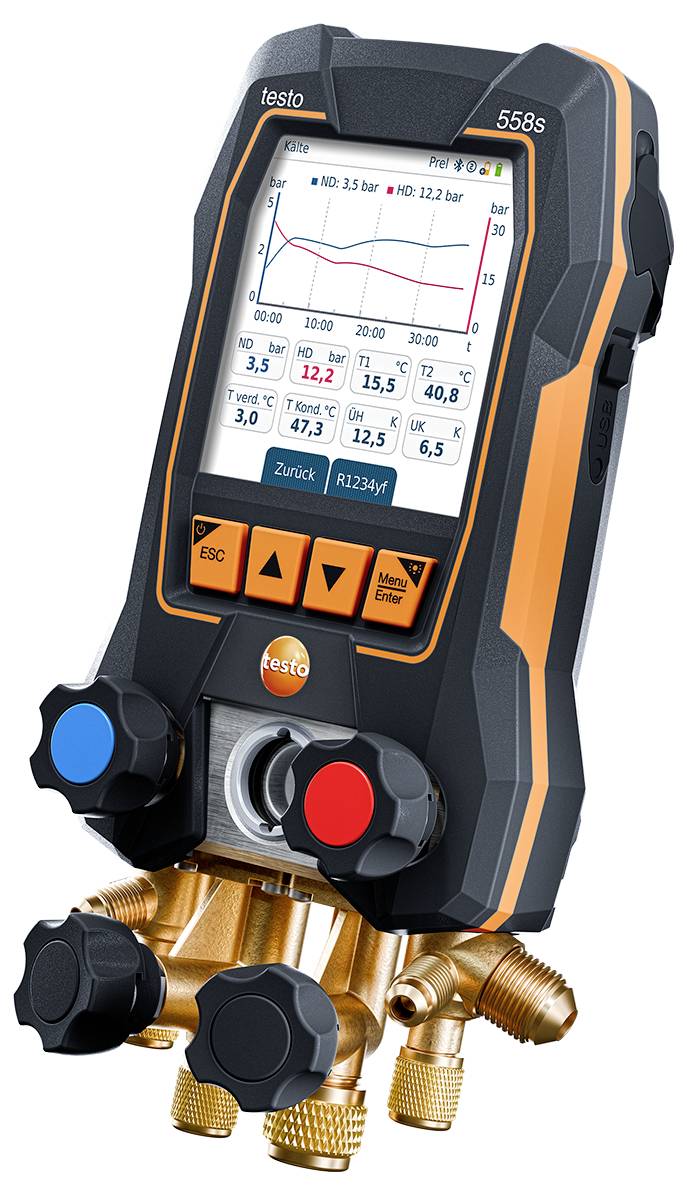

A digital manifold gauge with a screen displaying pressure readings, buttons for navigation, and multiple connection ports for HVAC servicing.

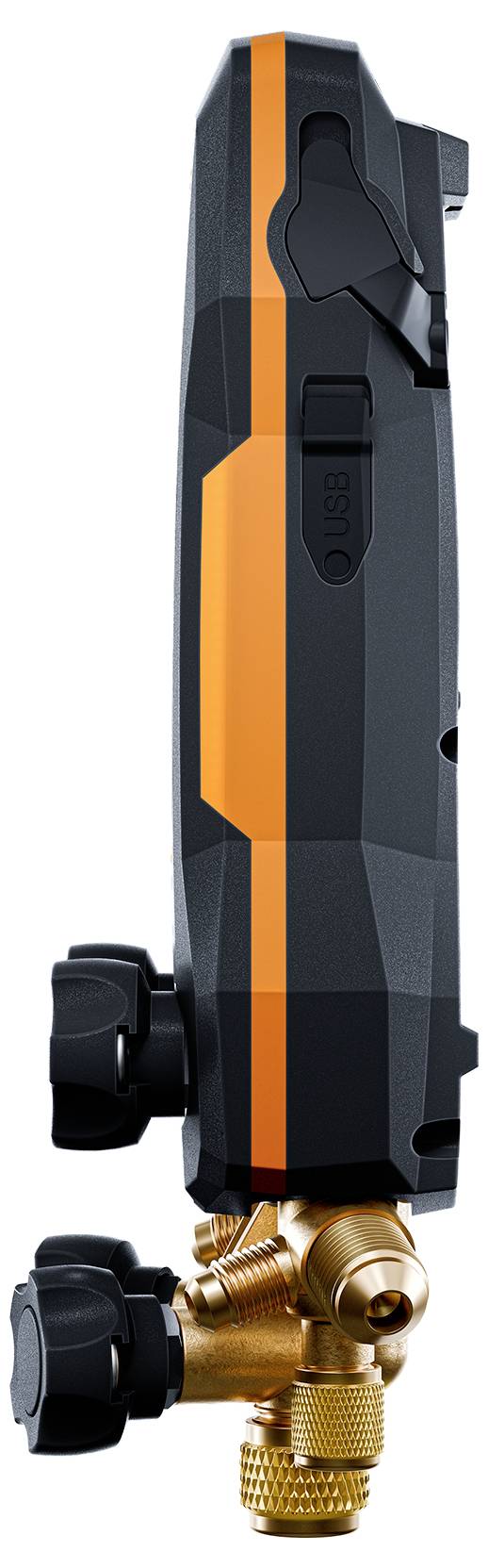

A digital manifold gauge with orange accents and multiple connection valves is shown in a product display.

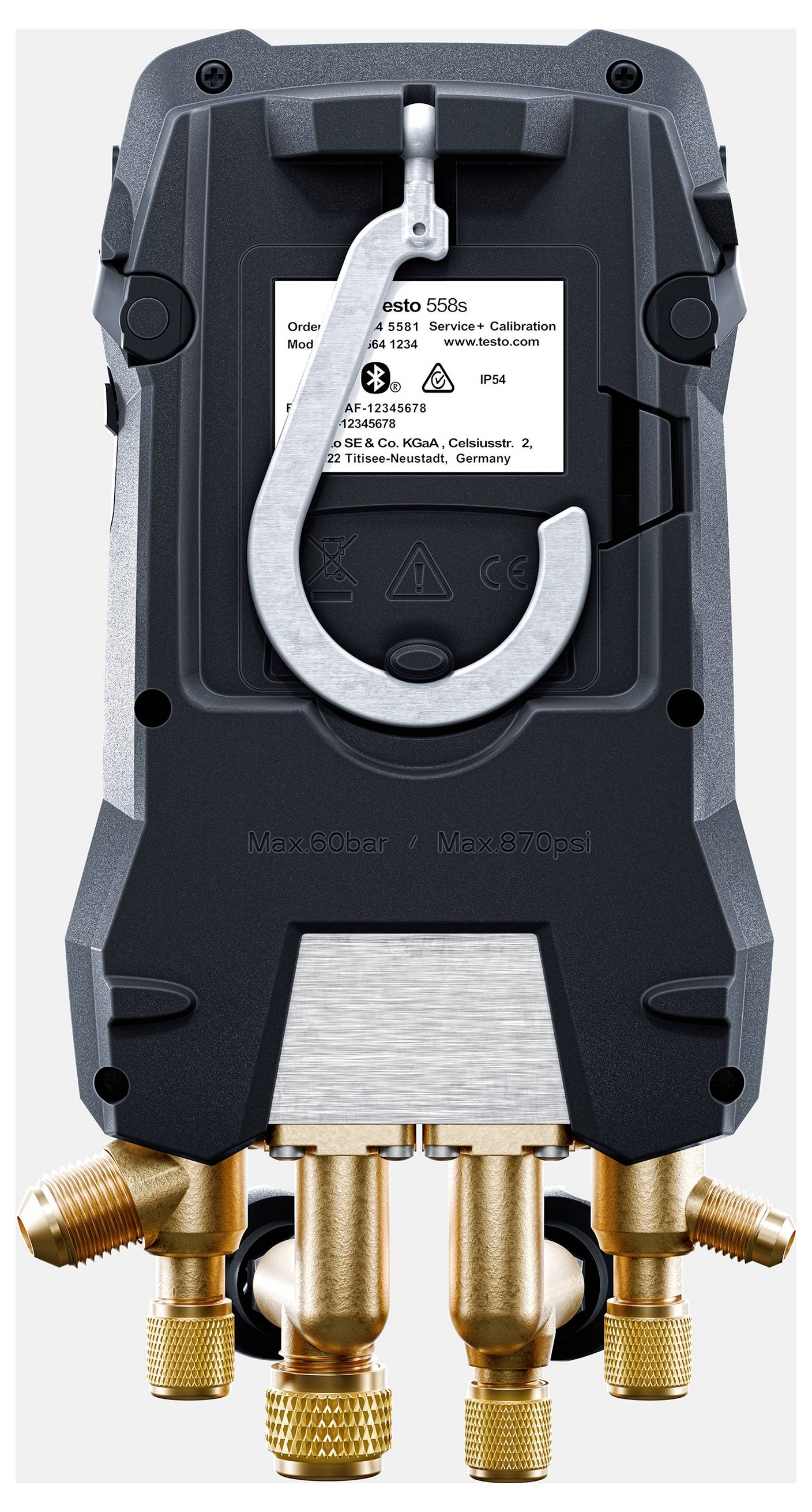

A black and silver device with multiple brass connectors, featuring a metal hook on top for hanging. Labels and branding are visible.

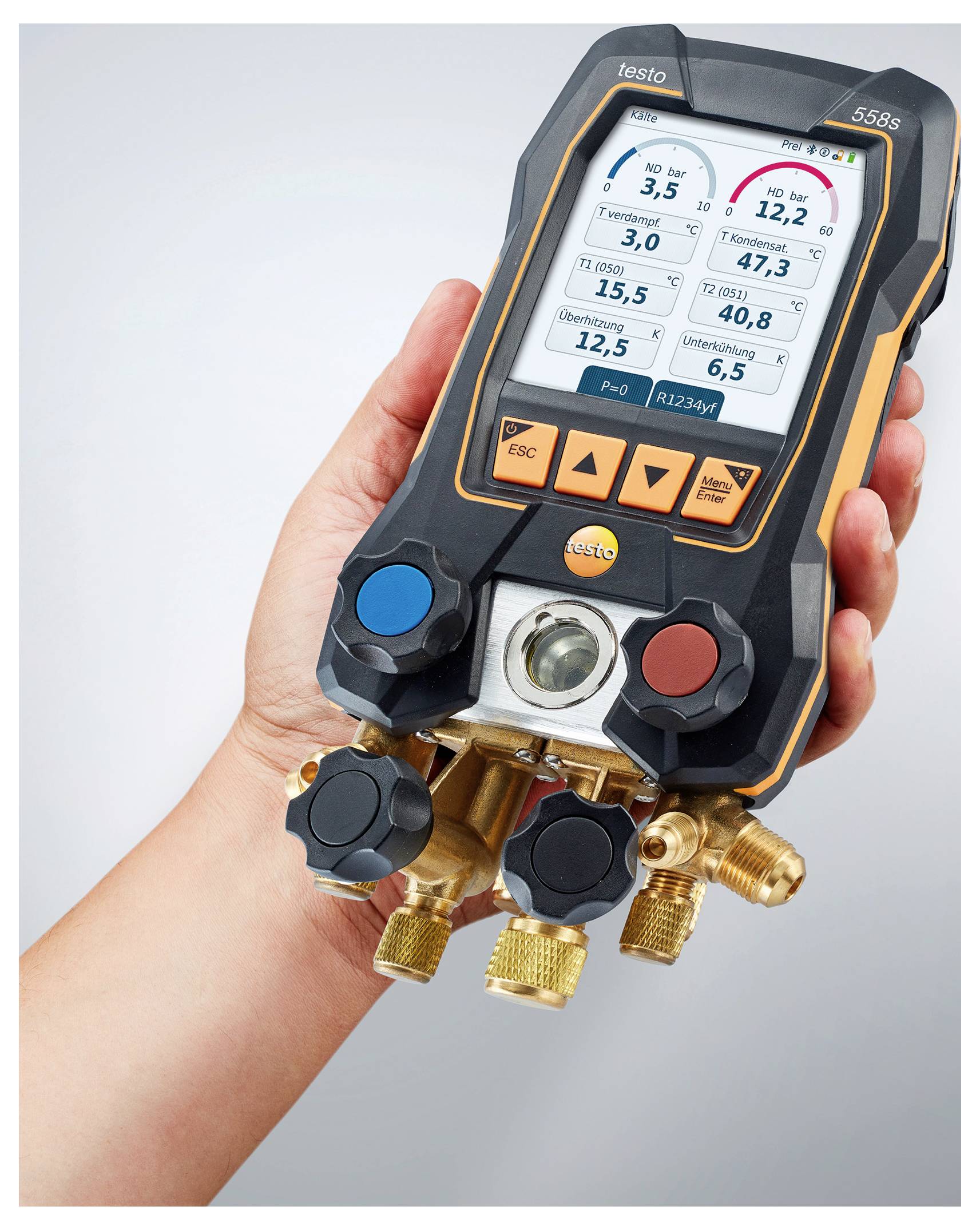

A hand holding a digital manifold gauge showing pressure and temperature readings on a screen. Black and orange device with several knobs.

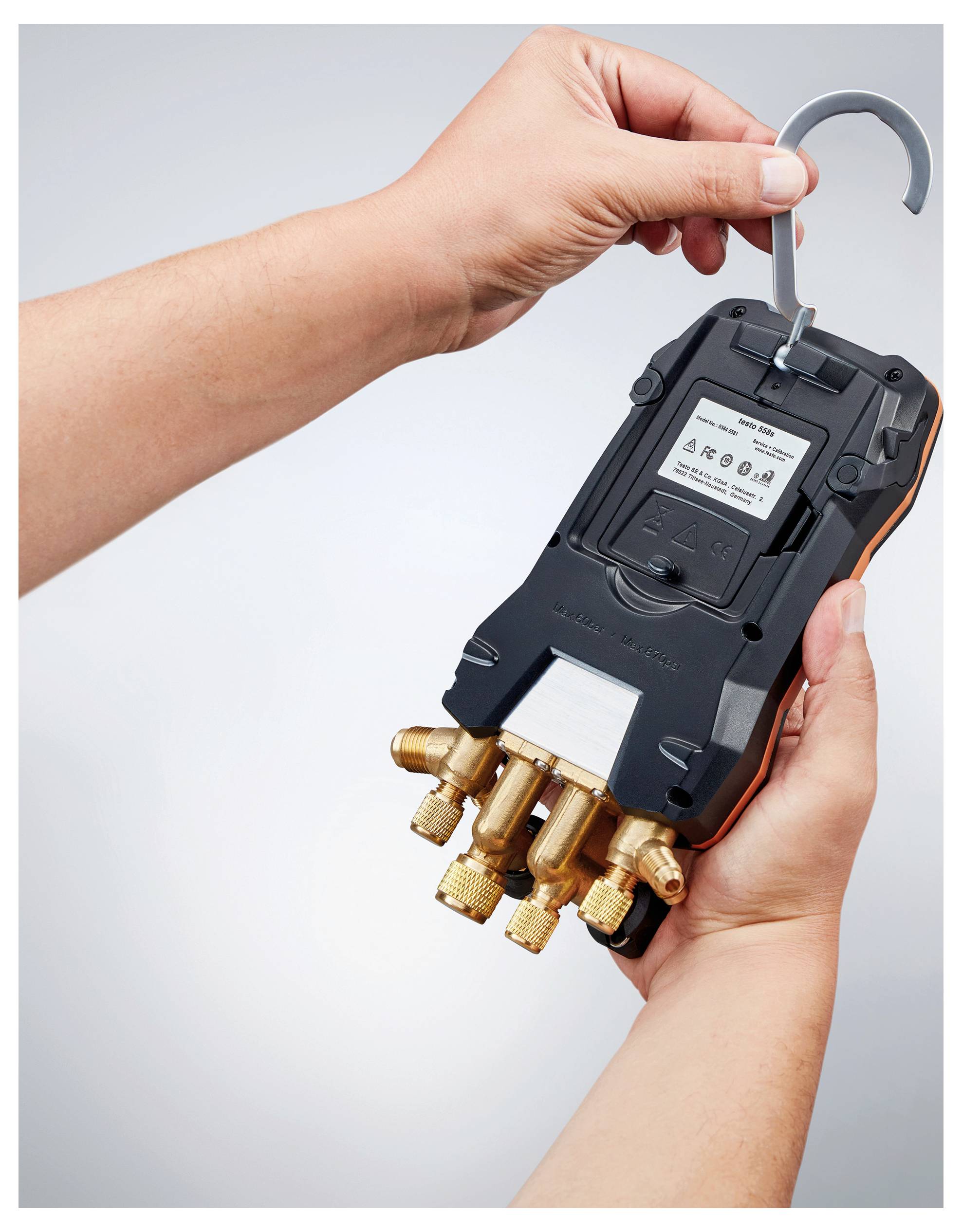

Hands holding a black device with multiple brass connectors at the bottom and a hook on top, possibly a tool or instrument.

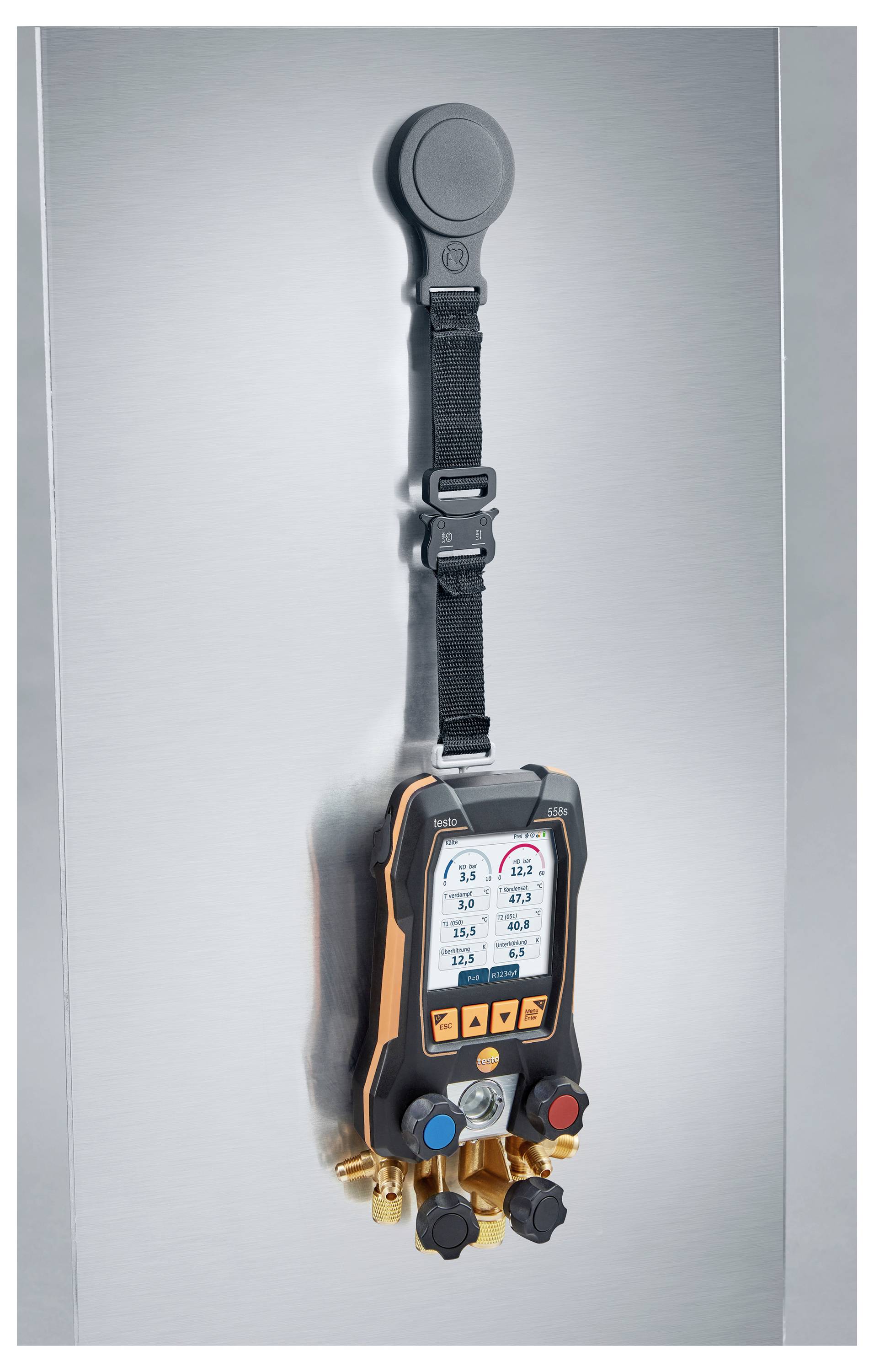

A digital manifold gauge with a metallic backing, displaying measurement readings. It includes control buttons and connection valves below.

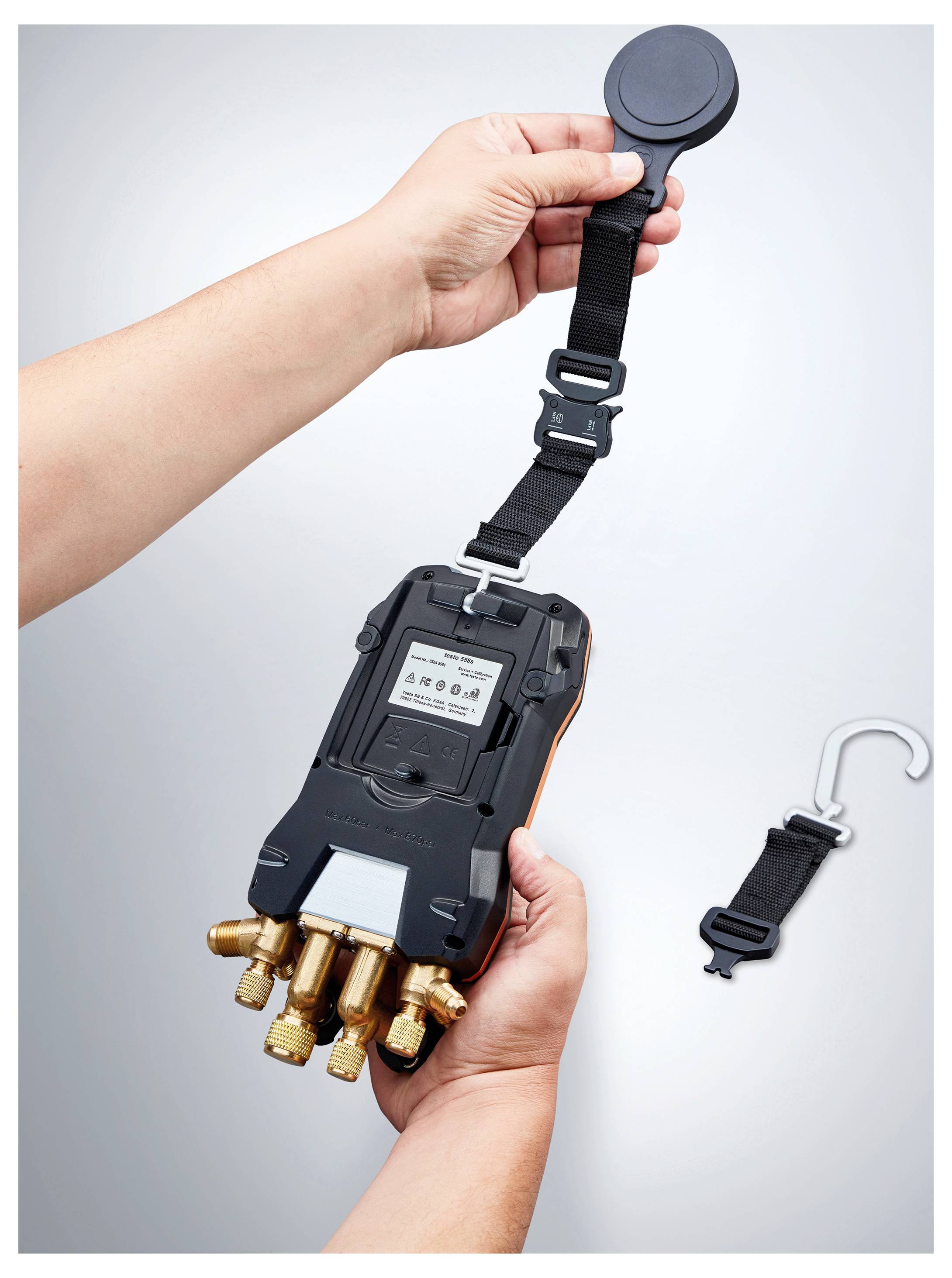

A person adjusts a clamp strap on a black portable device with multiple brass connectors, possibly used for measuring or monitoring systems.

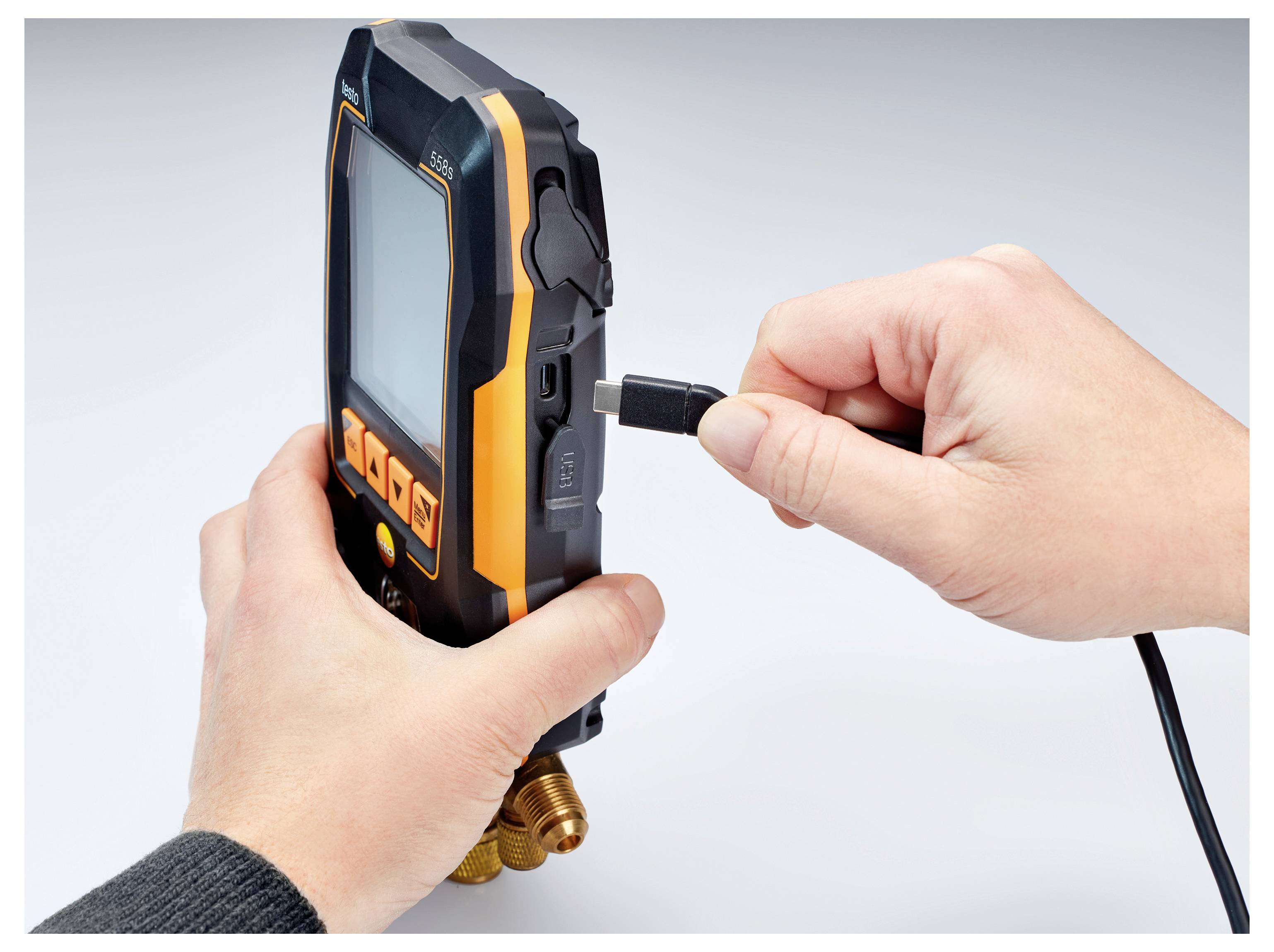

A person plugs a USB cable into a handheld digital device with a screen and buttons, likely for data transfer or charging purposes.

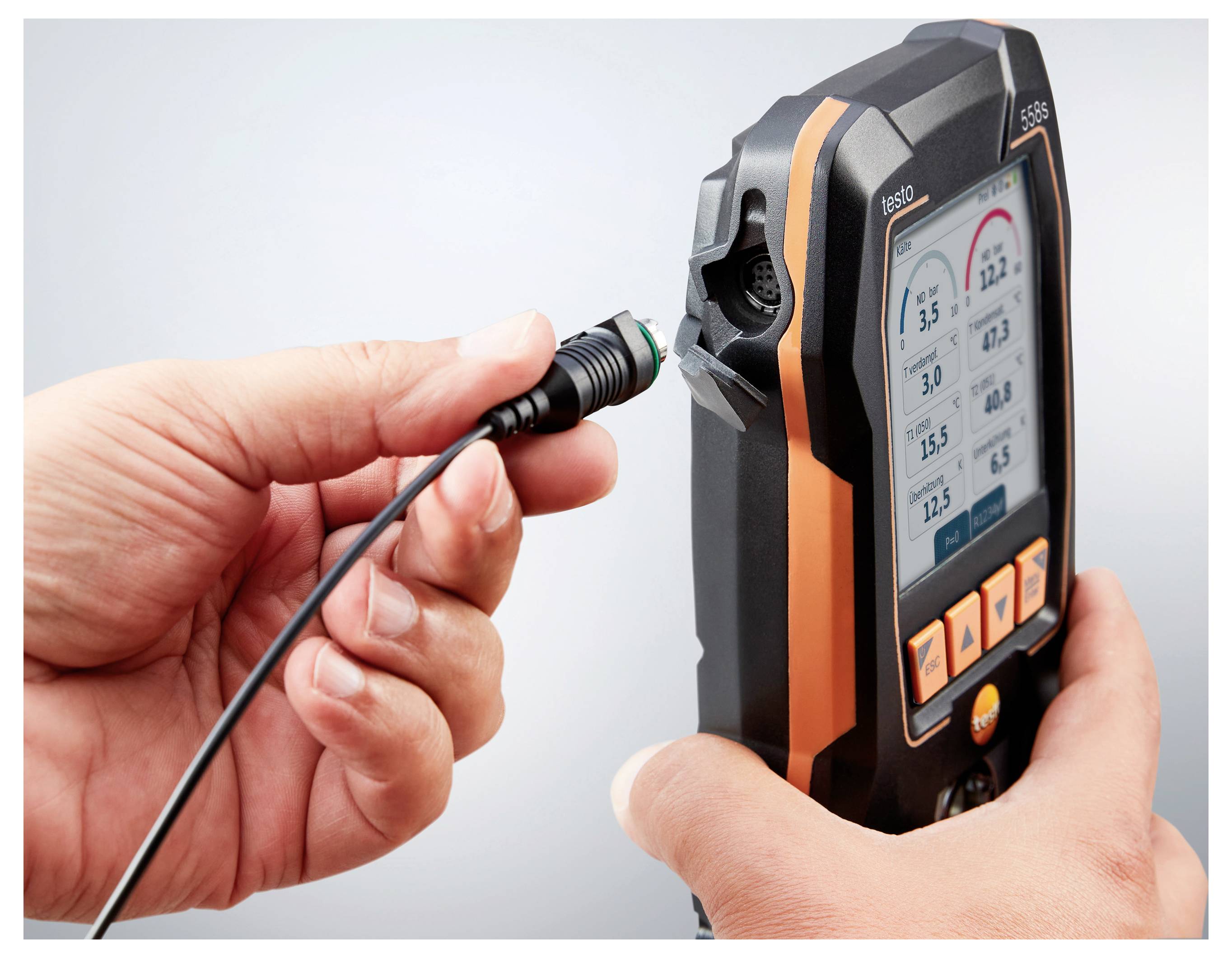

A person connects a cable to an orange and black device displaying measurement data on its screen, used for testing or diagnostics.

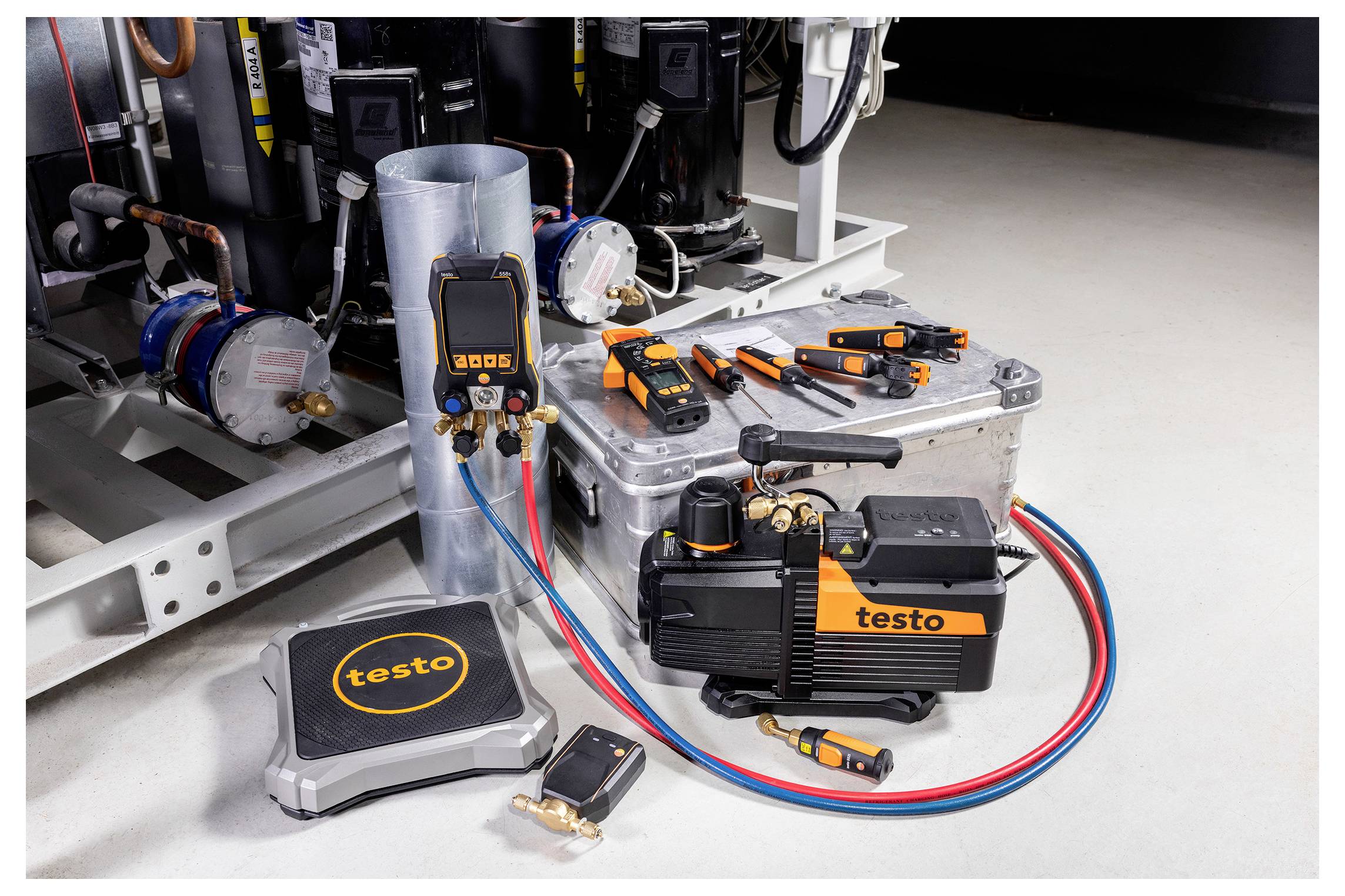

Tools and equipment for HVAC system diagnostics, including meters, hoses, and a vacuum pump, arranged near an industrial setup.

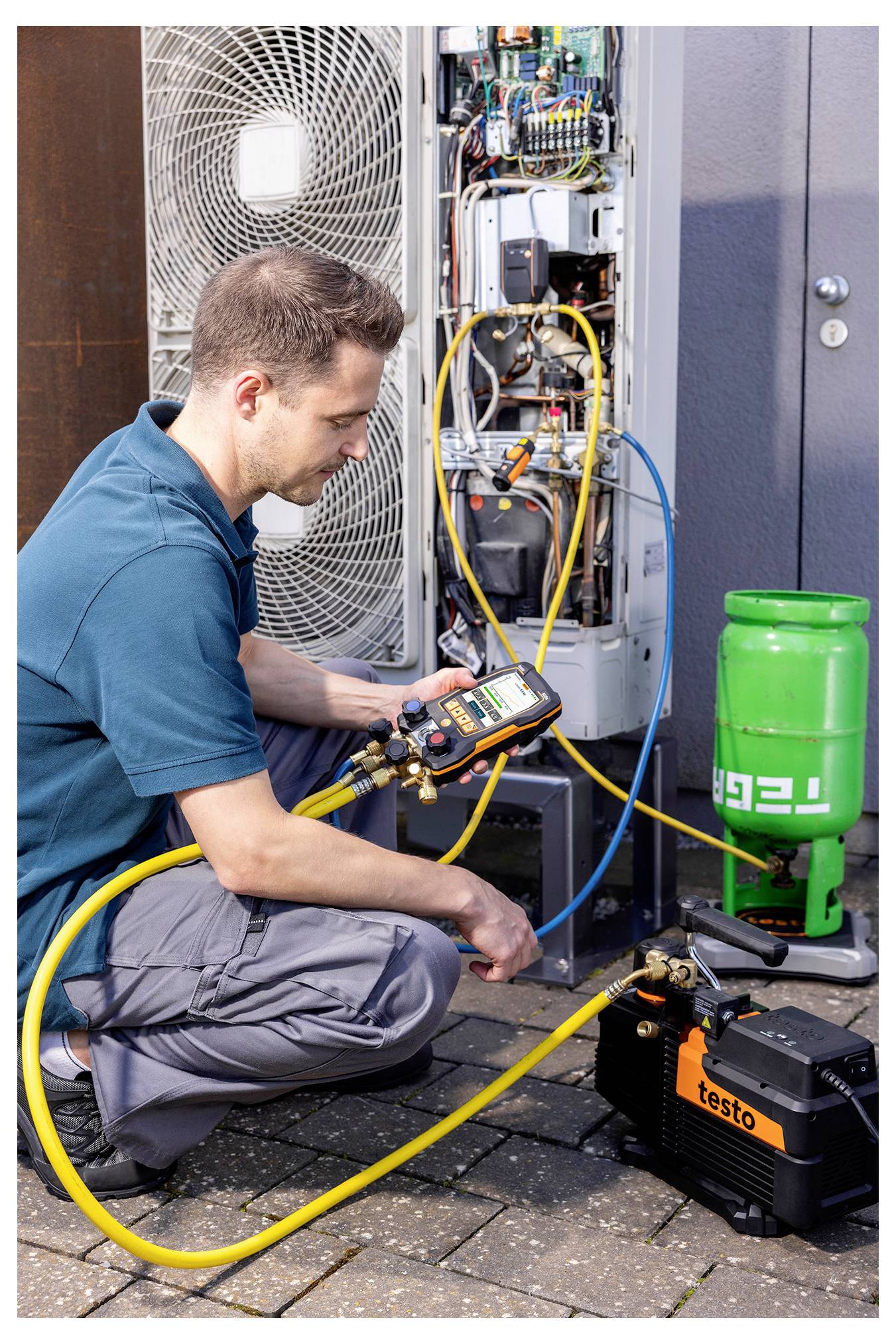

A technician checks pressure gauges on HVAC equipment outdoors, connected to a green refrigerant tank and a black compressor unit.

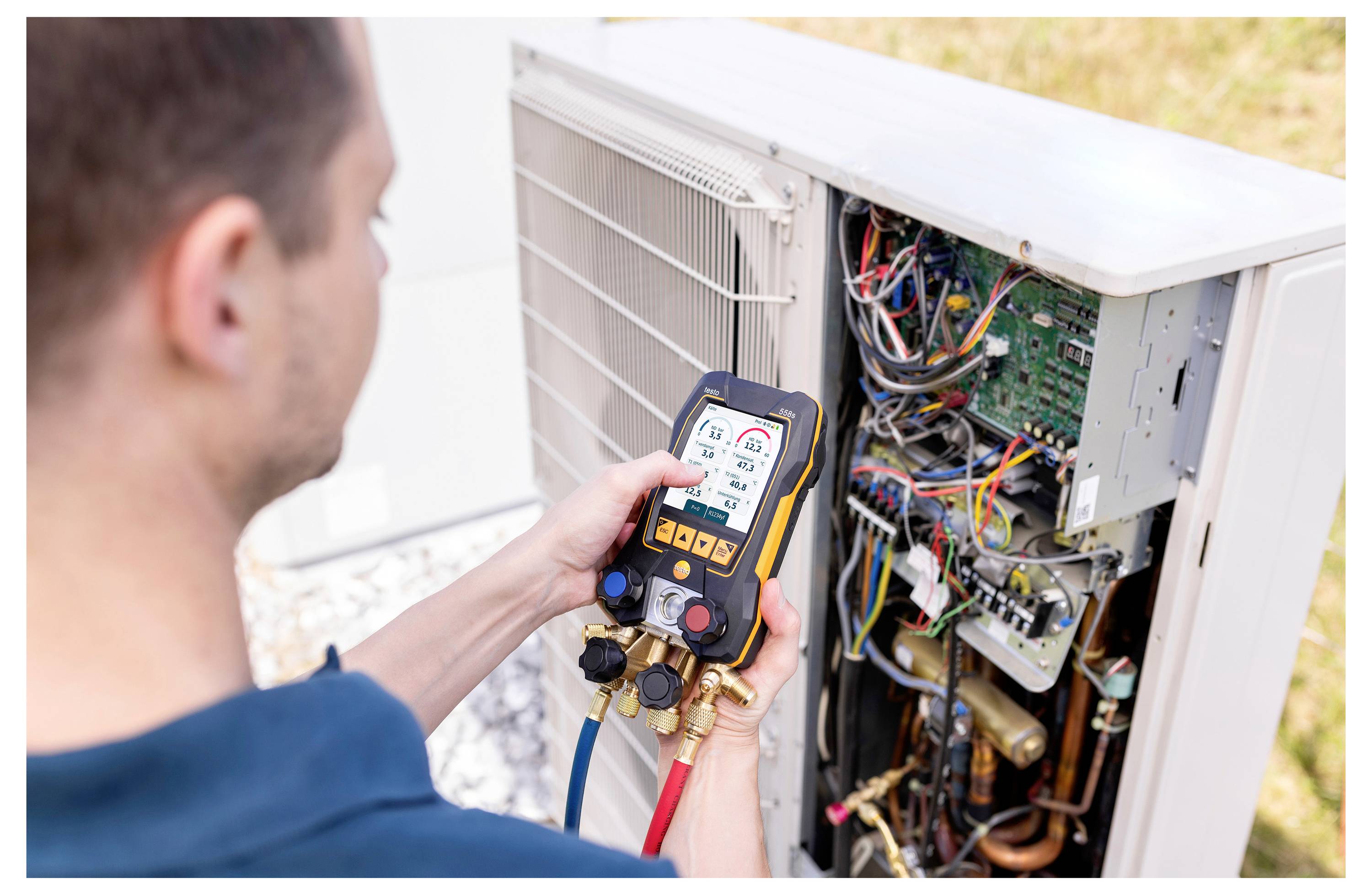

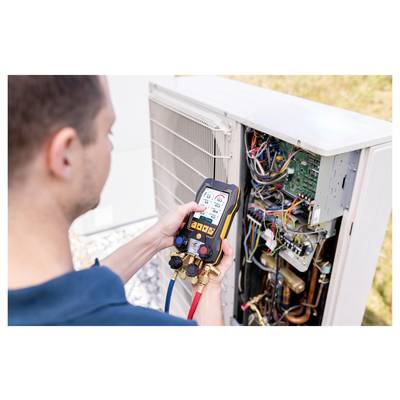

A person uses a digital multimeter to check the settings on an open and wired outdoor air conditioning unit.

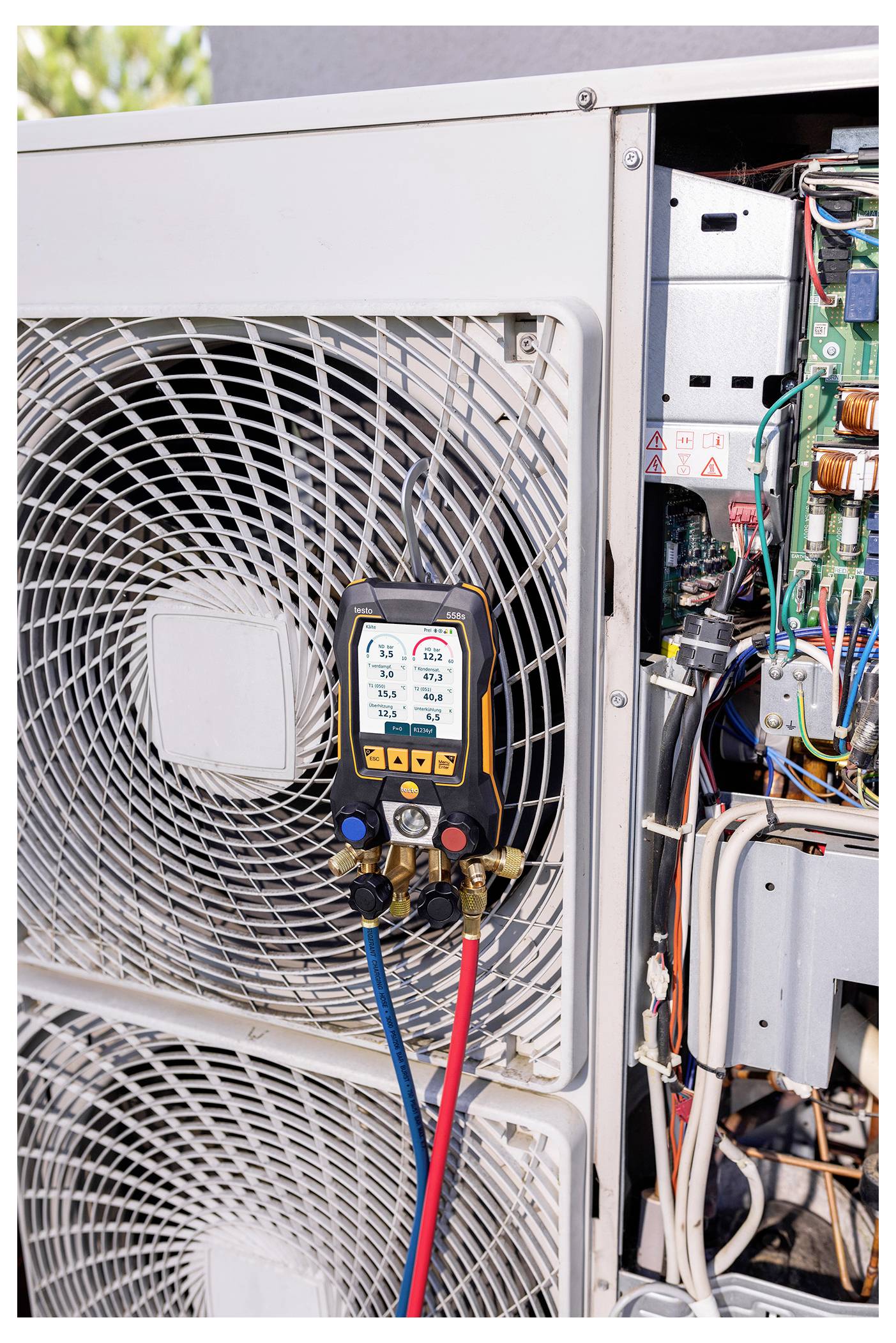

A digital HVAC manifold gauge measures refrigerant pressure next to a partially opened air conditioning unit, showing internal wiring.

1/18

Datasheet (PDF)

Fast track dispatch on Fri, 18 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,259.66 / piece)

€ 1,259.66

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

testo 558s - heat pump set M.

Intuitive APP feeling in your manifold with touch-screen and clear visualization of the measured values
All in one device: All measuring applications in one manifold and wireless connection to the entire refrigeration portfolio
A3 and A2L compatibility for maximum security
Trend curves of measured values over 30 minutes
Full flexibility thanks to unique operability of touch screen, proven key control and testo Smart APP
Always ready to use with hybrid charging system of batteries and rechargeable battery (USB-C) and robust thanks to protection class IP 54
Long-term measurement with integrated 72-hour data logging

Technical specifications

Bluetooth 5.0
Smart APP connection
All measuring applications in one device
Supports many common refrigerants (more than 60 stored)
Display type: Capacitive touch display
4-way valve block

Product type: Professional heat pump set

Reading range: 35 bar (max)

Unit of measurement: Pressure
Vacuum
Temperature

Resolution: 0.01 bar

Accuracy: 0.5 %

Weight: 1.3

Reading range (max.): 35 bar

Width: 112.5 mm

Height: 71 mm

Length: 229 mm

: IP54

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 3557625 Professional heat pump set testo 558s - set M Pressure, Vacuum, Temperature

User & Safety Instructions

User & Safety Instructions 3557625 Professional heat pump set testo 558s - set M Pressure, Vacuum, Temperature

Description

This smart set with testo 558s digital gauge and testo 560i refrigerant scales provides the ideal basis for installation, service and maintenance on heat pumps.
Long-term measurement with intelligent fault analysis in the testo Smart APP
The world's longest operating time of up to 360 hours through the rechargeable battery (USB-C) and batteries
Can be used with A3 and A2L refrigerants
In the set: Digital manifold testo 570s, 2x testo 115i cordless pliers, 1x wireless vacuum probe testo 552i and case

This text is machine translated.

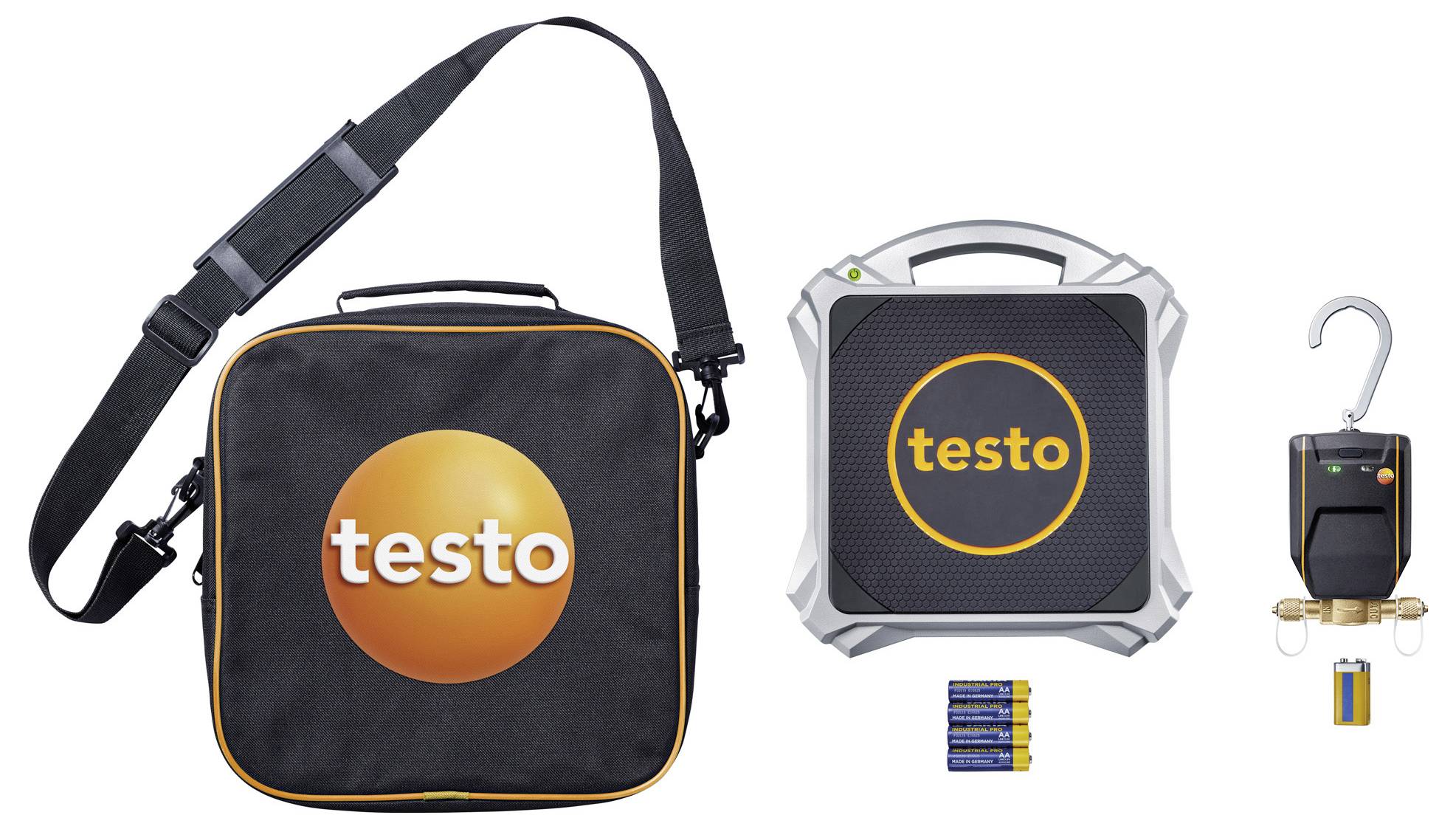

Scope of delivery

1 x testo 558s digital gauge
2 x Smart probe testo 115i
1 x Smart probe testo 552i

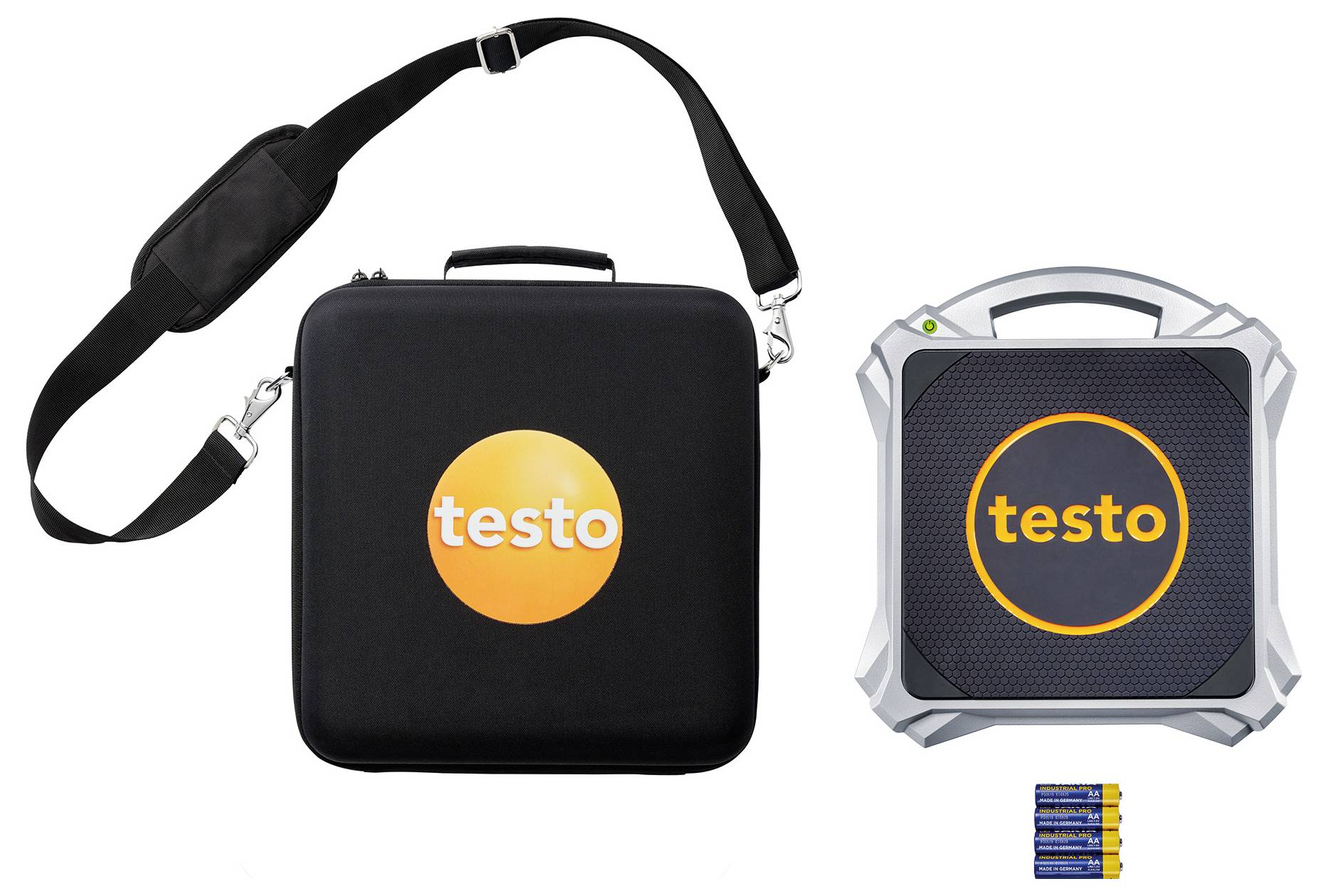

1 x digital refrigerant scales with Bluetooth testo 560i
1 x Refrigerant valve with Bluetooth
1 x filler hose set 3 x 7/16" UNF (0554 2111) and 1 x 5/8" UNF (0554 2112)
1 x transport case
1 x shoulder bag 1 x filling / removing valve (0554 3112)

System requirements

Andorid, iOS
