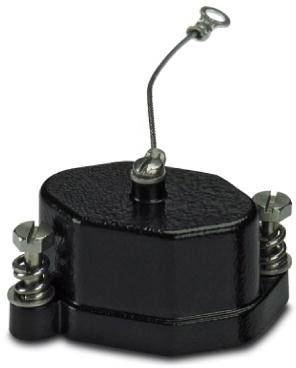

Protective cover HC-HPR-D07-BCSWH-EM-BK Phoenix Contact Content: 1 pc(s) Lid
EAN:
Part number:
Item no:
Product type
Lid
Type
HC-HPR-D07-BCSWH-EM-BK
Manufacturer part #
1424636
Factory colour
Black
Content
1 pc(s)
Datasheet (PDF)
Technical specifications

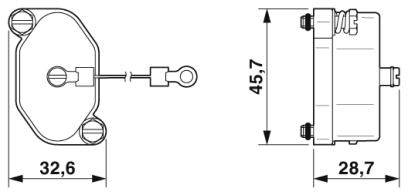

- Size D7:
- Height: 28.5 mm
- Width 32.6 mm
- Length: 45.7 mm
- Locking type: With screw locking
- Material protective cover: Zinc
- Mounting instructions: M4 locking screw, hex with slot (SW7), tightening torque: 1 Nm. The pin contact insert seal must be removed. Max. Thread length of the screw connection: 6 mm
- Material casing: Die-cast zinc
- Tightening torque: 1 Nm (locking screw)
- Material locking: Stainless steel
- Material locking screw: Stainless steel
- Material Housing surface: Powder coated, black
- Type
HC-HPR-D07-BCSWH-EM-BK
- Product type
Lid
- Manufacturer part #
1424636
- Factory colour
Black
- Content
1 pc(s)
- Material
Zinc (die-cast)
IP66
- Max. temperature
+125 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137461 Protective cover HC-HPR-D07-BCSWH-EM-BK Phoenix Contact Content: 1 pc(s) Lid
User & Safety Instructions
User & Safety Instructions 2137461 Protective cover HC-HPR-D07-BCSWH-EM-BK Phoenix Contact Content: 1 pc(s) Lid
Description
Protective cover D7, with screw lock, material: Die-cast zinc, material Protective cover: Zinc, height: 28.5 mm, Cable gland: Without, railway applications, for increased environmental and EMC requirements, series HPR
