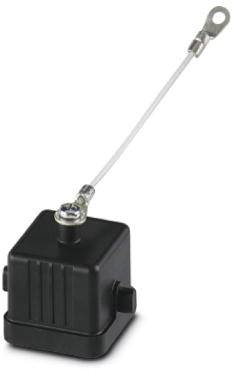

Protective cover HC-STA-D07-BCSFS-PLR-BK Phoenix Contact Content: 1 pc(s) Lid
EAN:
Part number:
Item no:
Product type
Lid
Type
HC-STA-D07-BCSFS-PLR-BK
Manufacturer part #
1419272
Factory colour
Black
Content
1 pc(s)
Datasheet (PDF)

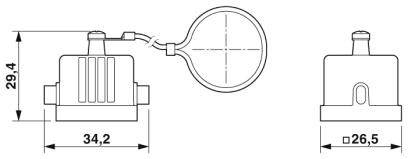

Technical specifications
- Size D7:
- Height: 30 mm
- Width 26.5 mm
- Length: 26.5 mm
- Locking type: For longitudinal brace
- Material protective cover: PA
- Flammability class according to UL 94: V0 (polyamide housing)
- Mounting instructions: Plastic protective cover for short-term protection
- Design: For chassis housing with longitudinal locking
- Material casing: PA
- Material seal: NBR
- Type
HC-STA-D07-BCSFS-PLR-BK
- Product type
Lid
- Manufacturer part #
1419272
- Factory colour
Black
- Content
1 pc(s)
- Material
PA
IP54
- Max. temperature
+100 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137274 Protective cover HC-STA-D07-BCSFS-PLR-BK Phoenix Contact Content: 1 pc(s) Lid
User & Safety Instructions
User & Safety Instructions 2137274 Protective cover HC-STA-D07-BCSFS-PLR-BK Phoenix Contact Content: 1 pc(s) Lid
Description
Protective cover D7, for longitudinal brace, material: PA, material Protective cover: PA, height: 30 mm, seal: Yes, standard, with cord, diameter Snap wire eye: 4 mm, for socket inserts
