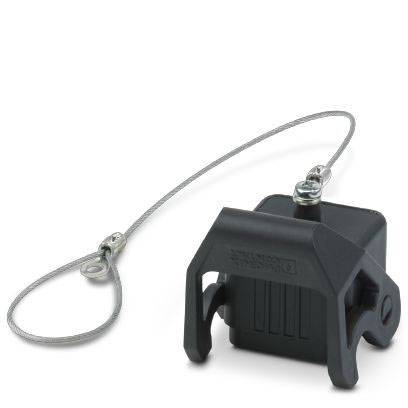

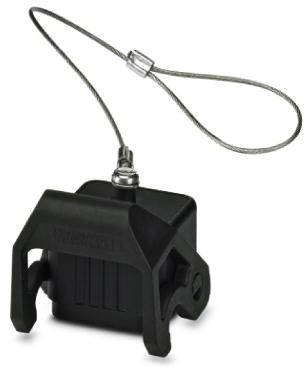

Protective cover HC-STA-D07-HCLWS-PL-BK Phoenix Contact Content: 1 pc(s) Lid
EAN:
Part number:
Item no:
Product type
Lid
Type
HC-STA-D07-HCLWS-PL-BK
Manufacturer part #
1419275
Factory colour
Black
Content
1 pc(s)
Datasheet (PDF)
Technical specifications

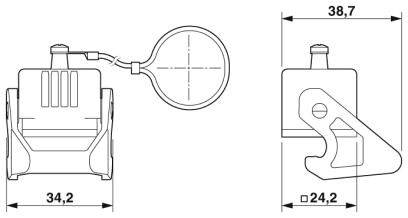

- Size D7:
- Height: 28 mm
- Width 24.2 mm
- Length: 24.2 mm.
- Locking type: With longitudinal brace
- Material protective cover: PA
- Flammability class according to UL 94: V0 (polyamide housing)
- Mounting instructions: Plastic protective cover for short-term protection
- Design: For socket housing without longitudinal locking
- Material casing: PA
- Material locking: PA
- Type
HC-STA-D07-HCLWS-PL-BK
- Product type
Lid
- Manufacturer part #
1419275
- Factory colour
Black
- Content
1 pc(s)
- Material
PA
IP66
- Max. temperature
+100 °C
Black
Other
100-100 °C
V0
FALSE
IP66
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136909 Protective cover HC-STA-D07-HCLWS-PL-BK Phoenix Contact Content: 1 pc(s) Lid
User & Safety Instructions
User & Safety Instructions 2136909 Protective cover HC-STA-D07-HCLWS-PL-BK Phoenix Contact Content: 1 pc(s) Lid
Description
Protective cover D7, with longitudinal brace, material: PA, material Protective cover: PA, height: 28 mm, seal: No, standard, with cord, diameter Snap wire eye: 25 mm, for pin inserts
