Buy Protector Wireless discharged air control AS 6020.3 1000 W White, Brown

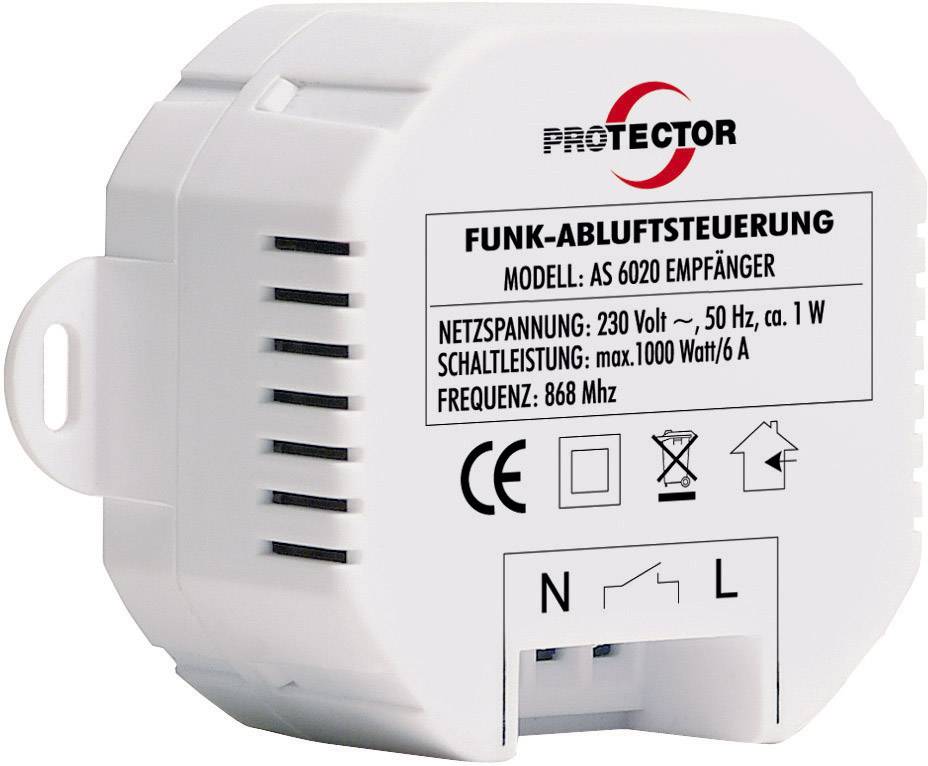

Caption: Two electronic devices for controlling exhaust ventilation systems. On the left: Radio receiver with technical specifications. On the right: Control panel with LED indicators 'OPEN' and 'CLOSED'.

Protector Wireless discharged air control AS 6020.3 1000 W White, Brown-1

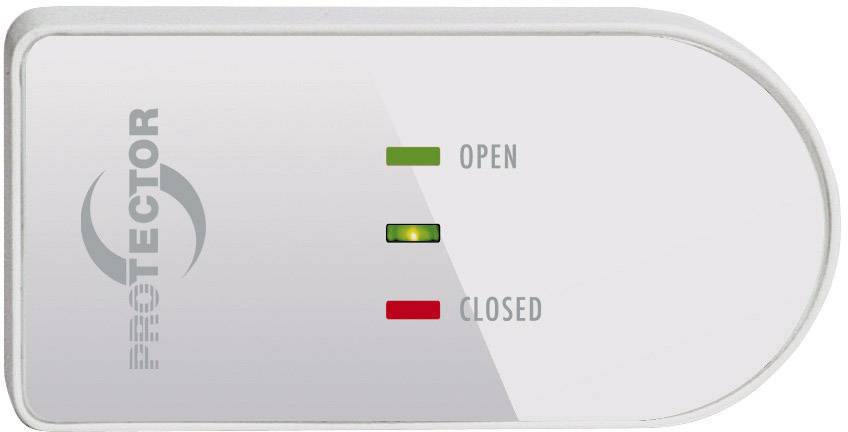

Electronic device with three lights: green 'OPEN', yellow, red 'CLOSED'. 'PROTECTOR' marking on the left side.

1/3

Fast track dispatch on Thu, 6 Aug

42 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 68.90 / piece)

€ 68.90

plus VAT.

Report legal concerns

Highlights & Details

Wireless Built-in Exhaust Control AS6020

Easy installation without the hassle of running cables
For installation in the exhaust hood
Light function even with the closed window

Technical specifications

Wireless range of 50 m.

Product type: Wireless discharged air control

Switch contact: N/C
N/O

Operating voltage: 230 V / AC

RCD safety plug: No

: 1000 W

Safety switch (W x H x D): 65 x 49 x 26 mm

Transmitter dimensions: 60 x 30 x 15 mm

Factory colour: White
Brown

Type: Radio

Switch contact: Normally-closed and normally-open

Switching capacity: 1000 W

Operating voltage: Transmitter: 1 x CR 2450 button cell, Receiver: 230 V/50 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 561142 Protector Wireless discharged air control AS 6020.3 1000 W White, Brown

Description

During operation of cooker hoods or extraction fans, smoke or exhaust from open fireplaces, closed fireplaces, and gas heaters can be drawn back into the room. This can lead to potentially fatal poisoning caused by the odourless and invisible gases carbon monoxide and carbon dioxide. For this reason, according to the furnace regulations (M-FeuVO para. 4), simultaneous operation of an air extractor and a flame source is only permitted if there is provision of an adequate supply of fresh air, e.g. from an open window. And our air extraction radio controller takes over this monitoring function for you. Because, only when the window is open, the built-in device for mounting in the extractor, or flush-mounted box, releases the voltage for the connected extractor. Advantage of this device is that the light function is maintained in the extractor, even if the window is closed.
