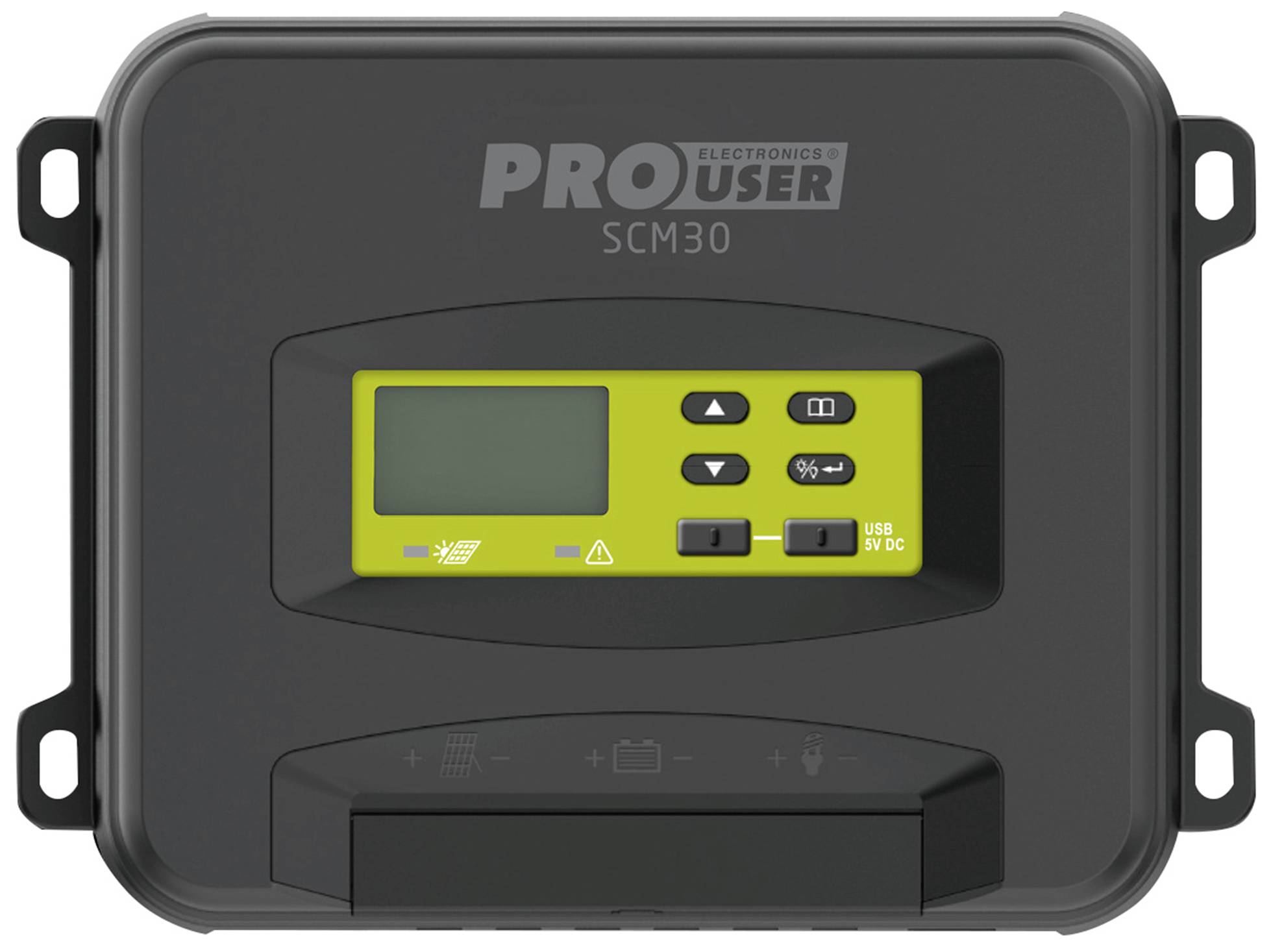

ProUser SCM30 Charge controller MPPT 12 V, 24 V 30 A
EAN:
Part number:
Item no:
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Max. Solar input voltage 50 V
- With APP control
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
900 Wp
- Temperature range
-10 °C to 50 °C
- Charging current (max.)
30 A
- Matching rechargeable battery
Lead acid membrane
Lead-acid
LiFePO4
SLA
- Control type
MPPT
- Dim
(L x W x H) 24 x 175 x 65 mm
- Weight
1856 g
- Features
USB output
Temperature sensor jack
Selectable end-of-charge voltage
Power cut-off
- Current load
30 A
- Module load (max.)
30 A
- Width
175 mm
- Height
65 mm
- Length
24 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898148 ProUser SCM30 Charge controller MPPT 12 V, 24 V 30 A
Description
This regulator charges a battery as efficiently as possible and protects it from fluctuating charging currents and deep discharge. An MPPT charging regulator improves the power output by up to 30% as compared to PWM charging controllers.
This text is machine translated.
This text is machine translated.
Features
- Technology MPPT
- Battery types SLA/AGM/LiFePO4 (12V)
- Max. Input voltage 50V
- Maximum 450W solar module at 12V (20-25VDC)
- Maximum 900W solar module at 24 V (40-50 VDC)
- Max. Output 30A
- USB-output 2x 5V / 2.4A
- Operating temperature -10 to 40 degrees
Scope of delivery
- Temperature sensor;
- User manual
