Buy PTR Hartmann 1007-A-0.7N-AU-0.9 Precision test tip

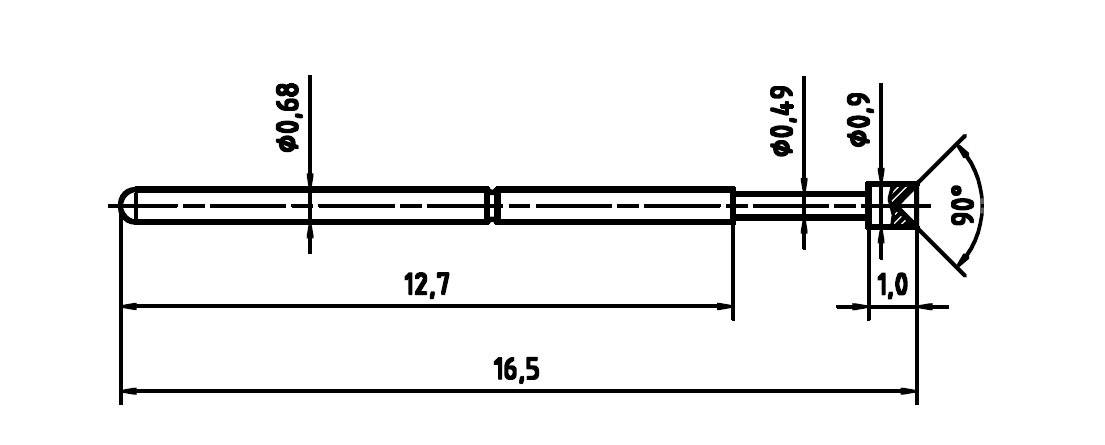

Technical drawing of a pen with dimensions: Total length 16.5 mm, main section 12.7 mm, diameter variable from 0.68 to 0.9 mm.

Stroke drawing/circuit diagram

A schematic drawing of a cylindrical object with a thin, elongated handle. The letter "A" beside it.

1/2

Stroke drawing/circuit diagram

Datasheet (PDF)

Show alternatives

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 6.71 / piece)

€

Report legal concerns

Technical specifications

Continuity Resistance: ≤ 30 mΩ

Nominal current: 1 A

Nominal current - rounded value: 1 A

Refining: Gold

Type: A

Type: 1007-A-0.7N-AU-0.9

CS: 1.27 mm

Pitch of spring: 2.8 mm

Pin Ø: 0.68 mm

Pin length: 16.5 mm

Spring force: 0.7 N

Resistance: ≤30 mΩ

Nominal current (details): 1 A

RoHS-compliant: Yes

Product type: Precision test tip

Documents & Downloads

Datasheet

Datasheet 736932 PTR Hartmann 1007-A-0.7N-AU-0.9 Precision test tip

User & Safety Instructions

User & Safety Instructions 736932 PTR Hartmann 1007-A-0.7N-AU-0.9 Precision test tip

Description

Easy guided Precision Measuring spring contact for the assemblies and printed circuit board test. Consisting of guide housing with spring contact pin with probe. The sleeve is ordered separately, and is installed in a board or Plexiglas disk to hold the test jack. This allows the test jack to be removed or replaced easily.

Hints

Type coding:

xxxx (Series) - xx (head shape) - x.xN (contact button) - xx (processing) - xx.xx (head-Ø in mm/head material)

Processing: AU = Gold, RH = Rhodium, NI = Nickel; Head material: M = Brass, C = Beryllium bronze.
