Golden star stamp with long handle, used for creating star patterns on materials.

Image similar

Golden star stamp with long handle, used for creating star patterns on materials.

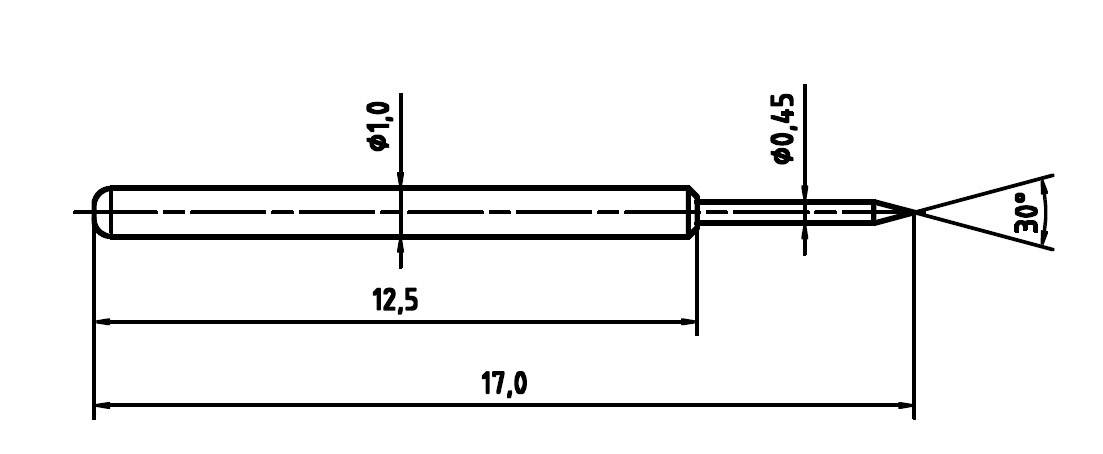

Technical drawing of a cylindrical pin with a point. Length 17 mm, diameter 1 mm and 0.45 mm at the tip, angle 30°.

A 3D drawing showing a cylinder with a pointed conical tip. The letter 'B' is positioned underneath.

1/3

Image similar

PTR Hartmann

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 5.87 / piece)

€

Report legal concerns

Technical specifications

Continuity Resistance: ≤ 20 mΩ

Nominal current: 2 A

Nominal current - rounded value: 2 A

Dim

Refining: Gold

Type: B

Type: 1010-B-0.8NE-AU-0.45

CS: 1.91 mm

Pitch of spring: 3 mm

Pin Ø: 1 mm

Pin length: 17 mm

Spring force: 0.8 N

Resistance: ≤20 mΩ

Nominal current (details): 2 A

RoHS-compliant: Yes

Product type: Precision test tip

Description

Easy guided precision test pin with a spring contact for the assemblies and printed circuit board test.

Hints

Type coding:

xxxx (series) - xx (head shape) - x.xN (contact pressure) - xx (processing) - xx.xx (head diameter in mm / head material)

Finish: AU = gold, rhodium RH =, NI = Nickel, head material: M = Brass, C = beryllium bronze.
