Buy PTR Hartmann 1025/E-V-1.5N-AU-0.9 Precision test tip

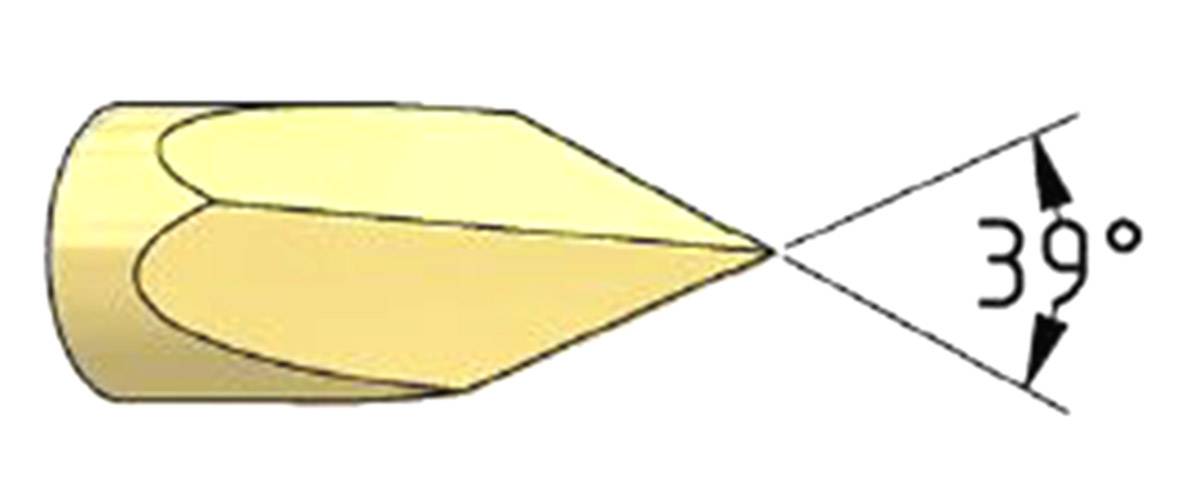

A pencil sharpened to a point at an angle of 39 degrees.

Stroke drawing/circuit diagram

Technical drawing of seven drill bits with different diameters and tip shapes, labelled with letters and diameter specifications.

1/2

Stroke drawing/circuit diagram

53 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1.50 / piece)

€ 1.92

-22 %

€

Report legal concerns

Technical specifications

Continuity Resistance: ≤ 25 mΩ

Nominal current: 3 A

Nominal current - rounded value: 3 A

Dim

Refining: Gold

Type: V

Type: 1025/E-V-1.5N-AU-0.9

CS: 2.54 mm

Pitch of spring: 6.3 mm

Pin Ø: 1.37 mm

Pin length: 33.0 mm

Spring force: 1.5 N

Resistance: ≤20 mΩ

Nominal current (details): 3 A

Type: Test pin 1025/E-V-1.5N-AU-0.9

RoHS-compliant: Yes

Product type: Precision test tip

Description

Easy guided Precision Measuring spring contact for the assemblies and printed circuit board test. Consisting of guide housing with spring contact pin with probe. The sleeve is ordered separately, and is installed in a board or Plexiglas disk to hold the test jack. This allows the test jack to be removed or replaced easily.

Hints

Type coding:

xxxx (series) - xx (head shape) - x.xN (contact pressure) - xx (processing) - xx.xx (head diameter in mm / head material)

Finish: AU = Gold, RH = Rhodium , NI = Nickel, Head material: M = Brass, C = beryllium.
