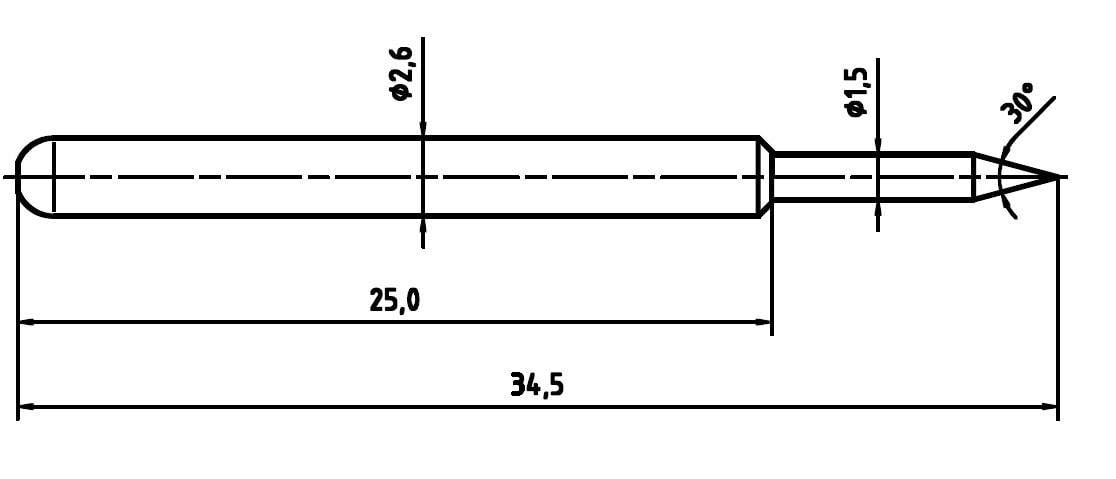

Stroke drawing/circuit diagram
1/2
Stroke drawing/circuit diagram
PTR Hartmann 1040-B-1.5N-NI-1.5 Precision test tip
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included
Technical specifications
- Continuity Resistance: ≤ 30 mΩ
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Refining
Nickel
- Type
B
- Type
1040-B-1.5N-NI-1.5
- CS
4 mm
- Pitch of spring
5.5 mm
- Pin Ø
2.6 mm
- Pin length
34.5 mm
- Spring force
1.5 N
- Resistance
≤30 mΩ
- Nominal current (details)
5 A
- RoHS-compliant
Yes
- Product type
Precision test tip
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 737071 PTR Hartmann 1040-B-1.5N-NI-1.5 Precision test tip
Description
Double guided Precision Measuring with spring contact for building groups and test circuit boards. Consisting of guide housing with spring contact pin with probe. The sleeve is ordered separately, and is installed in a board or Plexiglas disk to hold the test jack. This allows the test jack to be removed or replaced easily.
Hints
Type coding:
xxxx (series) - xx (head shape) - x.xN (contact pressure) - xx (processing) - xx. xx (head diameter in mm / head material)
Finish: AU = gold, rhodium RH =, NI = Nickel, head material: M = Brass, C = beryllium bronze
