'Number 2' switch component with side connections. Black housing, with white number two visible on the front.

'Number 2' switch component with side connections. Black housing, with white number two visible on the front.

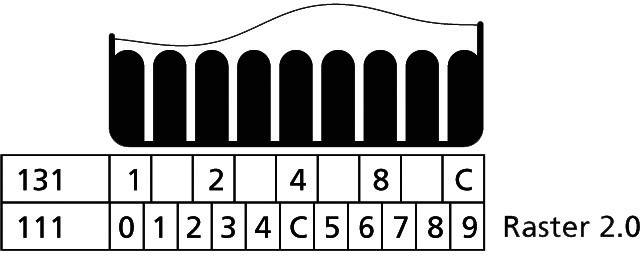

'Raster 2.0' displays a binary pattern with black columns over the decimal numbers 0-9. The numbers 131 and 111 are given in hexadecimal.

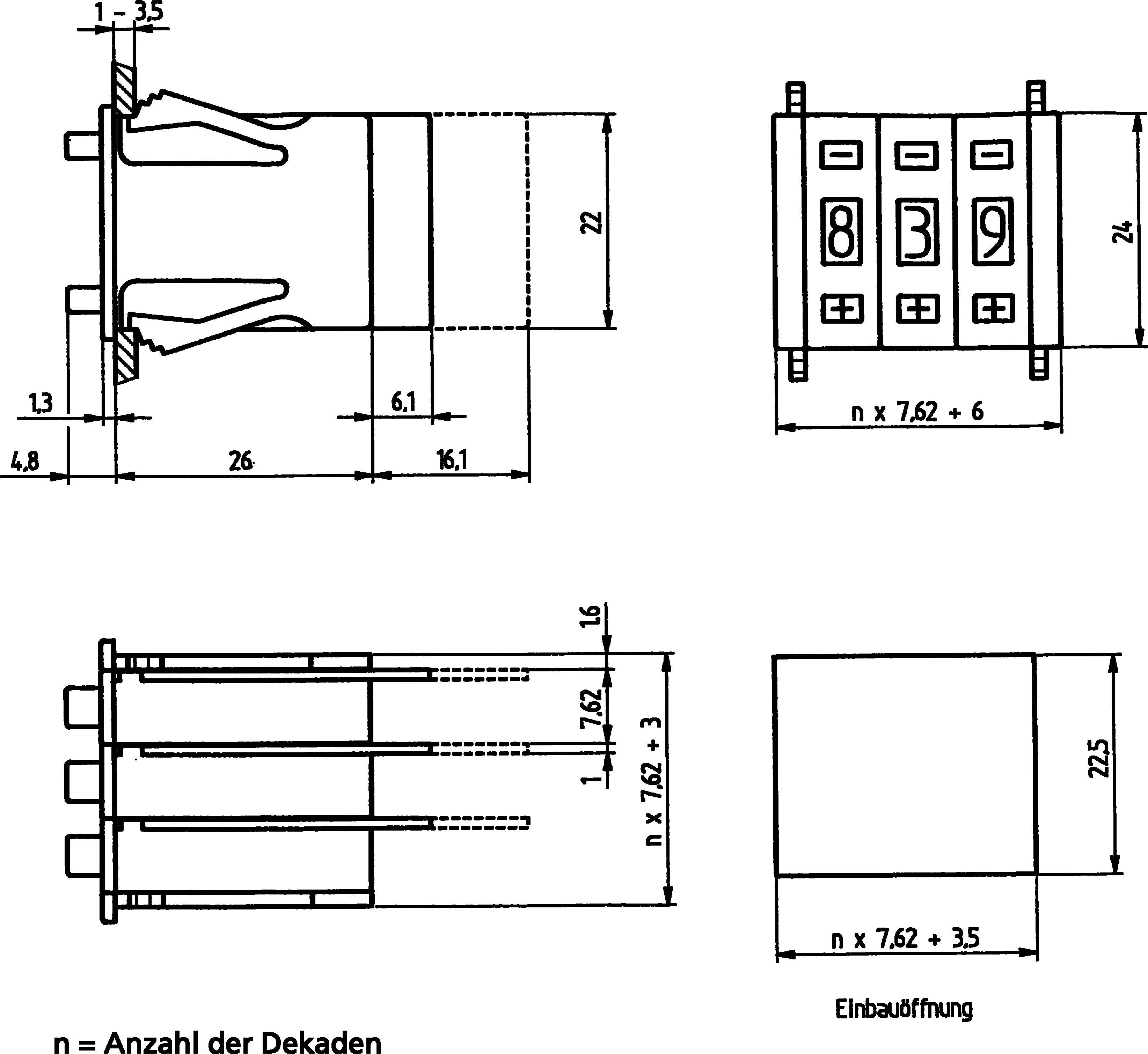

Technical drawing of a rotary switch with three views: side view, front view with numbers '839', top view, with dimensions.

PTR Hartmann 130004 SMC-D-111-AK-2 Coded rotary switch Decimal 0-9 Switch postions 10 1 pc(s)-3

1/4

Coding

Decimal

Print motif

0-9

Switch postions

10

Product type

Coded rotary switch

Type

Decimal

Datasheet (PDF)

European union

PTR Hartmann

Fast track dispatch on Fri, 11 Sep

69 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 5.50 / piece)

€ 5.50

plus VAT.

Report legal concerns

Highlights & Details

Dual coding switch SMC-D

Can be lined up in any way

Our service for you

Technical specifications

Type: Decimal

Coding: Decimal

Print motif: 0-9

Switch postions: 10

Switching voltage (max.): 40 V DC/AC

Standby current: 1 A

Connection: Soldering

Width: 7.62 mm

Height: 24 mm

Content: 1 pc(s)

Type: SMC-D-111-AK-2

RoHS-compliant: Yes

Type: SMC-D-111-AK-2

Connection: Soldered or plugged

Temperature range: -20 - +80 ºC °C

Operating voltage: ≤ 40 V

Product type: Coded rotary switch

Documents & Downloads

Datasheet

European union

Datasheet 704632 PTR Hartmann 130004 SMC-D-111-AK-2 Coded rotary switch Decimal 0-9 Switch postions 10 1 pc(s)

Description

Two-touch code switch SMC-D
