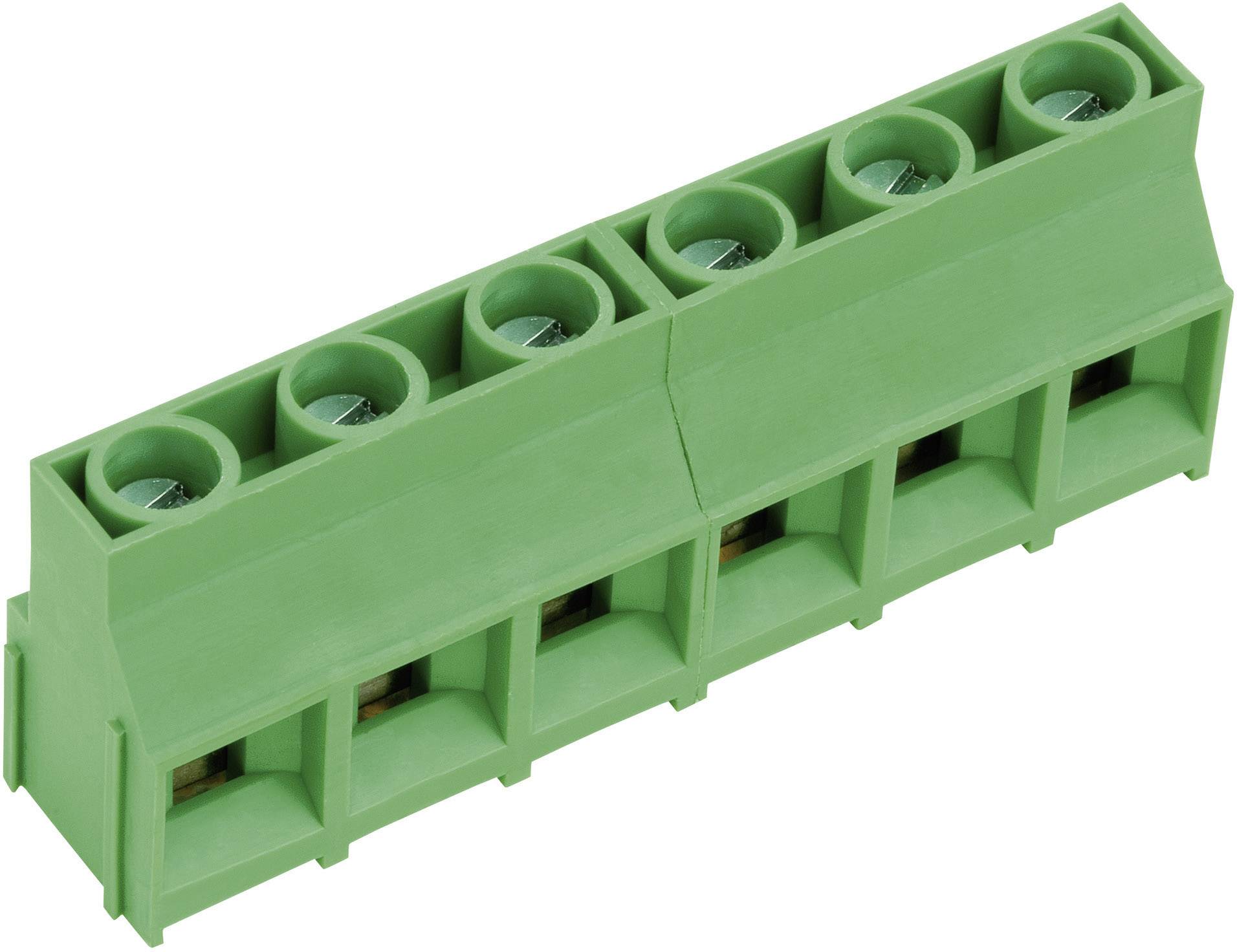

PTR Hartmann 50841060201D Screw terminal 4.00 mm² Number of pins 6 Green 1 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
9.52 mm
Pins per row
6
Number of pins
6
Connection
Screw terminal
Print
Number
Total (€ 0.76 / piece)
€ 0.76
plus VAT.
14-day return policy included
Highlights & Details
Screw terminal block
- Content 1 pc(s)
Our service for you
Technical specifications
- Type
AKZ841/6-9.52-V
- Product type
Screw terminal
- Features
+ lifter
- CS
9.52 mm
- No. of rows
1
- Pins per row
6
- Number of pins
6
- Series
AKZ841
- Min. stripping length
7 mm
- Stripping length (max.)
7 mm
- Connection
Screw terminal
Print
- Nominal current
30 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
30 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
4.00 mm²
- Cross section (inflexible) (max.)
6.00 mm²
- AWG (min.)
28
- Connector orientation
Parallel (to the PCB)
- AWG max.
10
- Contact material
Brass
- Factory colour
Green
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
50841060201D
- Content
1 pc(s)
- Nominal voltage
600 V
- Width
57.62 mm
- Height
25.90 mm
- Length
12.50 mm
