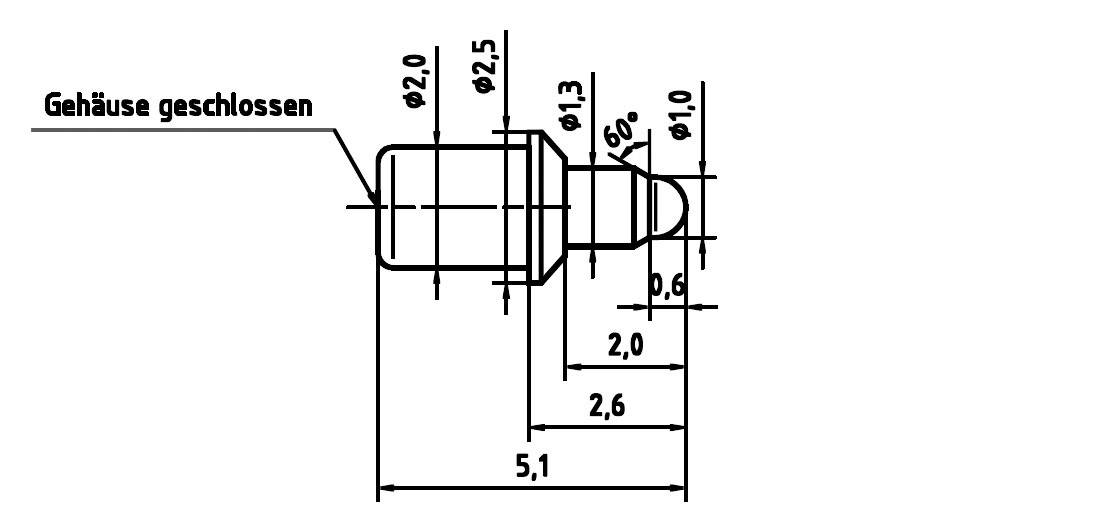

Stroke drawing/circuit diagram
1/2
Stroke drawing/circuit diagram
PTR Hartmann 5099-D-2.0N-AU-1.0C Precision test tip
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Technical specifications
- Continuity Resistance: ≤ 10 mΩ
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Refining
Gold
- Type
D
- Contact material
Beryllium copper
- Type
5099-D-2.0N-AU-1.0C
- CS
4 mm
- Pitch of spring
1 mm
- Pin Ø
2.5 mm
- Pin length
5.1 mm
- Spring force
2.0 N
- Resistance
≤10 mΩ
- Nominal current (details)
1.5 A
- RoHS-compliant
Yes
- Product type
Precision test tip
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 737163 PTR Hartmann 5099-D-2.0N-AU-1.0C Precision test tip
Description
Easy guided Precision Measuring with spring contact for use in loading shells. Consisting of guide housing with spring contact pin with probe. The sleeve is ordered separately, and is installed in a board or Plexiglas disk to hold the test jack. This allows the test jack to be removed or replaced easily.
Hints
Type coding:
xxxx (series) - xx (head shape) - x.xN (contact pressure) - xx (processing) - xx.xx (head diameter in mm / head material)
Finish: AU = gold, rhodium RH =, NI = Nickel, head material: M = Brass, C = beryllium bronze.
