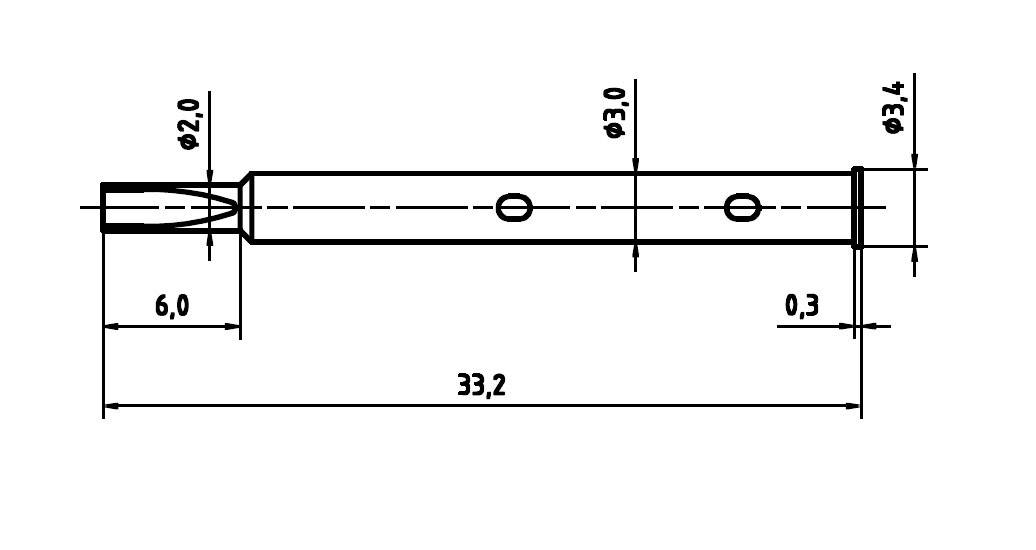

Technical drawing of a cylindrical object with multiple diameters and holes, overall dimension 33.2 mm, various diameters marked.

Stroke drawing/circuit diagram

Technical drawing of a cylindrical object with multiple diameters and holes, overall dimension 33.2 mm, various diameters marked.

Stroke drawing/circuit diagram

PTR Hartmann

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 1.92 / piece)

€ 1.92

plus VAT.

Report legal concerns

Technical specifications

Continuity Resistance: ≤ 30 mΩ

Nominal current: 5 A

Nominal current - rounded value: 5 A

Refining: Gold

Type: H 1045 L

CS: 4 mm

Pitch of spring: 5.5 mm

Pin Ø: 2.6 mm

Pin length: 34.5 mm

Spring force: 1.5 N

Resistance: ≤30 mΩ

Nominal current (details): 5 A

RoHS-compliant: Yes

Product type: Precision test tip sleeve

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 737150 PTR Hartmann H 1045 L Precision test tip sleeve

User & Safety Instructions

User & Safety Instructions 737150 PTR Hartmann H 1045 L Precision test tip sleeve

Description

Test jacks Series 1040. Spring contacts for assembly and PCB tests. Sleeve with or without solder connection for Series 1040.
