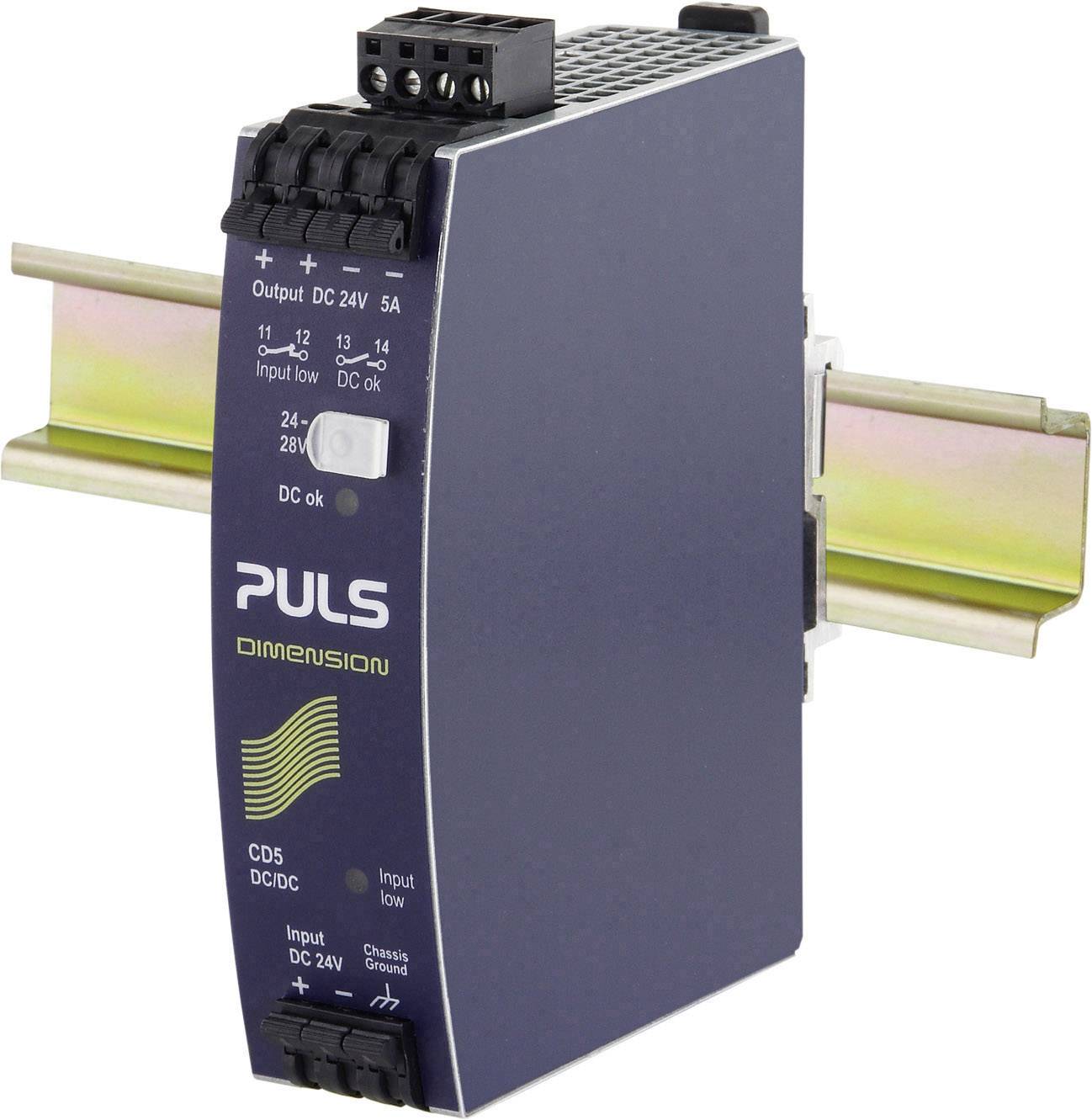

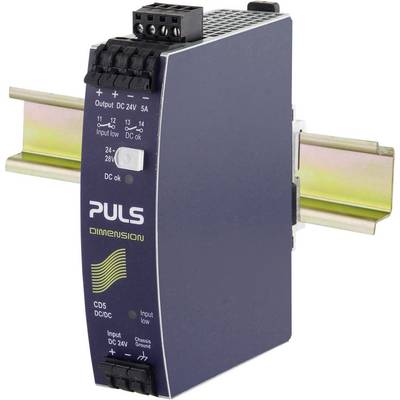

PULS CD5.241-S1 rail mount DC/DC converter, output: 24 V DC 5 A 120 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
14-day return policy included
Highlights & Details
DC/DC-converter SMPS module CD5
- Galvanic separation
- Stabilised output voltage
- Voltage lifting when conduction loss
Technical specifications
- Product type
DC/DC converter
- Type
CD5.241-S1
- PSU features
incl. contact pins
- Dim
(W x H x D) 32 x 124 x 102 mm
- Height
124 mm
- Width
32 mm
- Output voltage (max.)
24 V DC
- Weight
450 g
- Content
1 pc(s)
- Depth
102 mm
120 W
- Connections
Spring cage terminals
- Output voltage
24 V DC
- Output current (details)
5 A
- Type
CD5.241-S1
- Input voltage
24 V DC
- Input voltage
18 - 32 4 V DC
Documents & Downloads
Datasheet
Datasheet 513199 PULS CD5.241-S1 rail mount DC/DC converter, output: 24 V DC 5 A 120 W
User & Safety Instructions
User & Safety Instructions 513199 PULS CD5.241-S1 rail mount DC/DC converter, output: 24 V DC 5 A 120 W
User & Safety Instructions 513199 PULS CD5.241-S1 rail mount DC/DC converter, output: 24 V DC 5 A 120 W
Conformity certificate
Conformity certificate 513199 PULS CD5.241-S1 rail mount DC/DC converter, output: 24 V DC 5 A 120 W
Description
The DC/DC-converter in DIMENSION-casing are adjusted for multi-purpose. Ideal as stable current source in battery operated systems, for adjustment of current niveau or increasing the current in longer cables. Extremely compact and simple retrofit.
Features
- 20% power reserve (power boost)
- Adjustable output voltage
- DIN-Rail mount
- DC-OK contact
- Contact for low voltage at the input.
