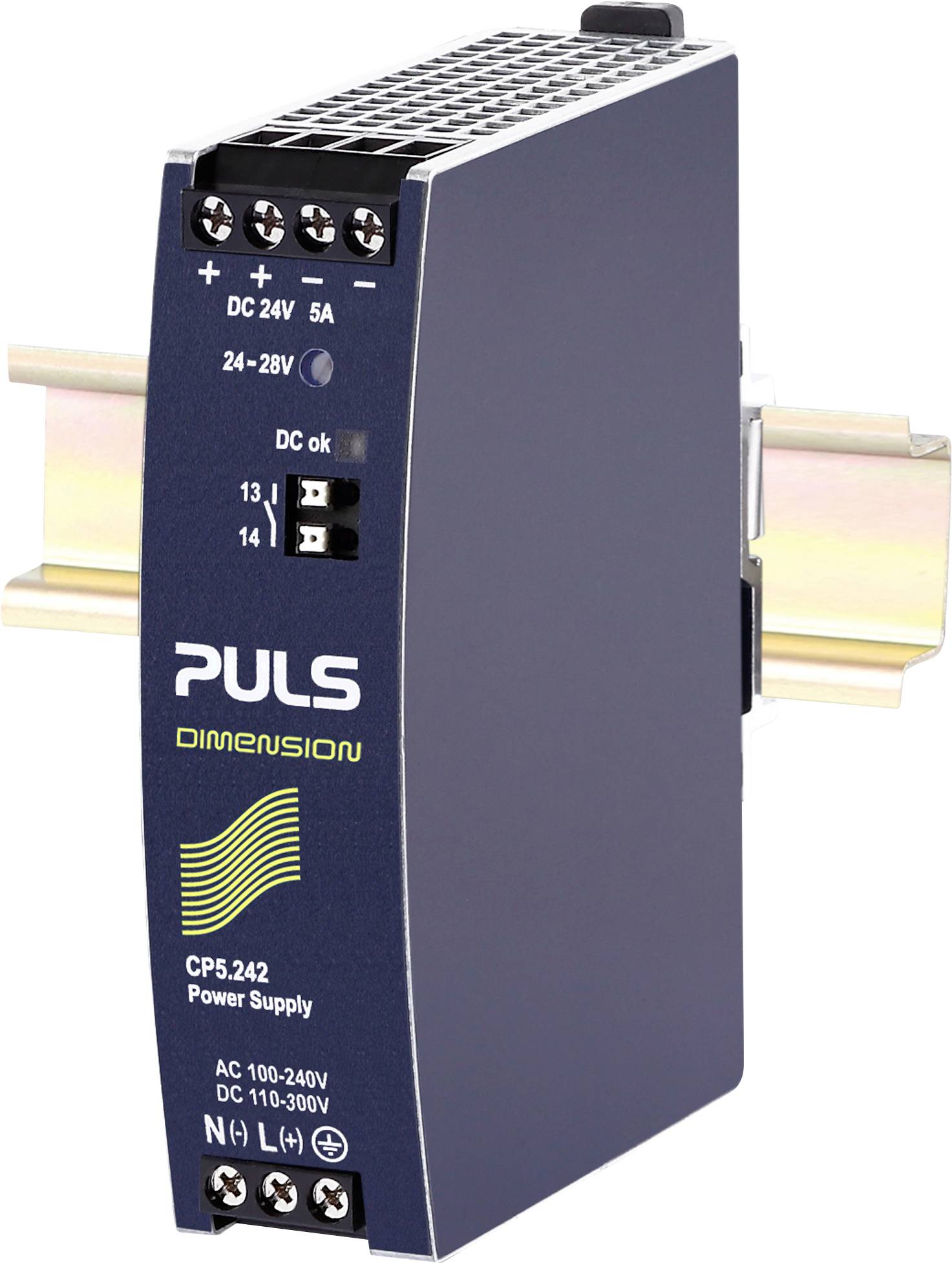

PULS CP5.242 Rail mounted PSU (DIN) 24 V DC 120 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Nominal input voltage
AC 100-240V
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
4.3 A at 28 V
5 A at 24 V
- Input voltage (max.)
264 V AC
120 W
- Output voltage (nominal)
24 V DC
- Connection
Screw terminal
- Dim
(L x W x H) 124 x 32 x 102 mm
- Output voltage (min.)
24 V
28 V
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+60 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
CP5.242
- Content
1 pc(s)
- MTBF
867000 h
- Width
32 mm
- Height
102 mm
- Length
124 mm
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Type
CP5.242
- Efficiency
94.3 %
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2376908 PULS CP5.242 Rail mounted PSU (DIN) 24 V DC 120 W Content 1 pc(s)
Description
The DIN rail power supplies of THE DIMENSION product family impress through their highest performance, a large variety of variants as well as extensive features and approvals.
