Buy PULS CPS20.241-C1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

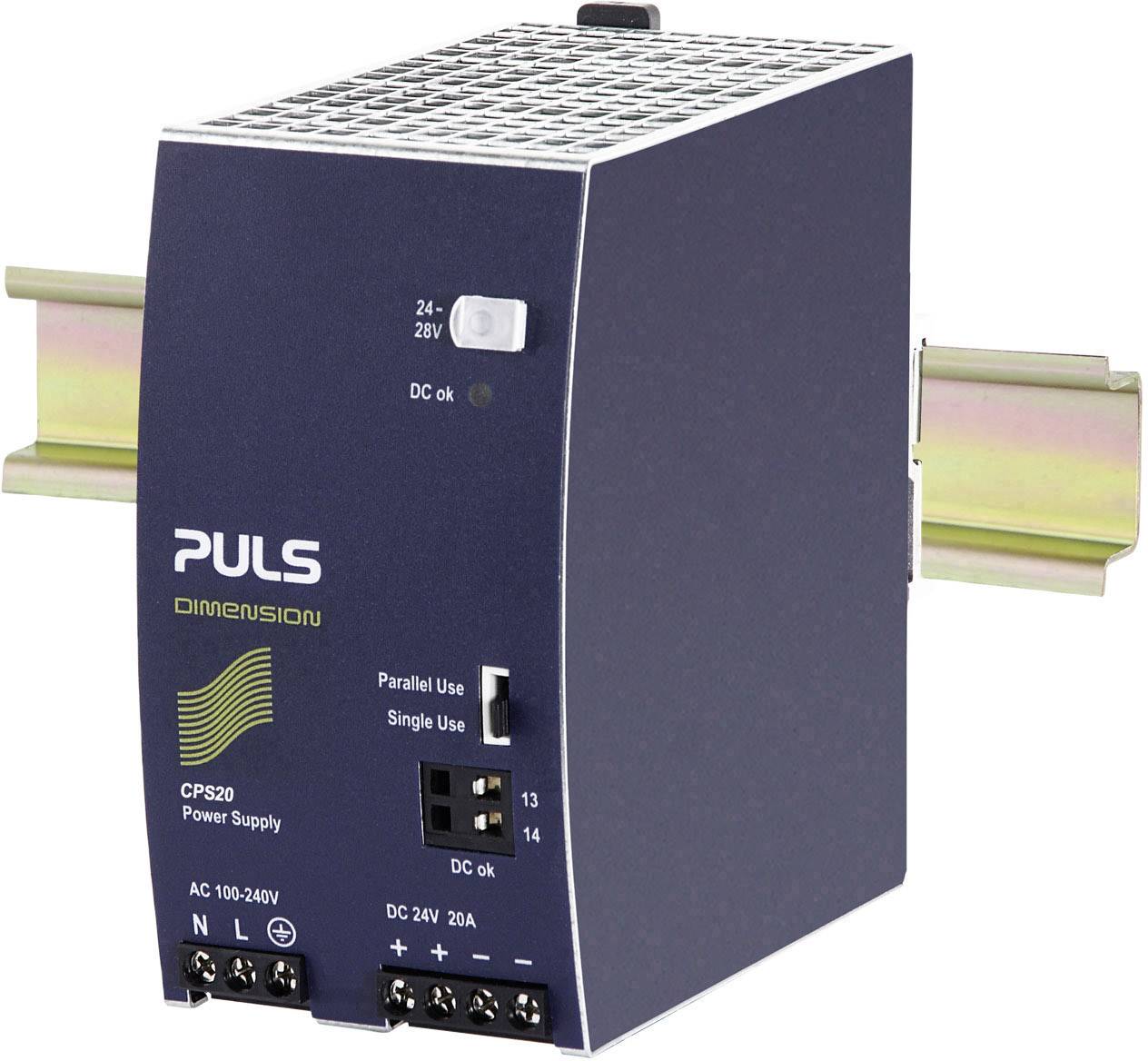

Power supply 'PULS DIMENSION CPS20' mounted on a DIN rail. Input range: AC 100-240V. Output: DC 24V, 20A.

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 242.86 / piece)

€ 242.86

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

CPS20.241-C1; 1-phase input, 24V, 20A, conformal coated

100-240V wide-range input, active PFC
Efficiency up to 94%
Conformal coated
20% Power reserves can be used continuously up to +45°C
Full output power between -25 and +60°C
DC-OK Signal, parallel mode for load sharing

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Inputs: 1

Input voltage: 115/230 V AC

Input voltage (max.): 240 V AC

Max. output current: 20 A

Output current (max.) - rounded: 20 A

: 480 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 65 x 124 x 127 mm

Weight: 1000 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 60 °C

Max. operating temperature (derating): 45 °C

Operating temperature (min.): -25 °C

Manufacturer part #: CPS20.241-C1

Content: 1 pc(s)

MTBF: 120.000 h

PSU features: protective coating

Width: 65 mm

Height: 124 mm

Max. temperature: +70 °C

Min. temperature: -25 °C

Type: CPS20.241-C1

Efficiency: 94 %

Depth: 127 mm

Connections: Screw terminals

Output current (details): 20 A

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

PULS CPS20.241-C1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169057

This article

480 W

Screw terminal

240 V AC

24 V DC

115 V/AC230 V/AC

20 A

100 V AC

PULS CPS20.121 Rail mounted PSU (DIN) 12 V DC 30 A 450 W No. of outputs:1 x Content 1 pc(s)

Item no:1169043

450 W

Screw terminal

240 V AC

12 V DC

115 V/AC230 V/AC

30 A

100 V AC

PULS CPS20.361 Rail mounted PSU (DIN) 36 V DC 13.3 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169044

480 W

Screw terminal

240 V AC

36 V DC

115 V/AC230 V/AC

13.3 A

100 V AC

PULS QS40.241 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:1169045

960 W

Screw terminal

240 V AC

24 V DC

115 V/AC230 V/AC

40 A

100 V AC

PULS QS40.481 Rail mounted PSU (DIN) 48 V DC 20 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:1169046

960 W

Screw terminal

240 V AC

48 V DC

115 V/AC230 V/AC

20 A

100 V AC

PULS UB20.241 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169047

480 W

Screw terminal

30 V DC

24 V DC

26 V DC

115 V/AC230 V/AC

20 A

22.5 V DC

PULS QS5.241-A1 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:1169048

120 W

Spring-loaded terminal

240 V AC

24 V DC

115 V/AC230 V/AC

5 A

100 V AC

PULS QS10.241-A1 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:1169049

240 W

Spring-loaded terminal

240 V AC

24 V DC

115 V/AC230 V/AC

10 A

100 V AC

PULS QS20.241-C1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169050

480 W

Spring-loaded terminal

240 V AC

24 V DC

115 V/AC230 V/AC

20 A

100 V AC

PULS QT20.241-C1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1169051

480 W

Spring-loaded terminal

480 V AC

24 V DC

115 V/AC230 V/AC

20 A

380 V AC

Documents & Downloads

Datasheet

Datasheet 1169057 PULS CPS20.241-C1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1169057 PULS CPS20.241-C1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Description

The CP-devices are unique in their features. 1-phase devices with AC wide-range input. DC-OK signal output and active PFC.
The CP 241 has an efficiency of 95.2%, a minimum service life of 120,000 hours and is only 39 mm wide!

This text is machine translated.

Features

Single-phase
20% power reserve (power boost)
Adjustable output voltage
Active power current limiting
Full power from -25 to +60 °C
Large screw terminals
