Buy PULS PISA11.401 Overvoltage/overcurrent protector 24 V DC 1 A No. of outputs:4 x Content 1 pc(s)

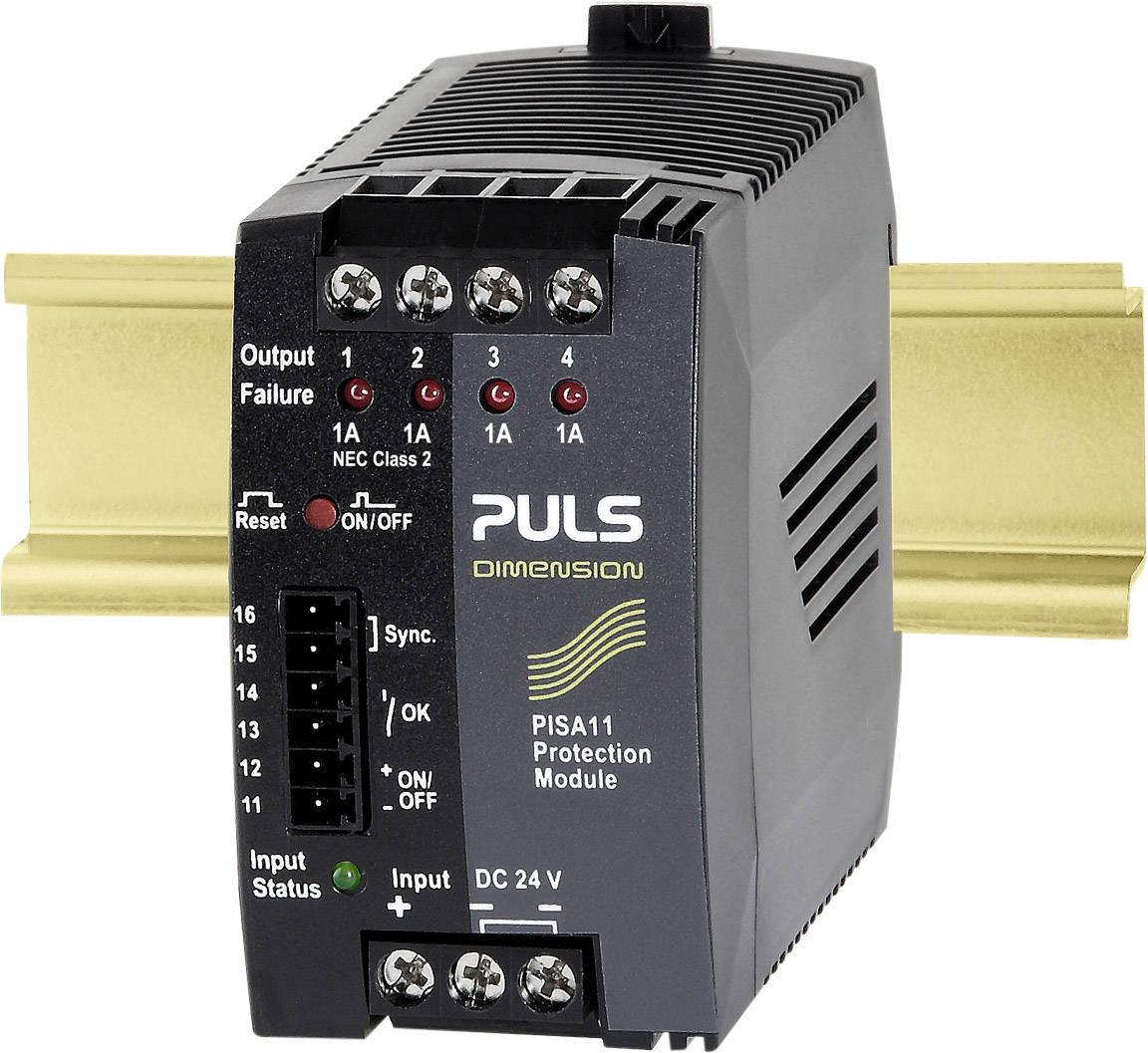

Electrical protection module for DIN rail with multiple connections and LED indicators for power monitoring and fault detection.

Fast track dispatch on Wed, 23 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 48.73 / piece)

€ 48.73

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

4-channel fuse module PISA 11.401

Single 24Vdc input with 4 current controlled outputs (4x 1A)
Each output with on/off function
Ensures sufficient supply voltage for critical loads even in the event of a fault
Protects thin cables against overload
Hassle-free turn-on of loads with large input capacitors
NEC Class 2 compliant (1A and 2A models)
-25°C and +70°C operating temperature range
Compact 45mm width design
Remote monitoring and control functions
3 year manufacturer warranty

Technical specifications

Temperature range -25°C to +60°C.

Nominal input voltage: 24 V/DC

Type: DIN rail power supply

Product type: Overvoltage/overcurrent protector

Min. input voltage: 18 V DC

Output voltage: 24 V DC

Inputs: 1

Input voltage: 24 V DC

Input voltage (max.): 30 V DC

Max. output current: 1 A

Output current (max.) - rounded: 1 A

Output voltage (nominal): 24 V DC

No. of outputs: 4 x

Connection: Screw terminal

Dim: (W x H x D) 45 x 75 x 91 mm

Weight: 140 g

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Manufacturer part #: PISA11.401

Content: 1 pc(s)

Width: 45 mm

Height: 75 mm

Max. temperature: +70 °C

Type: DIMENSION PISA11.401

Depth: 91 mm

Connections: Screw terminals

Output current (details): 4x 1 A

Output current (high): 4 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 513922 PULS PISA11.401 Overvoltage/overcurrent protector 24 V DC 1 A No. of outputs:4 x Content 1 pc(s)

Description

The PULS PISA11.401 protection module from the manufacturer's DIMENSION series fulfills two basic functions. First it distributes the current of a large power source to four lower current output channels and therefore allows for smallerwires to be used. The second function is to permit only so much current on the outputs that the input voltage of thisunit (which corresponds to the output voltage of the power supply) does not fall below 21V. This ensures a safe and an uninterrupted supply voltage for sensitive equipments, such as PLCs, controls or sensors, when they are connected directly to the same power supply as the
PISA module. Less critical loads that are not affected to short voltage interruptions or that could even be the cause of a fault on the 24V power supply are connected to one of the four current controlled output channels of the PISA module
