Buy PULS QS5.241 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

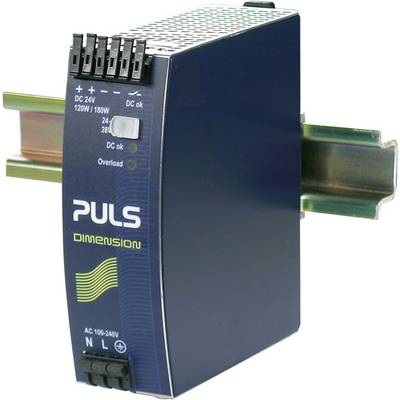

Industrial power supply PULS Dimension on a DIN rail, 120W/180W, DC 24V output, blue cover with 'Overload' label

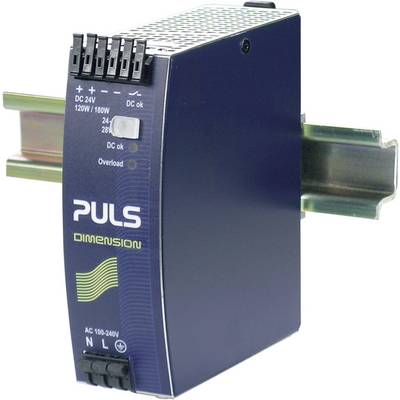

A blue switch-mode power supply by Puls for DIN rail mounting. Labelled with 'DC 24V', '120W/180W', 'Overload', 'Dimension'.

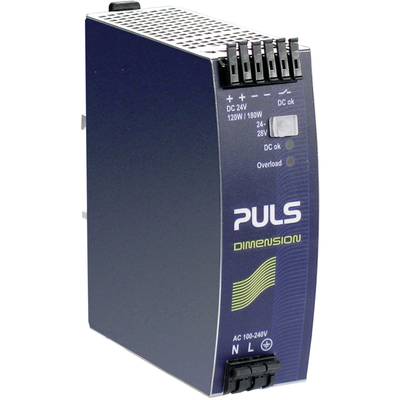

'Power supply unit PULS Dimension, 24V, 120W/180W, 24-28V, overload indicator and status LEDs on the front, AC 100-240V input.'

1/3

32 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 214.29 / piece)

€

Report legal concerns

Highlights & Details

PULS QS5.241 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

28 V DC/ 5 A
120 W
Input1 -phase
Input voltage range 88 - 264 V/AC, 85 - 360 V DC
Connection (components): Spring-loaded terminal

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC
88 - 360 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Input voltage: 88 - 264 V/AC, 85 - 360 V DC

Input voltage (max.): 240 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 120 W

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Spring-loaded terminal

Dim: (W x H x D) 40 x 124 x 117 mm

Weight: 620 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Manufacturer part #: QS5.241

Content: 1 pc(s)

Width: 40 mm

Height: 124 mm

Max. temperature: +70 °C

Type: DIMENSION QS5.241

Depth: 117 mm

: 120 W

Connections: Spring cage terminal

Output current (details): 5 A

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

PULS QS5.241 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:511294

This article

120 W

Spring-loaded terminal

240 V AC

24 V DC

115 V/AC

5 A

100 V AC

PULS QS3.241 Rail mounted PSU (DIN) 24 V DC 3.4 A 80 W No. of outputs:1 x Content 1 pc(s)

Item no:511292

80 W

Spring-loaded terminal

240 V AC

24 V DC

115 V/AC

3.4 A

100 V AC

PULS QS10.121 Rail mounted PSU (DIN) 12 V DC 15 A 180 W No. of outputs:1 x Content 1 pc(s)

Item no:511295

180 W

Spring-loaded terminal

240 V AC

12 V DC

115 V/AC

15 A

100 V AC

PULS QS10.241 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:511296

240 W

Spring-loaded terminal

240 V AC

24 V DC

115 V/AC

10 A

100 V AC

PULS QS10.481 Rail mounted PSU (DIN) 48 V DC 5 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:511297

240 W

Spring-loaded terminal

240 V AC

48 V DC

115 V/AC

5 A

100 V AC

PULS QT20.241 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:511298

480 W

Spring-loaded terminal

480 V AC

24 V DC

400 V/AC

20 A

380 V AC

PULS QS20.244 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:511338

480 W

Spring-loaded terminal

240 V AC

24 V DC

230 V/AC

20 A

100 V AC

PULS DIMENSION QS20.361 Rail mounted PSU (DIN) 36 V DC 13 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:511351

480 W

Spring-loaded terminal

240 V AC

36 V DC

115 V/AC

13 A

100 V AC

PULS QS20.481 Rail mounted PSU (DIN) 48 V DC 10 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:511352

480 W

Spring-loaded terminal

240 V AC

48 V DC

115 V/AC

10 A

100 V AC

PULS QT20.361 Rail mounted PSU (DIN) 36 V DC 13.3 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:511353

480 W

Spring-loaded terminal

480 V AC

36 V DC

400 V/AC

13.3 A

380 V AC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 511294 PULS QS5.241 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Conformity certificate

Conformity certificate 511294 PULS QS5.241 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Description

The PULS QS5.241 from the manufacturer's flagship Dimension Q-Series offers high efficiency and compact dimensions (40 x 124 x 117 mm), achieved through synchronous rectification and other groundbreaking design elements.

Thanks to 150% short-term peak power capability, large output capacitors, the Puls QS5.241 achieves performance above its 120 W wattage class in starting motors, charging capacitors and absorbing reverse energy.

PULS' QS5.241 DIN rail power supply can be used in nearly all environments thanks to its high immunity to transients and power surges and low electromagnetic emission. Installation and usage are made simple through the QS5.241's integrated output power manager, a wide range input voltage (88 - 264 V/AC, 85 - 360 V DC) and virtually no input inrush current. The dry DC-ok contact, green DC-ok LED and red overload LED make diagnostics easy.

PULS' quick-connect spring-clamp terminals make installation fast and safe and the QS5.241 has a large international approval package for a variety of applications.
