Buy PULS DIMENSION UB10.241 UB10.241 UPS switching module

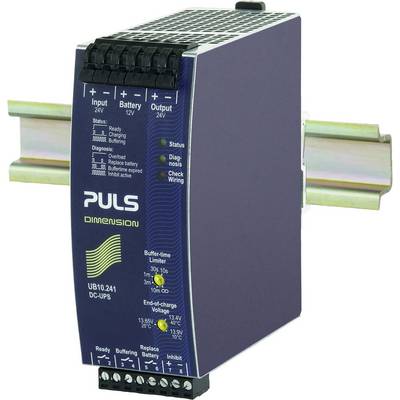

'Industrial DC UPS by Puls, Model UB10.241; Input 24V, Battery 12V, Output 24V; Status indicators and terminal connections visible.'

'PULS DIMENSION DC-UPS module mounted on a DIN rail. Shows input and output connections along with battery and power supply status indicators.'

'Switched-mode power supply by PULS Dimension for 24V or 12V battery. Displays input, battery, and output status. Model UB10.241.'

1/3

Fast track dispatch on Wed, 30 Sep

14 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 231.09 / piece)

€ 231.09

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DC UPS Control Unit CONTROL UNIT UB10.241

Battery management
Battery change signal
50% Power reserve

Technical specifications

Input voltage: 22.5 - 30 V DC

Product type: UPS switching module

No. of outputs: 1 x

Output: Spring-loaded terminal

Input voltage (max.): 30 V DC

Min. input voltage: 22.5 V DC

Output voltage (max.): 24 V DC

Output voltage (min.): 22.5 V DC

Dim: (W x H x D) 49 x 124 x 117 mm

Rechargeable battery capacity (details): 3.9 - 40 Ah

Connections: Spring cage terminal

of which battery-buffered: 1

Output current (details): 10 A

Weight: 530 g

Width: 49 mm

Height: 124 mm

Depth: 117 mm

Interfaces: none

Type: DIMENSION UB10.241

Features: Single battery storage system

Output voltage: 24 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 511334 PULS DIMENSION UB10.241 UB10.241 UPS switching module

Description

The control unit allows simple configuration of uninterrupting current supply with 24 V/DC-power supply (e.g.B. Pulse-DIMENSION series) and a UPS battery module. The UB10.241 has diverse protection-/service- and monitoring functions for reliable and long operation of all integrated components.
