Buy PULS DIMENSION UBC10.241 UBC10.241 UPS switching module

DIN rail power supply from Puls with battery pack, suitable for industrial applications. Shows connections, fuse and technical details.

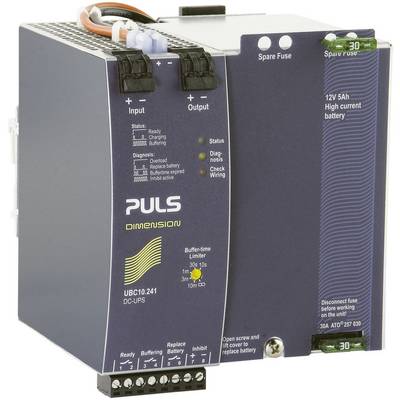

The image shows a blue PULS Dimension DC uninterruptible power supply (UPS) with input and output connections, along with status indicators for charge level and diagnostics.

1/2

Datasheet (PDF)

16 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 365.55 / piece)

€

Report legal concerns

Highlights & Details

DC-USV-control unit with integrated Battery UBC10. 241

Compact
Simple battery access

Technical specifications

Input voltage: 22.5 - 30 V DC

Product type: UPS switching module

No. of outputs: 1 x

Output: Spring-loaded terminal

Input voltage (max.): 30 V DC

Min. input voltage: 22.5 V DC

Output voltage (max.): 24 V DC

Output voltage (min.): 22.5 V DC

Dim: (W x H x D) 123 x 124 x 119 mm

Rechargeable battery capacity (details): 5 Ah

Connections: Spring cage terminal

of which battery-buffered: 1

Output current (details): 10 A

Weight: 2850 g

Width: 123 mm

Height: 124 mm

Depth: 119 mm

Interfaces: none

Type: DIMENSION UBC10.241

Features: Single battery storage system

Bridging time, max load: 375 s

Output voltage: 24 V DC

Documents & Downloads

Datasheet

Datasheet 511377 PULS DIMENSION UBC10.241 UBC10.241 UPS switching module

User & Safety Instructions

User & Safety Instructions 511377 PULS DIMENSION UBC10.241 UBC10.241 UPS switching module

Conformity certificate

Conformity certificate 511377 PULS DIMENSION UBC10.241 UBC10.241 UPS switching module

Security datasheet

Security datasheet 511377 PULS DIMENSION UBC10.241 UBC10.241 UPS switching module

Description

The control unit allows simple configuration of uninterrupting current supply with 24 V/DC-power supply (e.g.Puls DIMENSION-Series) The back-up battery is already installed. The UBC10.241 has diverse protection-/service- and Monitoring functions for reliable and long operation of all integrated components.
