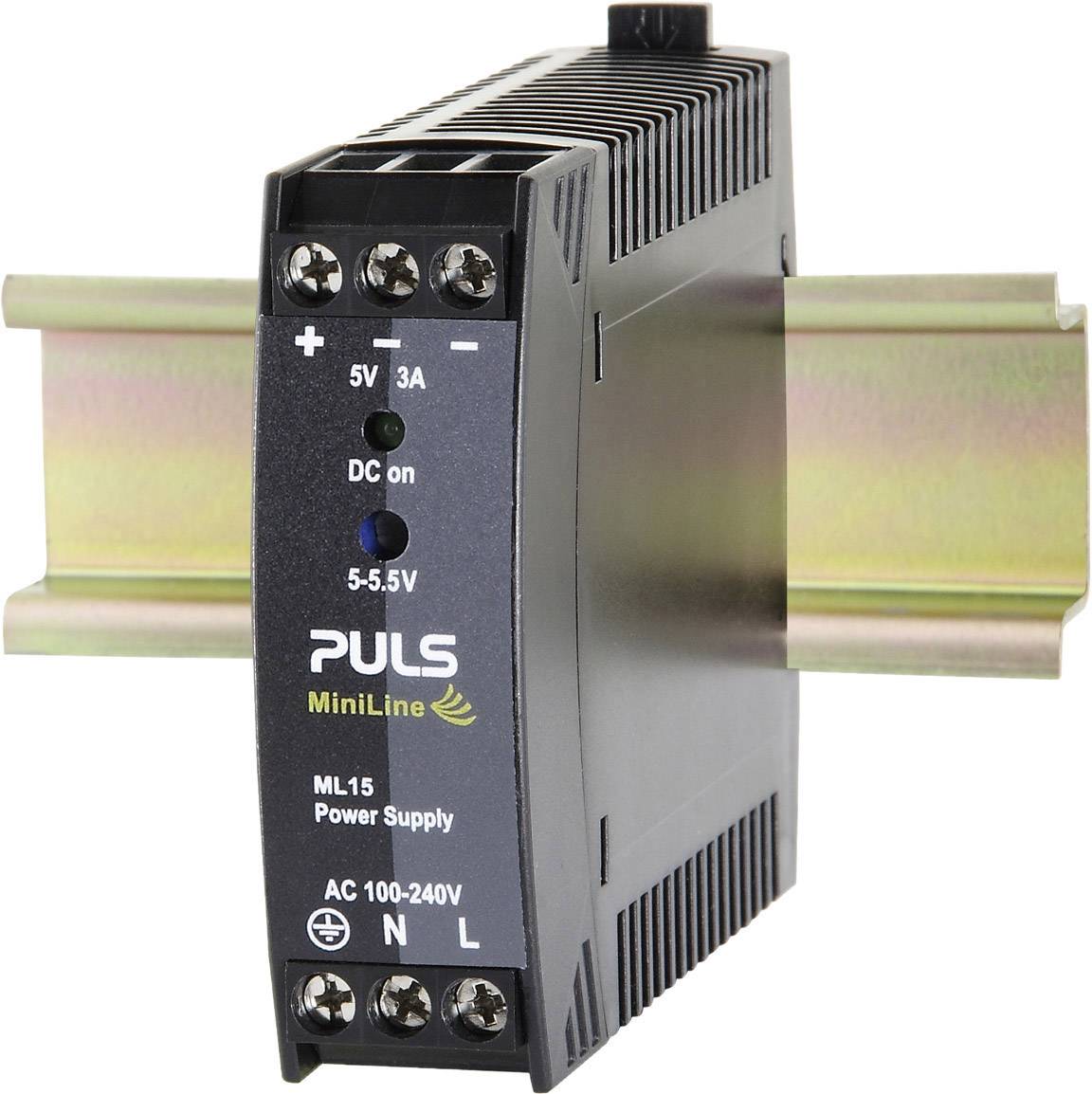

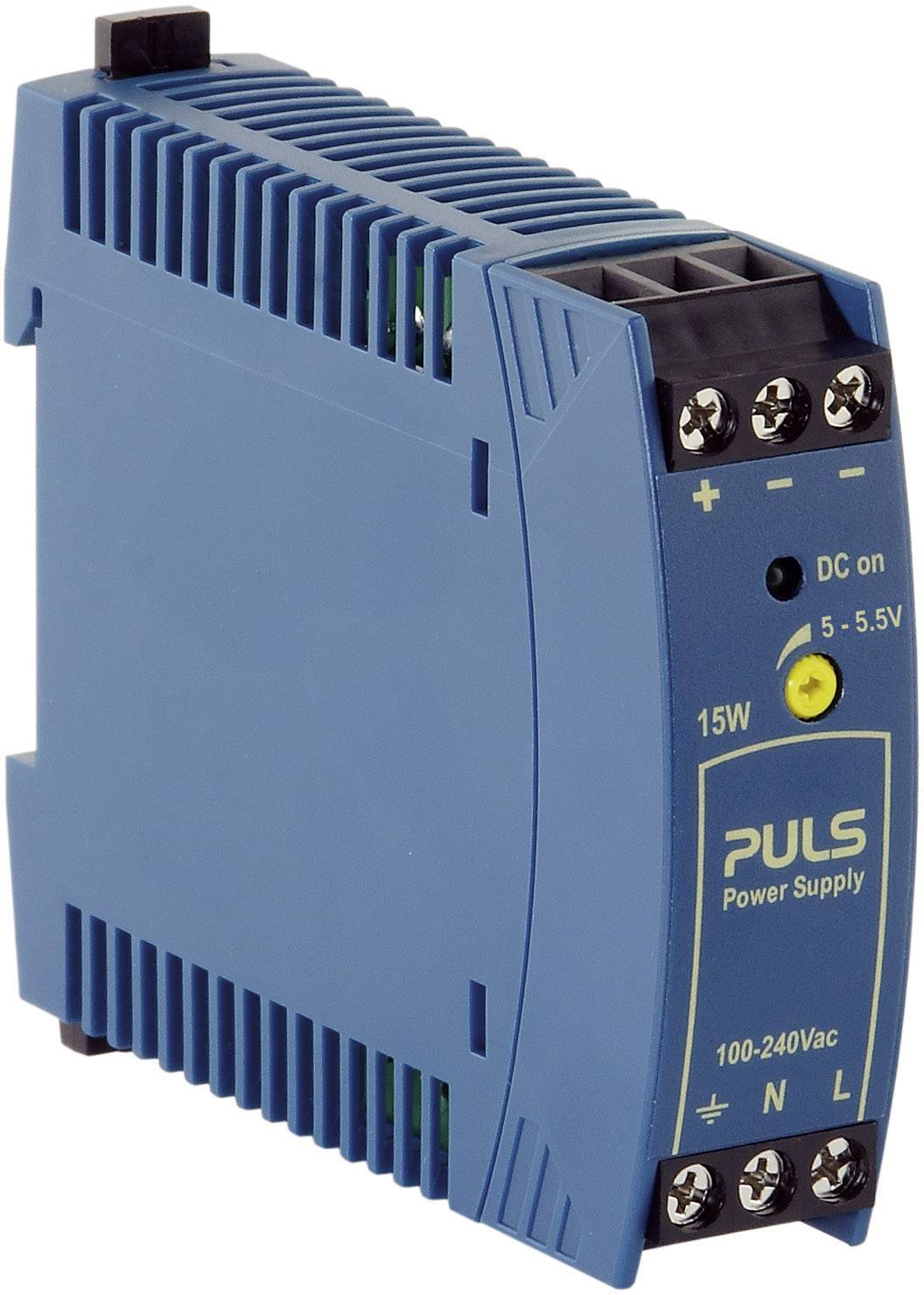

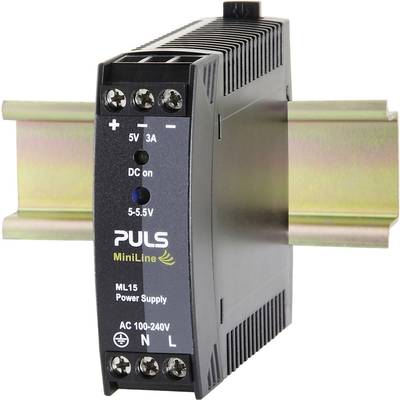

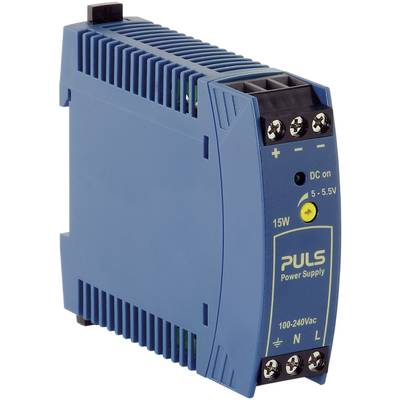

PULS ML15.051 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Highlights & Details
PULS ML15.051 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
- 5.5 V DC / 3 A;15 W
- Input 1-phase
- Input voltage range 85 - 264 V/AC, 85 - 375 V DC;Connection (components): Screw terminal
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
85 - 375 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
5 V DC
- Input voltage
85 - 264 V/AC, 85 - 375 V DC
- Input voltage (max.)
375 V AC
- Max. output current
3 A
- Output current (max.) - rounded
3 A
15 W
- Phases
1
- Output voltage (nominal)
5 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H x D) 23 x 75 x 91 mm
- Weight
130 g
- Output voltage (max.)
5.5 V DC
- Output voltage (min.)
5 V DC
- Manufacturer part #
ML15.051
- Content
1 pc(s)
- Width
23 mm
- Height
75 mm
- Max. temperature
+70 °C
- Type
MiniLine ML15.051
- Depth
91 mm
15 W
- Connections
Screw terminals
- Output current (details)
3 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 511317 PULS ML15.051 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions 511317 PULS ML15.051 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 511317 PULS ML15.051 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
Description
The PULS ML15.051 belongs to the manufacturer's MiniLine series, which covers lower power requirements in the range from 15W to 100W, the ML15.051 providing 15W. This MiniLine power supply has a rugged plastic housing, is highly efficient and compact at 23 mm x 75 mm x 91 mm. The PULS ML15.051 takes just seconds to install and offers superb reliability.
Features
- Screw terminal
- Robust plastic housing
