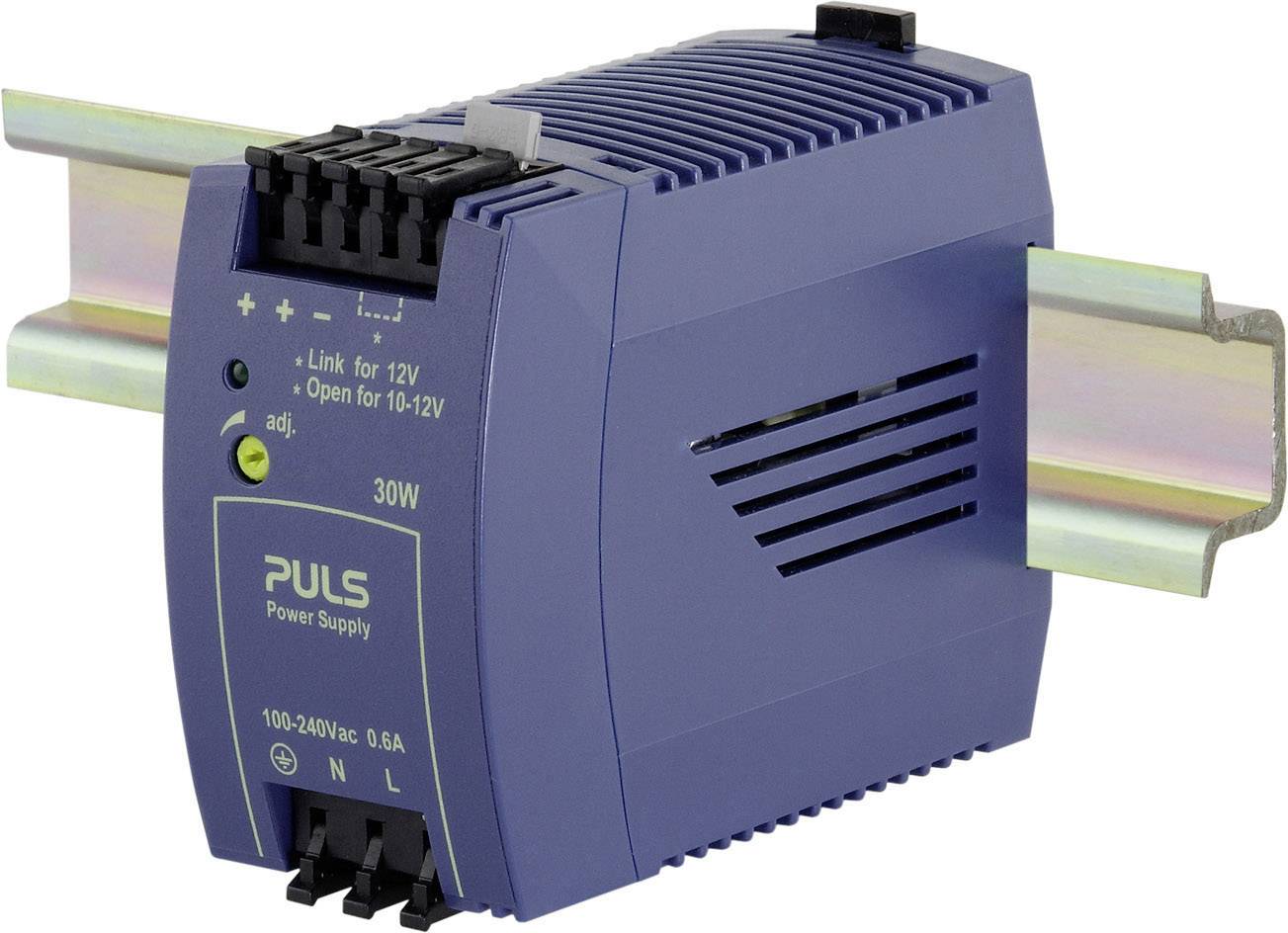

PULS ML30.102 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
14-day return policy included
Highlights & Details
PULS ML30.102 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)
- 12 V DC / 2.5 A;30 W
- Input 1-phase
- Input voltage range 85 - 264 V/AC, 85 - 375 V DC;Connection (components): Spring-loaded terminal
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
85 - 375 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
12 V DC
- Input voltage
85 - 264 V/AC, 85 - 375 V DC
- Input voltage (max.)
264 V AC
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
30 W
- Phases
1
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Connection
Spring-loaded terminal
- Dim
(W x H x D) 45 x 75 x 91 mm
- Weight
250 g
- Output voltage (max.)
12 V DC
- Output voltage (min.)
10 V DC
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-10 °C
- Manufacturer part #
ML30.102
- Content
1 pc(s)
- Width
45 mm
- Height
75 mm
- Max. temperature
+70 °C
- Type
MiniLine ML30.102
- Depth
91 mm
30 W
- Connections
Spring cage terminal
- Output current (details)
2.5 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 511262 PULS ML30.102 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions 511262 PULS ML30.102 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 511262 PULS ML30.102 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)
Description
The PULS ML30.102 belongs to the manufacturer's MiniLine series, which covers lower power requirements in the range from 15W to 100W, the ML30.102 providing 30W. This MiniLine power supply has a rugged plastic housing, is highly efficient and compact at 45 mm x 75 mm x 91 mm. The PULS ML30.102 takes just seconds to install and offers superb reliability.
Features
- Spring-loaded connecting terminals
- Robust plastic housing
- World-wide approvals (UL, EN, CSA, CB Scheme) for industry and office/home
