PULS ML50.100 Rail mounted PSU (DIN) 24 V DC 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)
Highlights & Details
- 28 V DC / 2.1 A;50 W
- Input 1-phase
- Input voltage range 85 - 264 V/AC, 85 - 375 V DC;Connection (components): Spring-loaded terminal
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
85 - 375 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Input voltage
85 - 264 V/AC, 85 - 375 V DC
- Input voltage (max.)
264 V AC
- Max. output current
2.1 A
- Output current (max.) - rounded
2.1 A
50 W
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Spring-loaded terminal
- Dim
(W x H x D) 45 x 75 x 91 mm
- Weight
240 g
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Manufacturer part #
ML50.100
- Content
1 pc(s)
- Width
45 mm
- Height
75 mm
- Max. temperature
+70 °C
- Type
MiniLine ML50.100
- Depth
91 mm
50 W
- Connections
Spring cage terminal
- Output current (details)
2.1 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 511280 PULS ML50.100 Rail mounted PSU (DIN) 24 V DC 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions 511280 PULS ML50.100 Rail mounted PSU (DIN) 24 V DC 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 511280 PULS ML50.100 Rail mounted PSU (DIN) 24 V DC 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)
Description

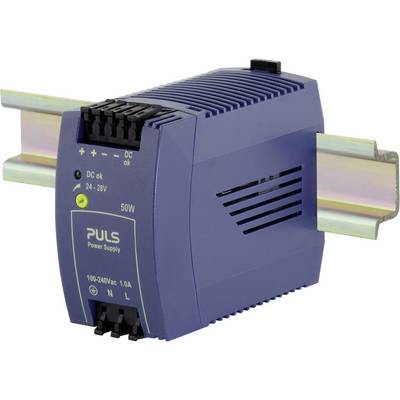

The PULS ML50.100 belongs to the manufacturer's MiniLine series, which covers lower power requirements in the range from 15W to 100W, the ML50.100 providing 50W. This MiniLine power supply has a rugged plastic housing, is highly efficient and compact at 45 mm x 75 mm x 91 mm. The PULS ML50.100 takes just seconds to install and offers superb reliability.
Features
- Spring-loaded connecting terminals
- Robust plastic housing
- World-wide approvals (UL, EN, CSA, CB Scheme) for industry and office/home
